Remove/install starter - AR15.30-P-7100MCU
ENGINE 132.910 in MODEL 451.3 /4
| Remove/install | |||
| 1 | Disconnect ground line of battery | AR54.10-P-0003MCC | |
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Raise vehicle with vehicle lift | ||

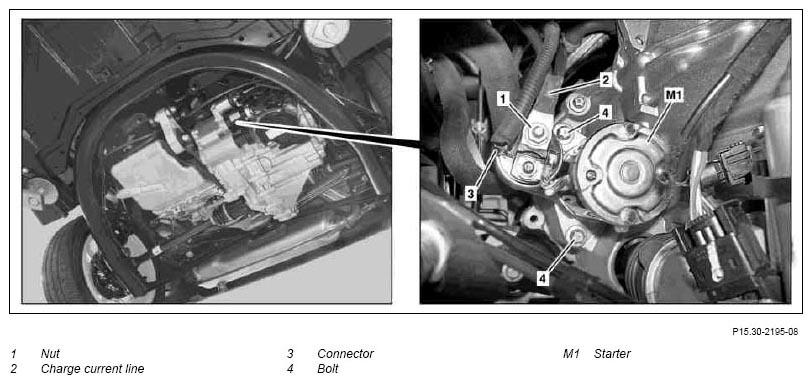

| 3 | Unscrew nut (1) and remove charge current line (2) from starter (M1) | *BA15.30-P-1002-01E | |
| 4 | Pull out plug (3) on starter (M1) | ||
| 5 | Remove bolts (4) and remove starter (M1) from transmission | *BA15.30-P-1001-01E | |
| 6 | Install in the reverse order |
STARTER
| Number | Designation | Engine 132.9 | |
|---|---|---|---|
| BA15.30-P-1001-01E | Bolt, starter to transmission | Nm | 42 |
| BA15.30-P-1002-01E | Cable on starter terminal 30 | Nm | 10 |
