Component description for crankshaft position sensor - GF07.04-P-6010MCC

ENGINE 132.9 in MODEL 451.3 /4

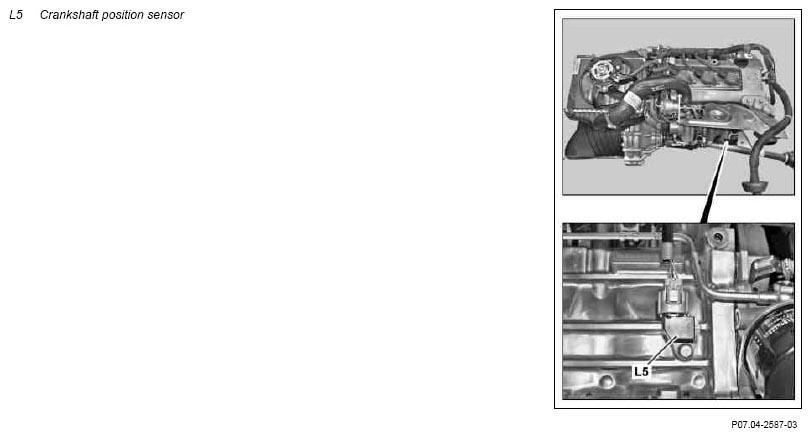

Fig 1: Identifying Crankshaft Position Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The crankshaft position sensor is located at the bottom right on the cylinder crankcase.

Task

The crankshaft position sensor detects the crankshaft position and motor speed.

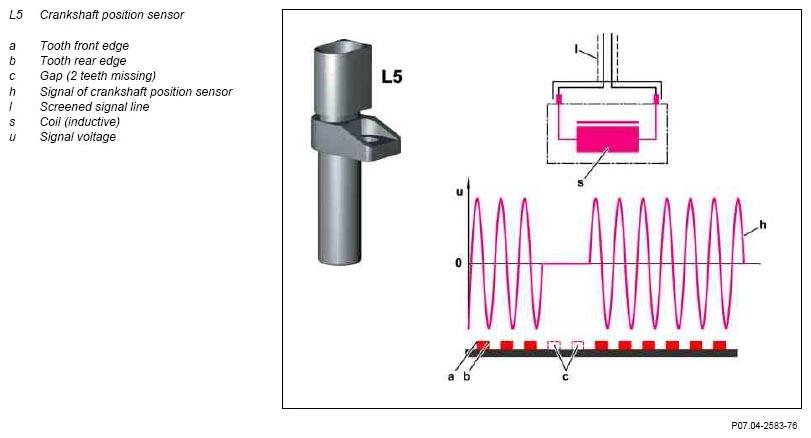

Fig 2: Identifying Crankshaft Position Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function

The front edge of a tooth on the clutch plate generates a positive voltage pulse and the rear edge generates a negative one.

The distance from the positive to the negative voltage peak corresponds to the length of a tooth.

The gap produced by 2 missing teeth results in no voltage being generated in the crankshaft position sensor. This gap is used for detecting the TDC position of cylinder 1.

The distance between the crankshaft position sensor and the teeth of the drive plate is specified by the installation position.
