Remove/install ignition coils - AR15.12-P-2003MCU
ENGINE 132.910 in MODEL 451.3/4
| Remove/install | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not come into contact with parts that are under high voltage. Persons who have electronic implants (e.g. pacemakers) must not perform any work on the ignition system. | AS15.10-Z-0001-01A | |
| 1 | Withdraw ignition key | ||
| 2 | Remove interior flap above engine | AR88.40-P-1100-03MCC | |

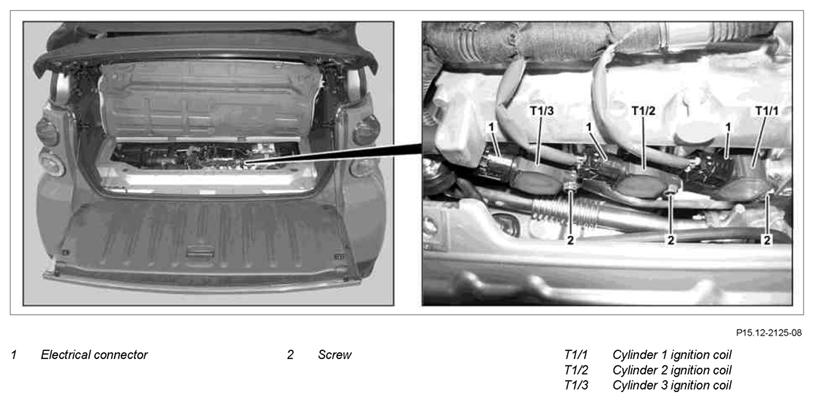

| 3 | Unlock electrical connector (1) at respective ignition coil (T1/1, T1/2, T1/3) and disconnect | ||
| 4 | Remove bolt (2) respective ignition coil (T1/1, T1/2, T1/3) | *BA15.12-P-1003-01G | |
| 5 | Remove ignition coils (T1/1, T1/2, T1/3) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC |
ECI IGNITION SYSTEM
| Number | Designation | ENGINE 132.9 | |
|---|---|---|---|
| BA15.12-P-1003-01G | Bolt of ignition coil module to cylinder head | Nm | 10 |
