Remove/install injection system control unit - AR07.08-P-7008MCU
ENGINE 132.910 in MODEL 451.3/4
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Turn off ignition | ||
| 2 | Remove right side paneling in trunk | AR68.30-P-4800MCU | |

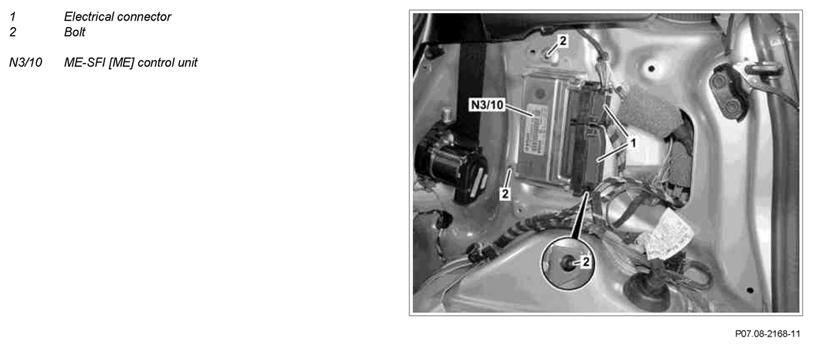

| 3 | Release and disconnect electrical connectors (1) | ||
| 4 | Remove bolts (2) and ME-SFI [ME] control unit (N3/10) | ||
| 5 | Install in the reverse order | ||
| 6 | Flash ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | AR54.21-P-0012MCU |
