Remove/install throttle valve actuator - AR07.61-P-1401MCU

ENGINE 132.910 in MODEL 451.3/4

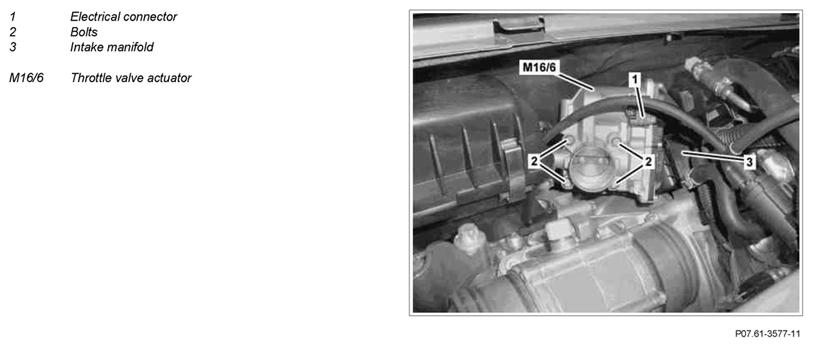

Fig 1: Identifying Throttle Valve Actuator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove resonance tank		AR09.20-P-0010MCU
2	Disconnect electrical connector (1) at throttle valve actuator (M16/6)
3	Remove bolts (2)		*BA07.61-P-1003-01B
4	Remove throttle valve actuator (M16/6) from intake manifold (3)	: Replace seal between the throttle valve actuator (M16/6) and the intake manifold (3).
5	Install in the reverse order
6	Read out fault memory, erase if necessary	When throttle valve actuator valve is replaced (M16/6).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04MCC

ME-SFI [ME] GASOLINE INJECTION AND IGNITION SYSTEM

Number	Designation		ENGINE 132.9
BA07.61-P-1003-01B	Bolt, throttle valve actuator to intake manifold/charge air manifold	Nm	9
