Check starter - AP15.30-P-1550AA

ENGINE 276 in MODEL 212.095/195, 222.057/157

ENGINE 651 in MODEL 205.012/212, 212.098/298, 222.004/104

Shown on engine 651.9

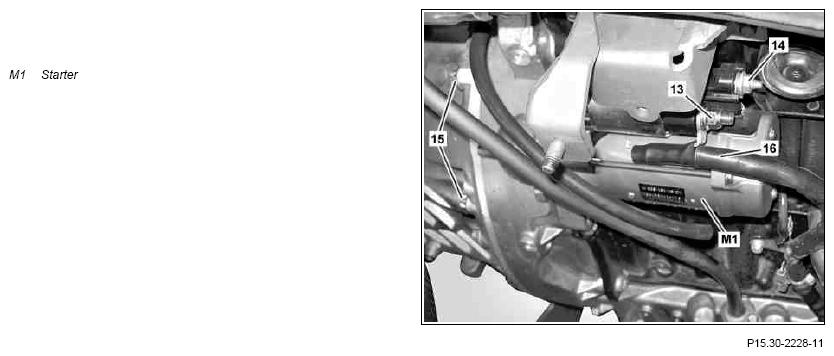

Fig 1: Identifying Starter - Shown On Engine 651.9

Courtesy of MERCEDES-BENZ USA

	Check
1	Connect diagnostic system
		MODEL 205, 222	AD00.00-P-2000-04B
		MODEL 212	AD00.00-P-2000-04A
2	Check number of engine starts by starter (M1) using diagnostic system	The test is called up as follows in the diagnostic system: Quick test view ME-SFI for internal combustion engine Special processes Starter Check "number of engine starts". If the test returns a "Do not replace starter" result: ↓ Return to quick test view and close diagnostic system. If the test returns a "Replace starter" result: ↓ Continue to process the instructions issued by the diagnostic system, subject to separate repair order
