Remove//Install electronic accelerator - AR30.20-P-2000MCC
MODEL 451.3##/4## 1# with CODE (LHD) Left-hand drive vehicle
| Remove/install | |||
| 1 | Adjust driver's seat to the rear | ||

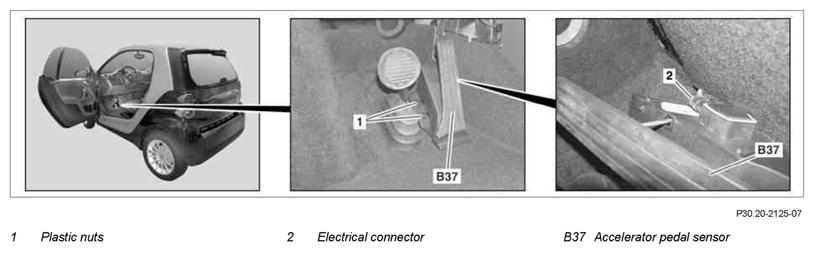

| 2 | Unscrew plastic nuts (1) on accelerator pedal sensor (B37) | ||
| 3 | Lay accelerator pedal sensor (B37) to one side until electrical connector (2) is accessible | ||
| 4 | Separate electrical connector (2) at accelerator pedal sensor (B37) | ||
| 5 | Install in the reverse order | ||
| 6 | Check function of the accelerator pedal sensor (B37) and delete fault memory if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC |
