Remove/install intake manifold pressure sensor - AR07.04-P-0100MCU

ENGINE 132.910 in MODEL 451.3/4

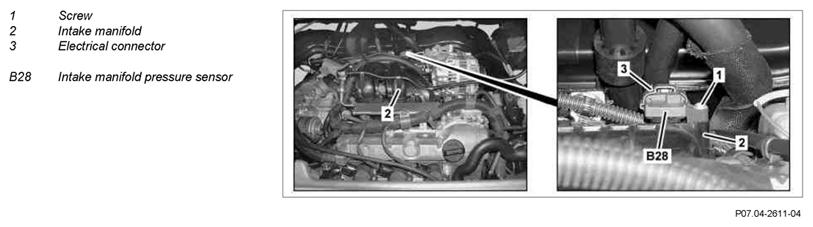

Fig 1: Identifying Intake Manifold Pressure Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Release rear drive module		AR01.00-P-3050MCU
2	Unscrew bolt (1).
3	Remove intake manifold pressure sensor (B28) from intake manifold (2) and disconnect electrical connector (3)		: Check sealing ring on intake manifold pressure sensor (B28); replace if necessary.
4	Install in the reverse order
5	Read out fault memory, erase if necessary	When replacing Intake manifold pressure sensor (B28).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04MCC
