Remove/Install Intake Manifold Pressure Sensor - AR07.04-P-0100SR

ENGINE 281 in MODEL 453

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Lower rear drive module		AR01.00-P-3050SR

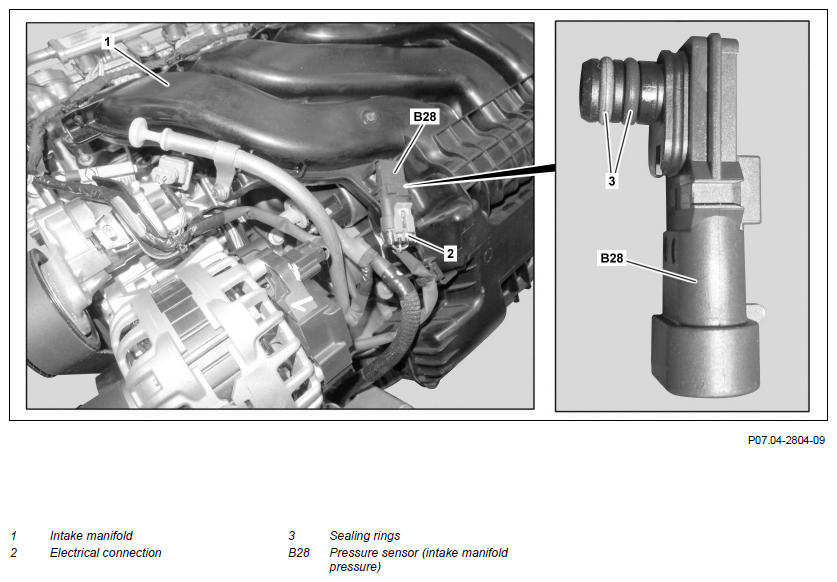

2	Disconnect electrical connection (2) from (intake manifold pressure) pressure sensor (B28)
3	Pull (intake manifold pressure) pressure sensor (B28) out of the intake manifold (1)	Check sealing rings (3) on (intake manifold pressure) pressure sensor (B28). If damage is present: ↓ Replace sealing rings (3).
4	Install in the reverse order
5	Connect diagnostic unit, read out fault memory Connect diagnostic unit, read out fault memory	When replacing the (intake manifold pressure) pressure sensor (B28).	AD00.00-P-2000-06SR
