HITACHI Single Breaker Point Distributors: Overhaul: Disassembly

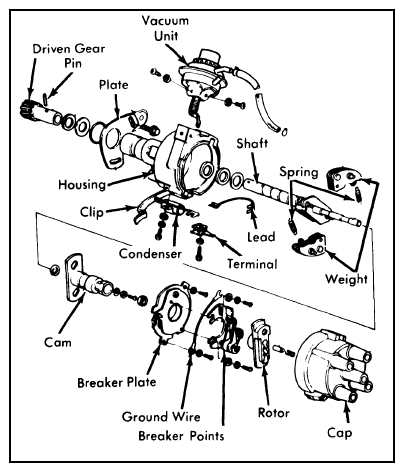

Disassemble distributor using illustration as a guide. See Figure. Mark position of driven gear (or coupling) on shaft for reassembly reference. Note position of cam, springs and weights on distributor shaft.
