Steering Columns: Overhaul: Disassembly: Inspection

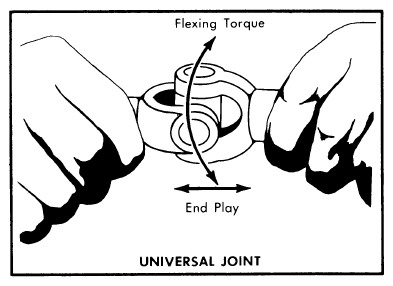

- Universal joint should have no play in any direction. Replace if any play exists. Flex universal joint and check for binding. Replace if torque required to flex joint exceeds 0.43 ft.lbs. (0.06 mkg). Check plastic washer for damage, and serration for wear.
Courtesy of SUBARU OF AMERICA, INC.
- Check length and run-out of steering shaft. Shaft length should be 33.12 - 33.20" (841.3 - 843.3 mm). Shaft run-out should be less than 0.02" (0.6 mm). Replace shaft if not within specifications, or if inspection shows any shaft damage. Check upper and lower steering column bearings for wear or damage and replace if necessary.
