Wiring Diagrams: Wiring Diagram

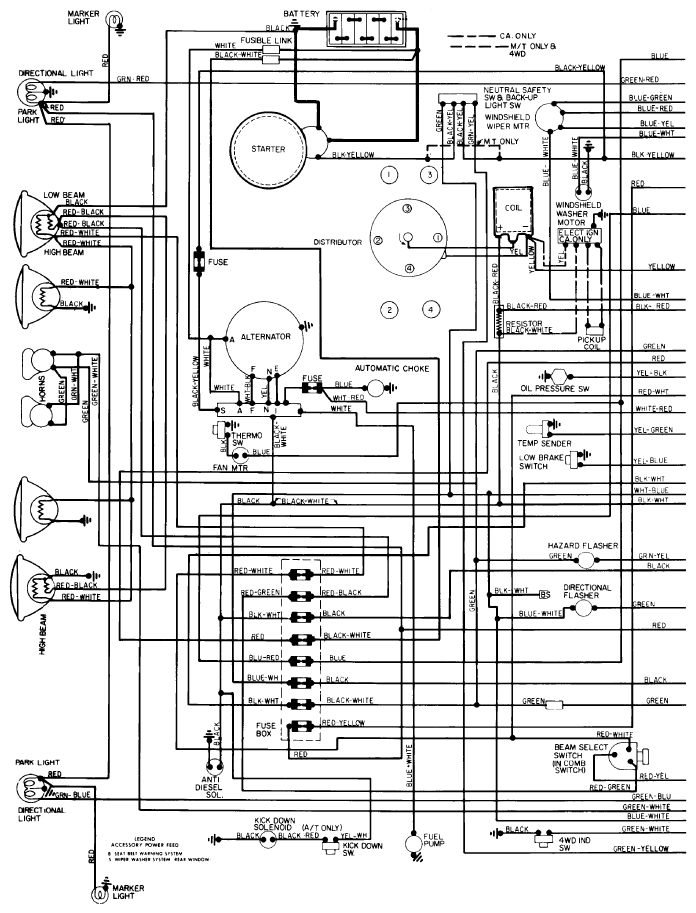

Fig 1: Wiring Diagram - 1600 & BRAT (1 of 2)
G09303571Courtesy of SUBARU OF AMERICA, INC.

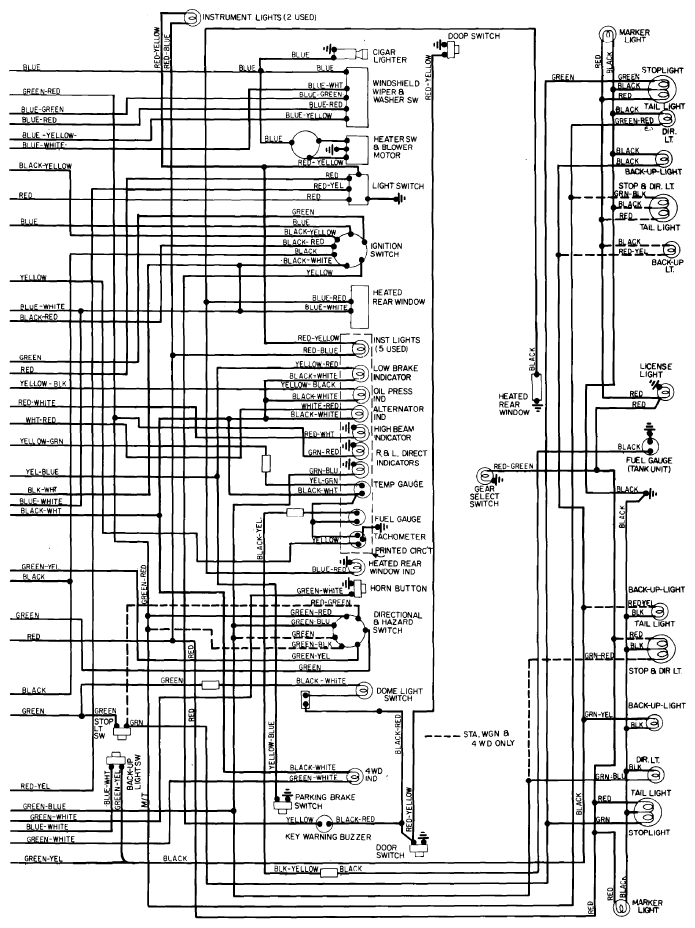

Fig 2: Wiring Diagram - 1600 & BRAT (2 of 2)
G09303572Courtesy of SUBARU OF AMERICA, INC.
