Pick-Up Coil Check

Turn ignition off. Remove ignition unit. Measure resistance between both pick-up coil terminals. See Fig 1. If ohmmeter reads approximately 400 ohm, pick-up coil is okay. If not, replace faulty pick-up coil.

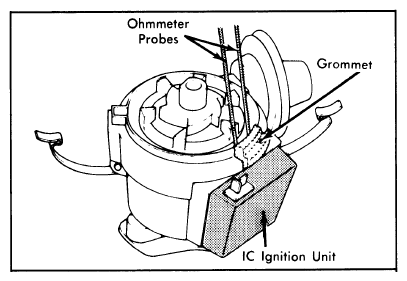

Fig 1: 1979 Datsun Pick-Up Coil Resistance Check (Others Similar)

Courtesy of NOT AVAILABLE
