1979 Models

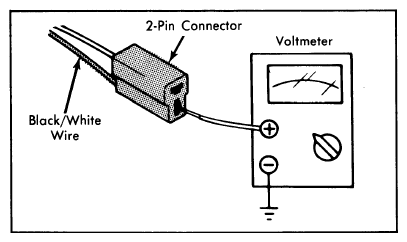

- Turn ignition off. Disconnect ignition unit 2-pin connector from unit. Turn ignition on. Connect negative lead of voltmeter to ground and positive lead to Black/White wire terminal of connector. See Fig 1.
- Measure voltage and turn ignition off. If battery voltage is shown, but engine will not start, proceed to PRIMARY CIRCUIT CHECK . If battery voltage is not shown, check battery, wiring, fusible link, ignition switch and connectors for condition and continuity.
