HITACHI Alternators: Specifications

OUTPUT@2500 ALTERNATOR RPM

Alternator

Amps

Volts

LT135-30

28

14

LR135-44

27.5

14

LR138-01

30

14

LT150-21

40

14

LR150-49

40

14

LR150-51

40

14

LR150-53

40

14

LR160-42B

60⁽¹⁾

14

LR160-46

45

14

LR160-47

45

14

⁽¹⁾	Output at 5000 RPM.

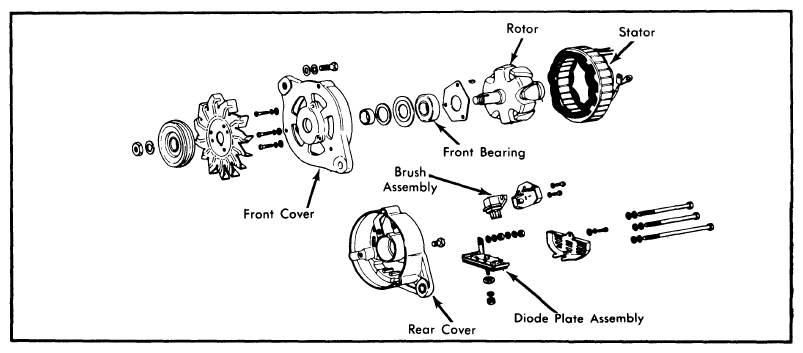

Fig 1: Disassembled View of Typical Hitachi Alternator

G09319943

Courtesy of NOT AVAILABLE

NOMINAL OUTPUT

Alternator	Amps	Volts
LT135-30	35	12
LR135-44	35	12
LR138-01	38	12
LT150-21	50	12
LR150-49	50	12
LR150-51	50	12
LR150-53	50	12
LR160-42B	60	12
LR160-46	60	12
LR160-47	60	12
