HITACHI Regulator: Adjustment
NOTE:
Charge relay is adjusted in same manner as voltage regulator.

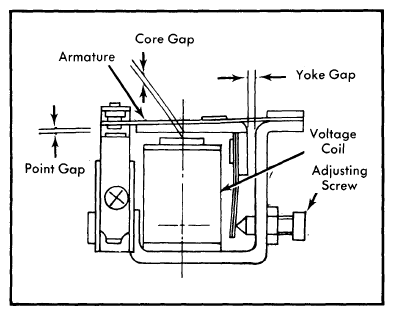

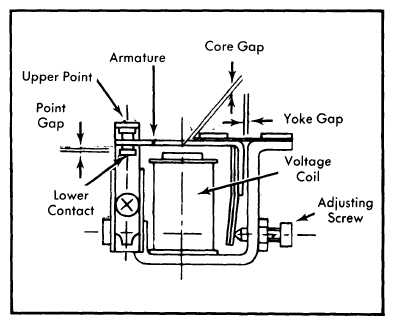

- Disconnect and remove voltage regulator from vehicle. If contact points are roughened, smooth with fine sandpaper. Check and adjust core gap first, then point gap. Yoke gap adjustment may be unnecessary on some models.
- Adjust core gap by loosening screws attaching contact set to yoke. Move contact set upward or downward as required. Adjust point gap by loosening screw attaching upper contact. Move upper contact up or down as required to set gap to specification.
- Adjust regulated voltage by means of adjusting screw. Turn screw in to increase regulated voltage or out to decrease voltage. When correct voltage adjustment is obtained, secure with lock nut. When adjustment procedure is complete, reinstall regulator and perform on car check.
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
VOLTAGE REGULATOR SPECIFICATIONS
| Regulator |
Battery Voltage |
Regulated Voltage |
Voltage Coil Resistance (Ohms) |
Yoke Gap In. (mm) |
Core Gap In. (mm) |
Point Gap In. (mm) |
| TLIZ-87 |
12 |
13.8-14.8 |
10.3 |
|
.024-.039 (.6-1.0) |
.012-.016 (.3-.4) |
| TLIZ-94 |
12 |
14.0-15.0 |
10.3 |
.035 (.9) |
.024-.039 (.6-1.0) |
.012-.016 (.3-.4) |
VOLTAGE RELAY SPECIFICATIONS
| Regulator |
Released Voltage |
Voltage Coil Resistance (Ohms) |
Yoke Gap In. (mm) |
Core Gap In. (mm) |
Point Gap In. (mm) |
| TLIZ-87 |
5 |
31.9 |
|
.032-.039 (.8-1.0) |
.016-.024 (.41-.61) |
| TLIZ-94 |
8-10 |
31.9 |
.035 (.9) |
.032-.039 (.8-1.0) |
.016-.024 (.41-.61) |
