Electronically Controlled Carburetor: Testing

The system is tested by following a logical sequence to determine which components are inoperative, The procedure begins with the first test chart, which will direct the technician to the proper procedure. The following items are necessary for testing:

Fig 1: Electronically Controlled Carburetor System Components

Courtesy of SUBARU OF AMERICA, INC.

• Dwell Meter set on 4 cylinder scale
• Volt-Ohmmeter
• 1.5V Flashlight Battery
• Stethoscope or listening tube

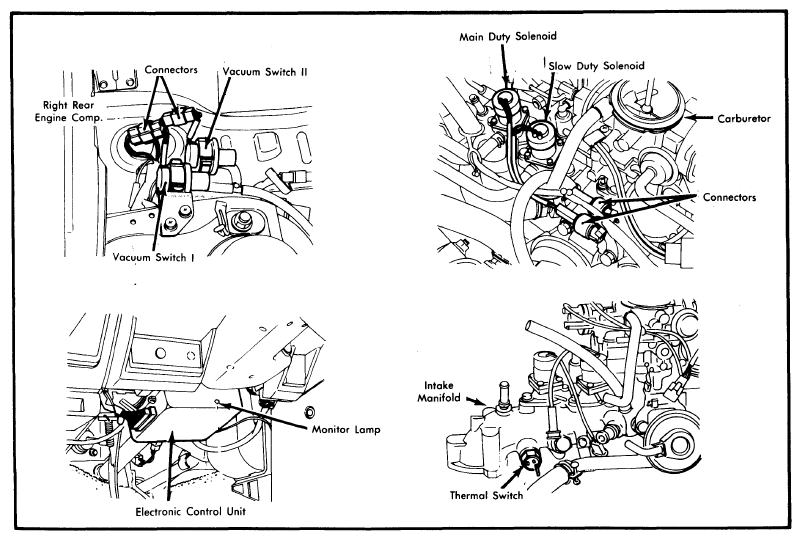

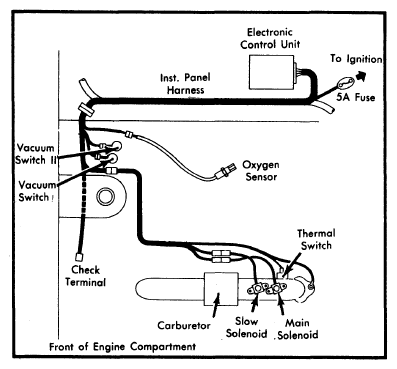

  Fig 2: Component Locations

  Courtesy of SUBARU OF AMERICA, INC.

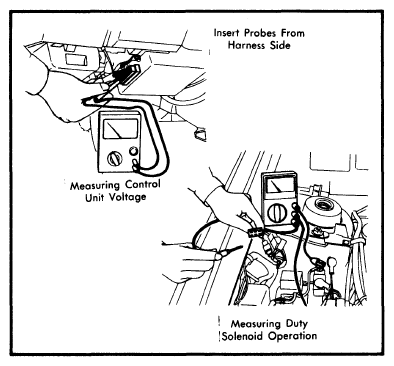

Fig 3: FCC System Electrical Test Connections

Courtesy of SUBARU OF AMERICA, INC.

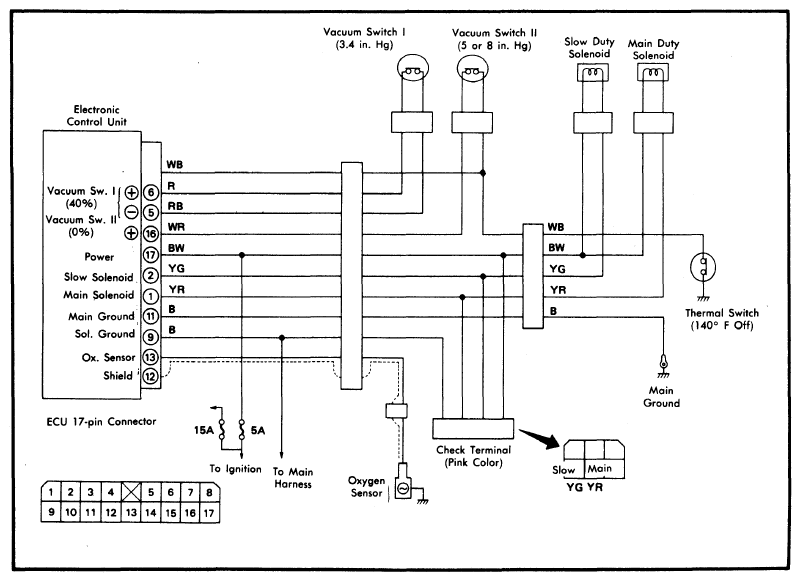

Fig 4: ECC System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

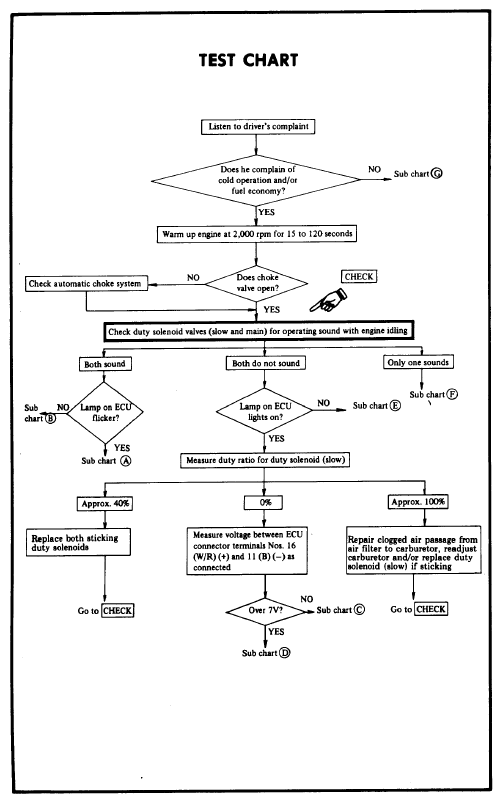

Fig 5: Test Chart

Courtesy of SUBARU OF AMERICA, INC.

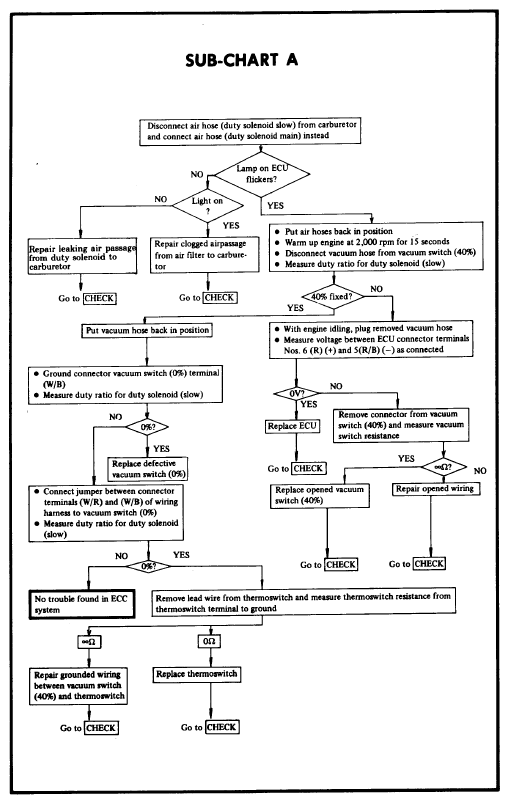

Fig 6: Sub-Chart A

Courtesy of SUBARU OF AMERICA, INC.

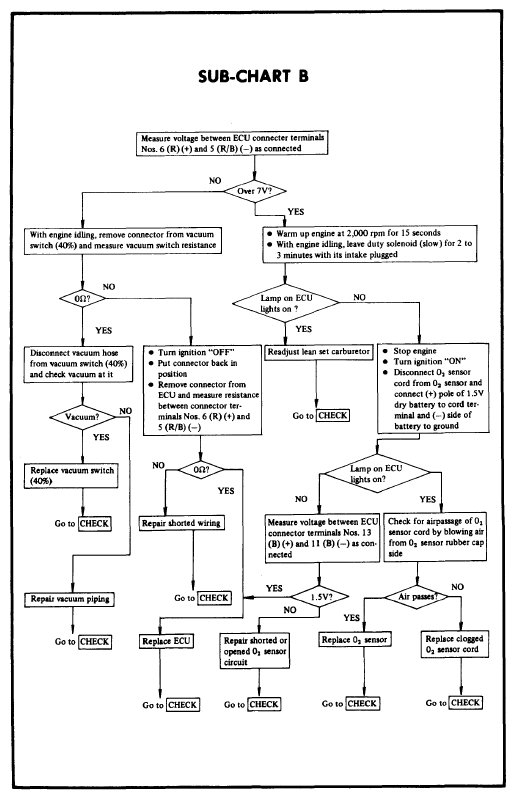

Fig 7: Sub-Chart B

Courtesy of SUBARU OF AMERICA, INC.

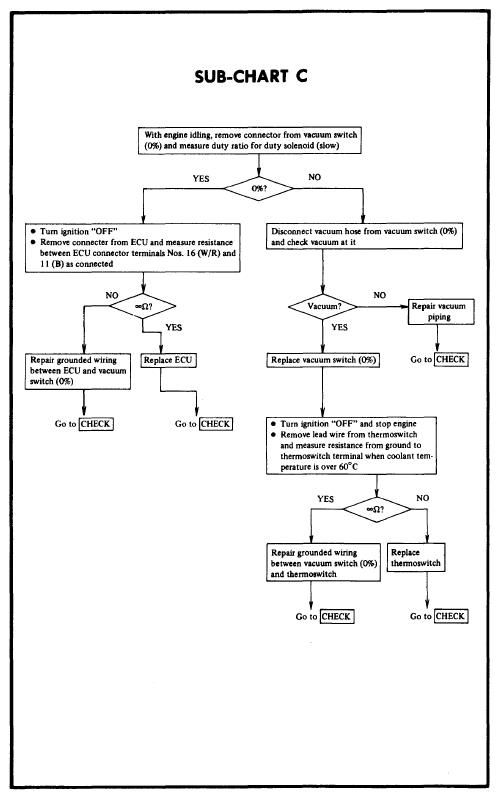

Fig 8: Sub-Chart C

Courtesy of SUBARU OF AMERICA, INC.

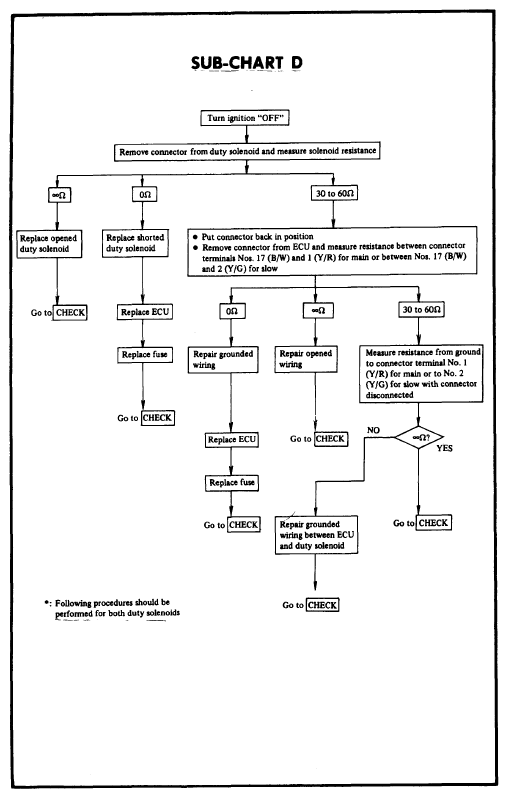

Fig 9: Sub-Chart D

Courtesy of SUBARU OF AMERICA, INC.

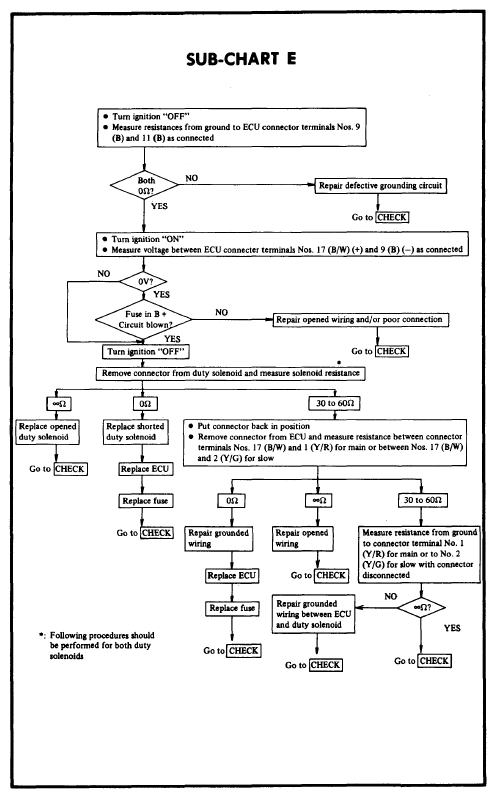

Fig 10: Sub-Chart E

Courtesy of SUBARU OF AMERICA, INC.

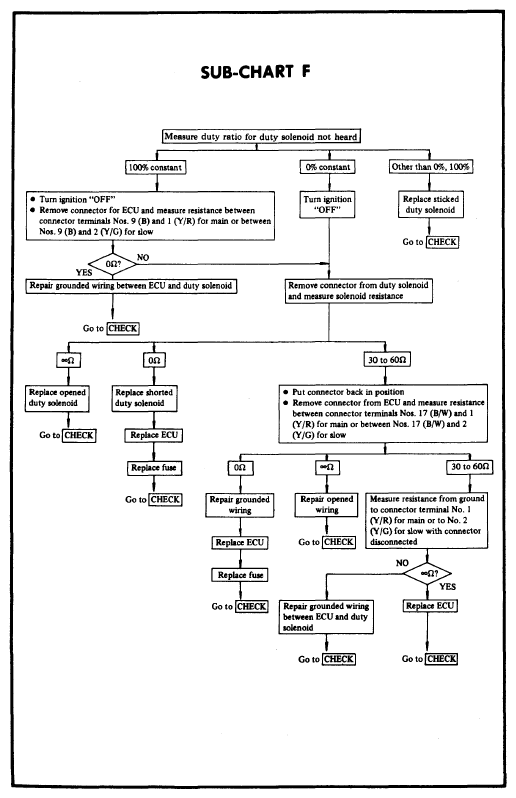

Fig 11: Sub-Chart F

Courtesy of SUBARU OF AMERICA, INC.

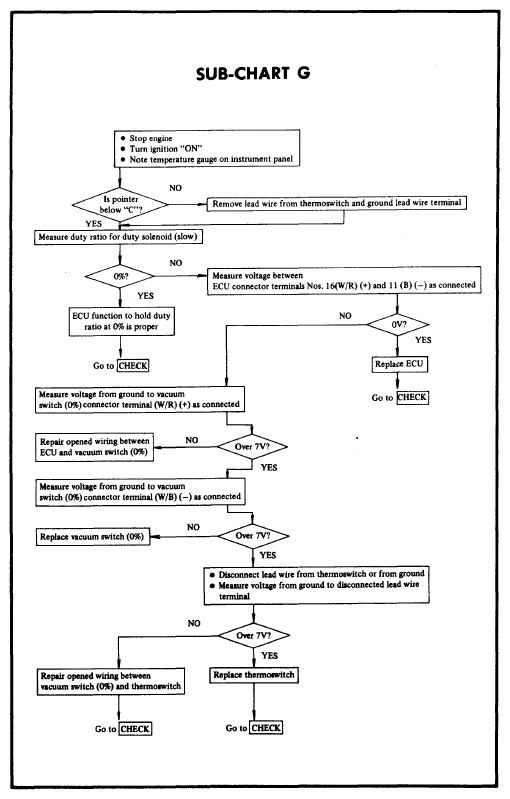

Fig 12: Sub-Chart G

Courtesy of SUBARU OF AMERICA, INC.
