Wiper/Washer Systems: Testing

NOTE: Testing procedures were not available from manufacturer.

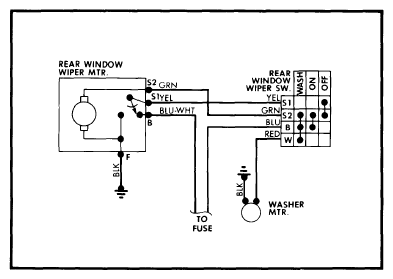

Fig 1: Subaru Rear Wiper/Washer Wiring Diagram
G09323046Courtesy of SUBARU OF AMERICA, INC.
