Evaporative Emissions System: Maintenance

Check evaporative emission system for damage or clogged lines, defective valves or carbon canister every 30 months or 30, 000 miles. Repair or replace components as necessary.

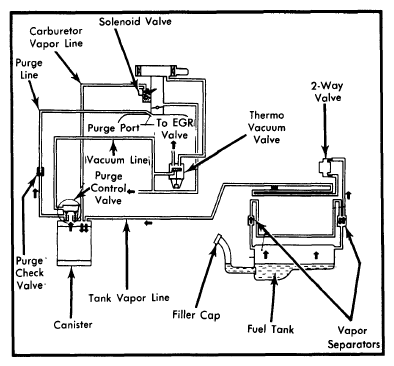

Fig 1: Subaru Evaporative Emission Control System

Courtesy of SUBARU OF AMERICA, INC.

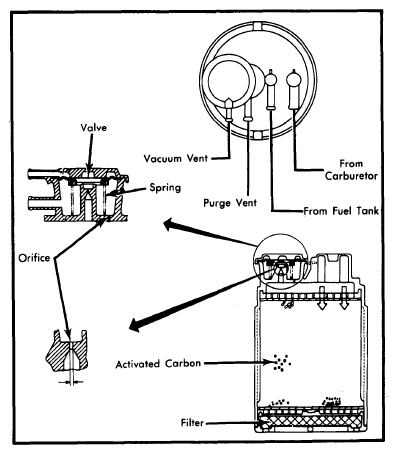

Fig 2: Carbon Canister

Courtesy of SUBARU OF AMERICA, INC.
