1600 Engines

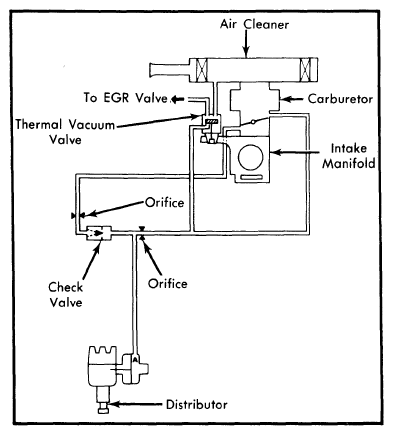

When intake manifold temperature is between 59-95° F (15-35° C), the thermal vacuum valve opens the distributor lines to atmosphere. No advance is applied. When the engine is operating above or below these temperatures, vacuum is applied through the check valve and obtained at a below-throttle vacuum port (with engine idling) or applied through orifice and obtained at an above-throttle vacuum port (engine above idle).
