Air Injection System: Testing

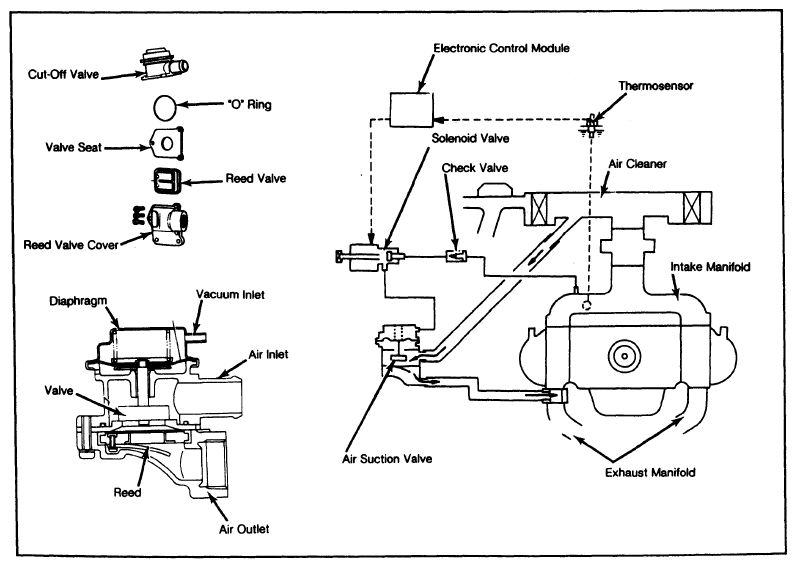

Remove the air suction/cut-off valve. Remove three screws attaching cut-off valve assembly to reed valve. Apply vacuum to the cut-off valve diaphragm to determine if the valve is functioning normally. Check the reed valve for cracks or other damage. Reassemble the 2 valves and reinstall.
