Crankcase Ventilation Systems: Maintenance

Every 30 months/30, 000 miles, check all hoses and connections for leakage or deterioration and replace PCV valve and air cleaner.

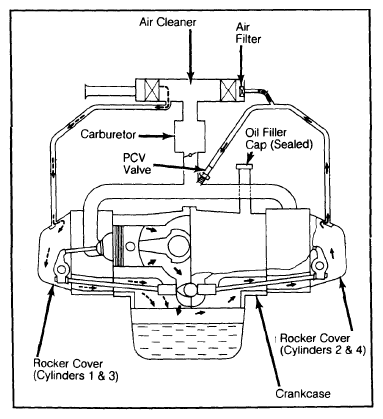

Fig 1: Subaru Crankcase Ventilation System

Courtesy of SUBARU OF AMERICA, INC.

Note direction of air flow.
