HITACHI Alternators: Description

Hitachi alternators are conventional 3-phase, self-rectifying type alternators. Six diodes (3 positive and 3 negative) are used to rectify current.

All models are equipped with integral-type IC regulators, except Isuzu and LUV models equipped with gasoline engines. Isuzu and LUV models with diesel engines have IC regulators.

APPLICATION

Model				Hitachi No.
Datsun/Nissan
	200SX			LR160-78B
	210			LR150-99B
	280ZX			LR160-82B
	310			LR150-125B
	Maxima
		Gasoline		LR160-82B
		Diesel		LR160-97B
	Pickup
		Gasoline
			Standard	LR150-98B
			Heavy Duty	LR160-78, LR160-78B
		Diesel		LR160-97B
	Sentra			LR150-125B
	Stanza			LR160-104
Isuzu
	Gasoline
		2-WD		LT150-144
		4-WD		LT150-131B
	Diesel			LR150-78
LUV
	Gasoline
		2-WD		LT150-144
		4-WD		LT150-131B
	Diesel			LR150-78
Subaru				1LR155-1

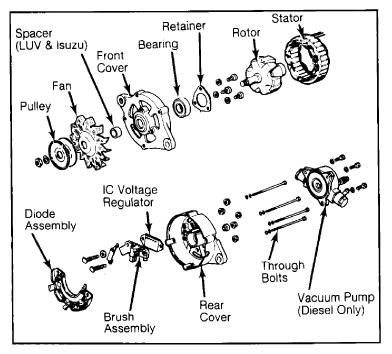

Fig 1: Disassembled View of Typical Hitachi Alternator

Courtesy of NOT AVAILABLE

Datsun/Nissan Pickup alternator is illustrated.
