Feedback Carburetor

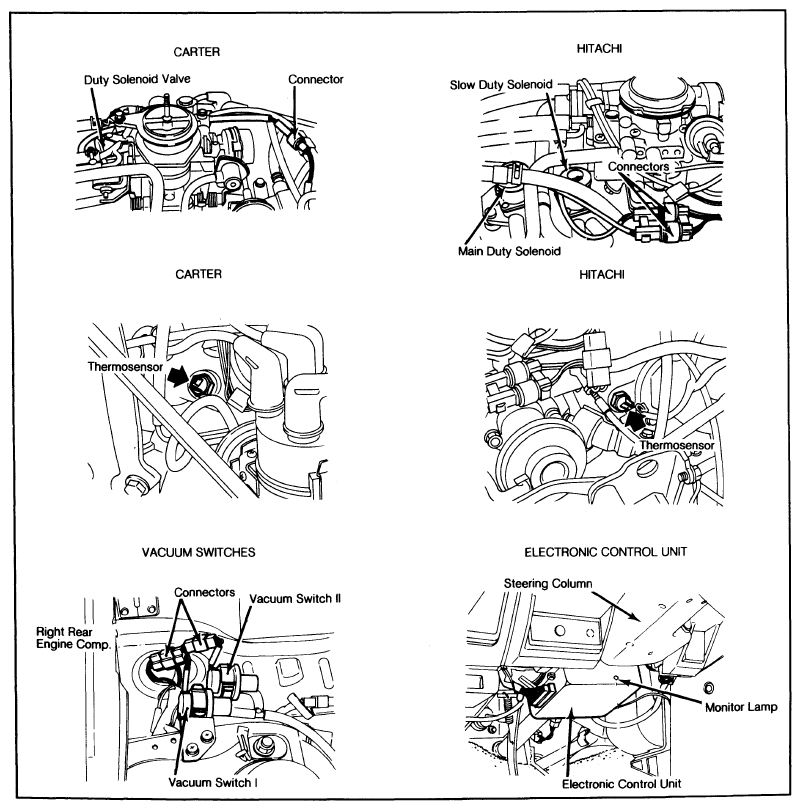

The carburetor is equipped with both slow and main metering circuits. Engine speed and load determine which circuit is used, but both are capable of being adjusted by air bleeds. The air bleeds are connected to duty solenoid(s) which allow or restrict air flow through the bleeds.
