1800 Models Exc. Hardtop, Hatchback & Sedan With 5-Speed Man. Trans.

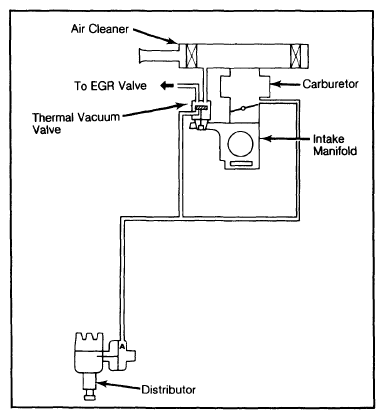

When intake manifold temperature is between 59-95°F (15-35°C), thermal vacuum valve vents distributor vacuum line to atmosphere so no vacuum advance is applied. When engine is below or above these temperatures, vacuum is obtained from a throttle port above throttle valve and applied to vacuum advance unit.
