Check Valve

Disconnect check valve and blow air from manifold side toward canister side. No air should pass. Blow in the other direction. Air should pass freely. If not, replace valve.

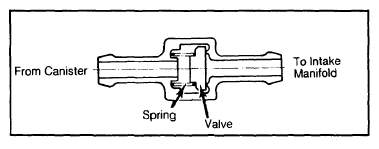

Fig 1: Sectional View of Purge Line Check Valve

Courtesy of SUBARU OF AMERICA, INC.
