Steering Columns: Description

Steering column assembly consists of a steering wheel incorporating a horn control, a combination turn signal, hazard warning, and headlight dimmer switch assembly, and an energy absorbing steering shaft.

The steering column is connected to the steering gear through a universal joint coupling. The energy absorbing steering shaft is designed to collapse during a front end collision. An anti-theft locking mechanism is used to prevent steering shaft from turning when key is removed.

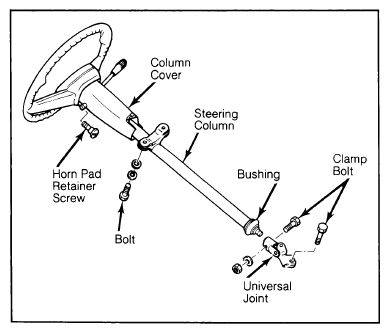

Fig 1: Subaru Steering Column Assembly
G09361971Courtesy of SUBARU OF AMERICA, INC.
