Engine Control Module: Locations

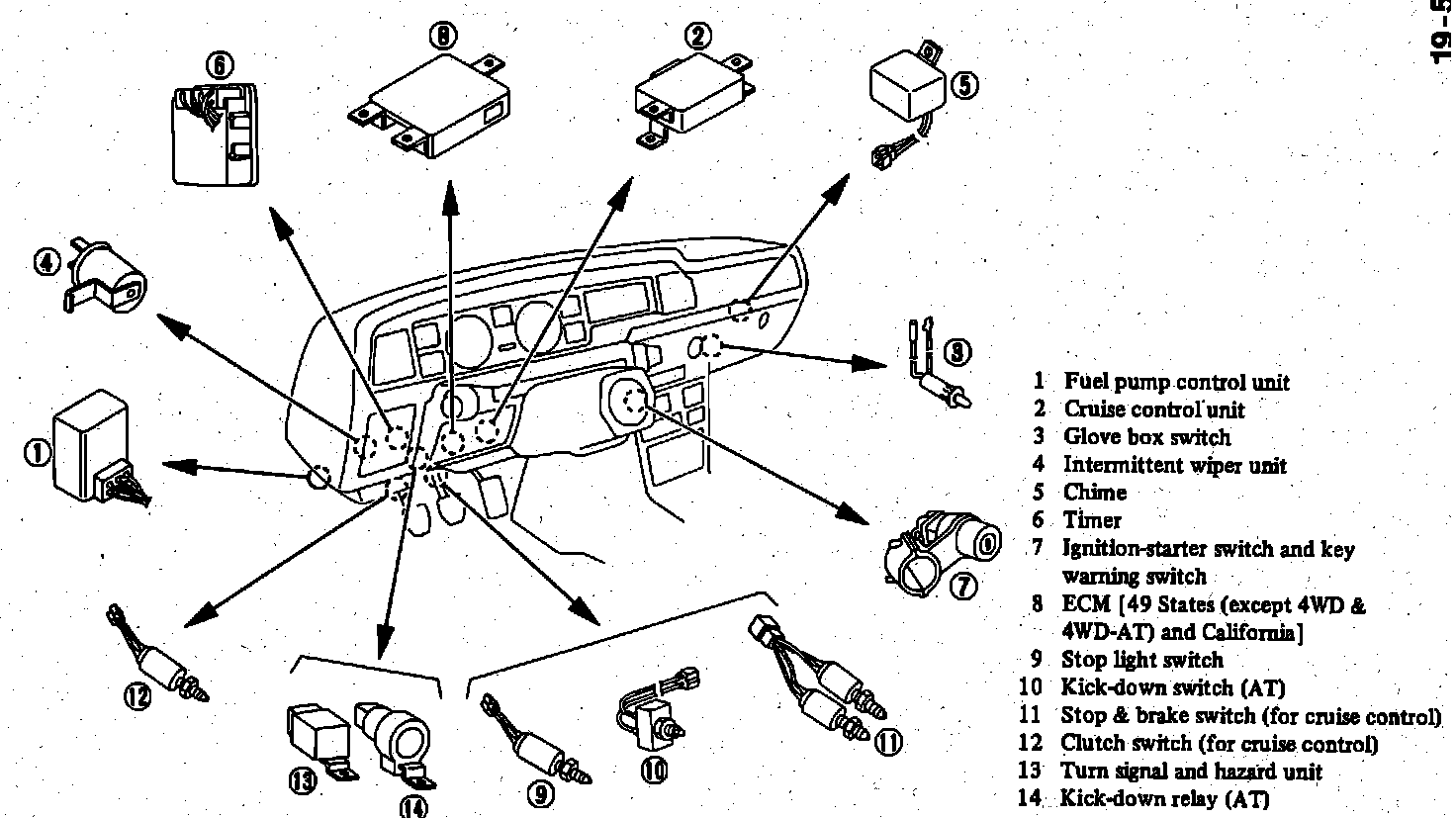

Instrument Panel Electrical Components.:




Under LH Side Of Instrument Panel

Applicable to: 1981-84 Except Brat
