Brakes and Traction Control: Testing and Inspection

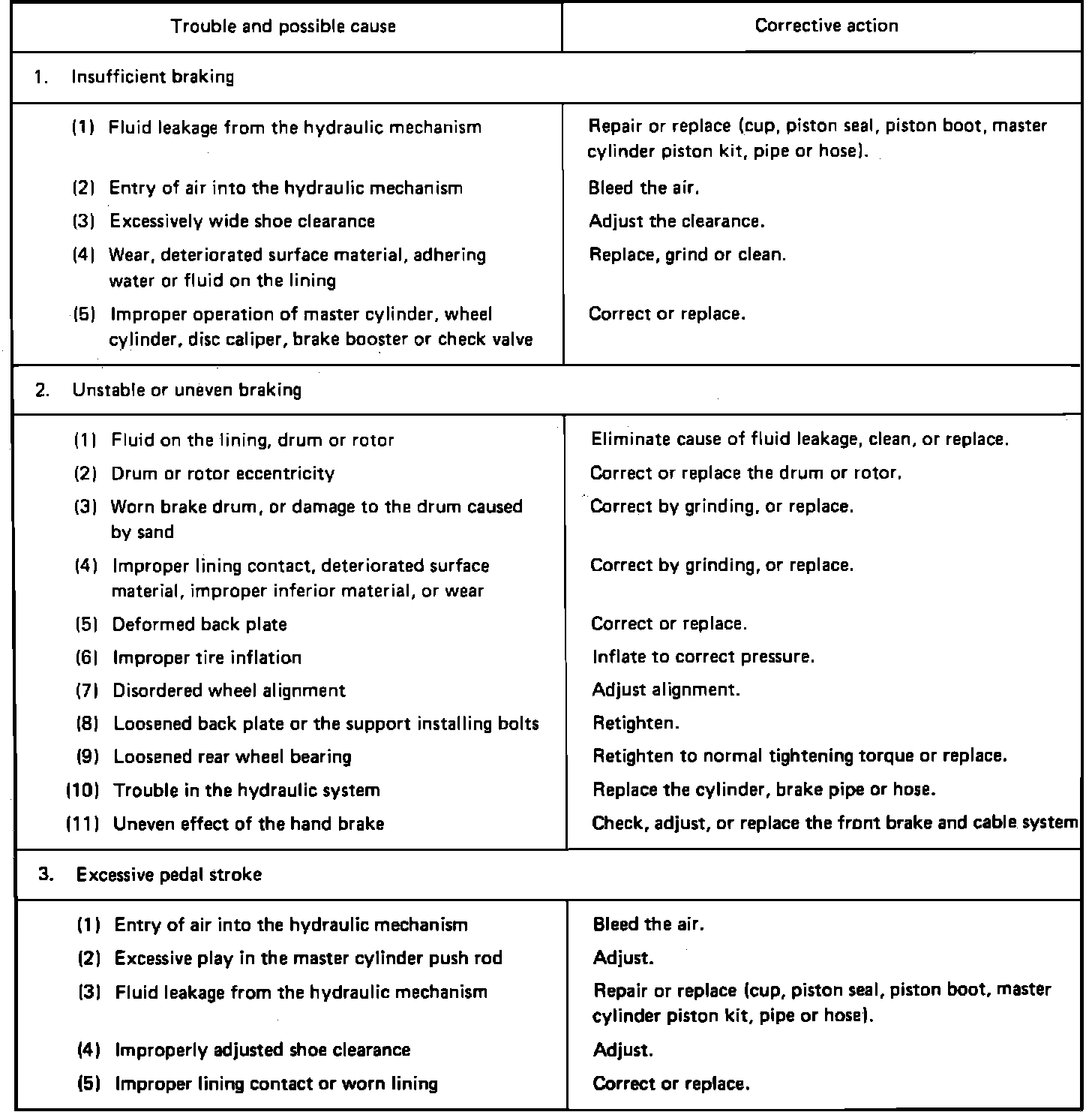

Fig. 1 Hydraulic Brake System Troubleshooting Chart (Part 1 Of 2):

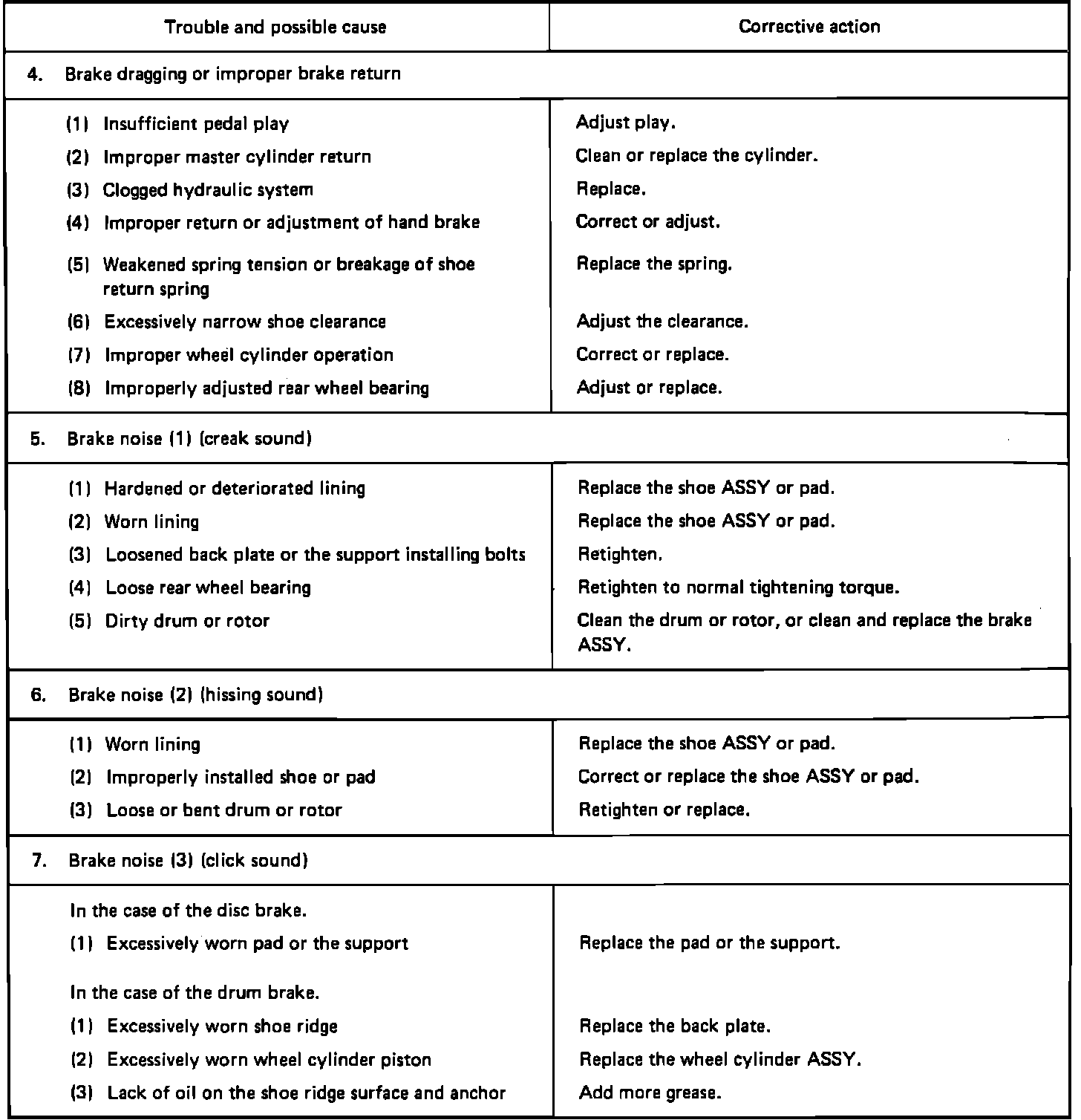

Fig. 1 Hydraulic Brake System Troubleshooting Chart (Part 2 Of 2):
