Transmission Control Systems: Description and Operation

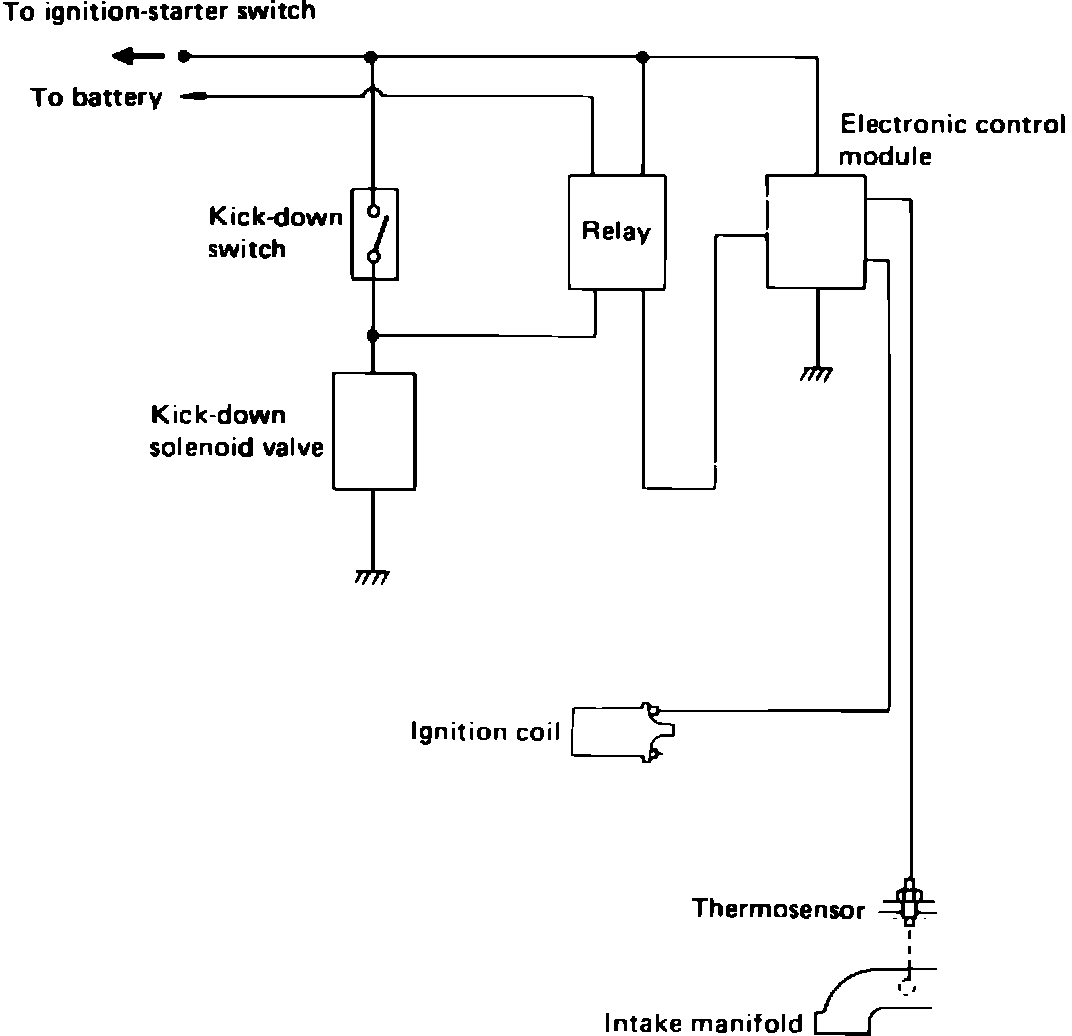

Fig.23 Shift-up control system schematic.:

Vehicles with automatic transmissions are equipped with a shift control system, FIG. 23 to reduce CO emissions during warmup. If engine is started while coolant temperature is within a specified range, the transmission is held in kick-down range for a pre-set time interval after ignition switch is turned on.
