Service Data

AUTOMATIC TRANSMISSION SPECIFICATIONS

Automatic Transmission And Differential Specifications:








SERVICE DATA

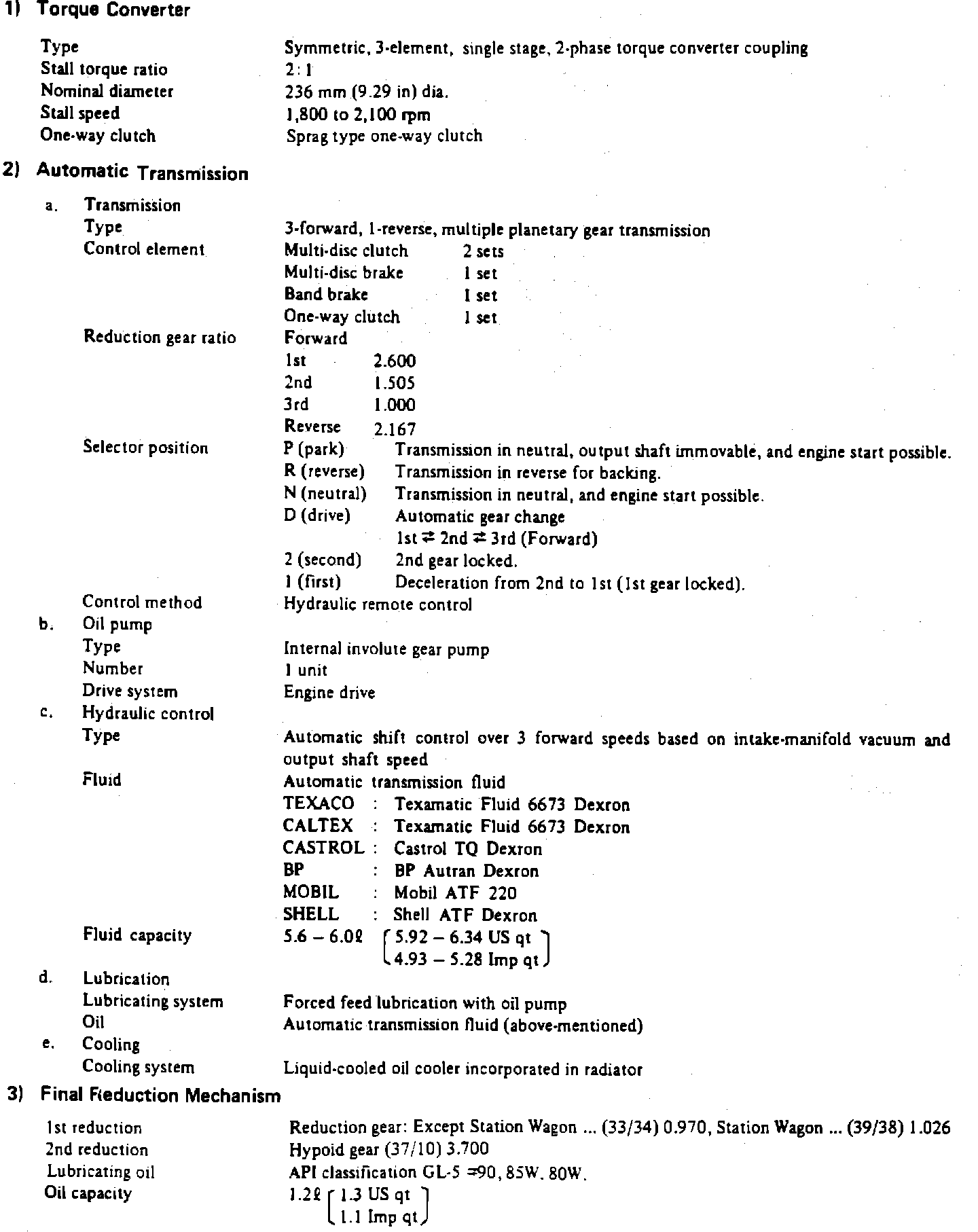

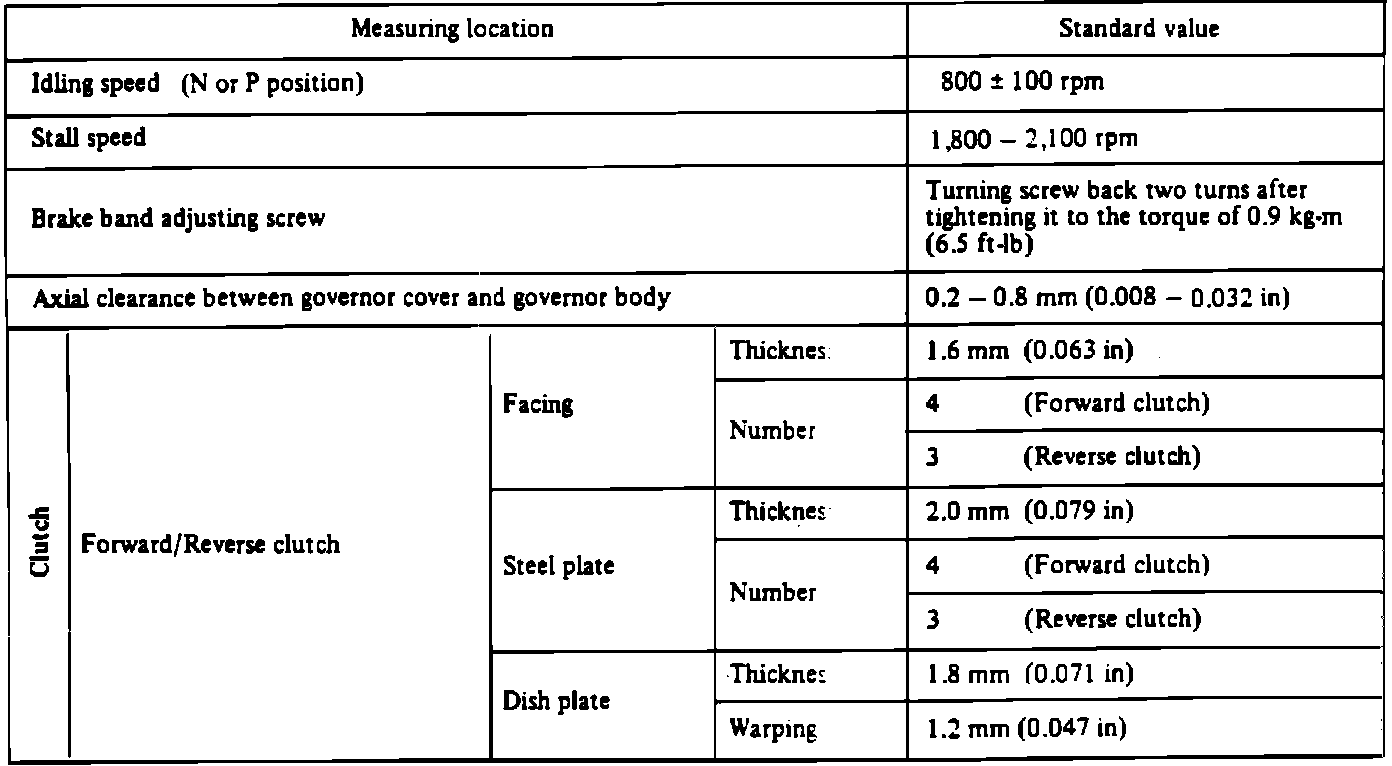

Automatic Transmission Service Data (Part 1 Of 4):




Part 1 Of 4

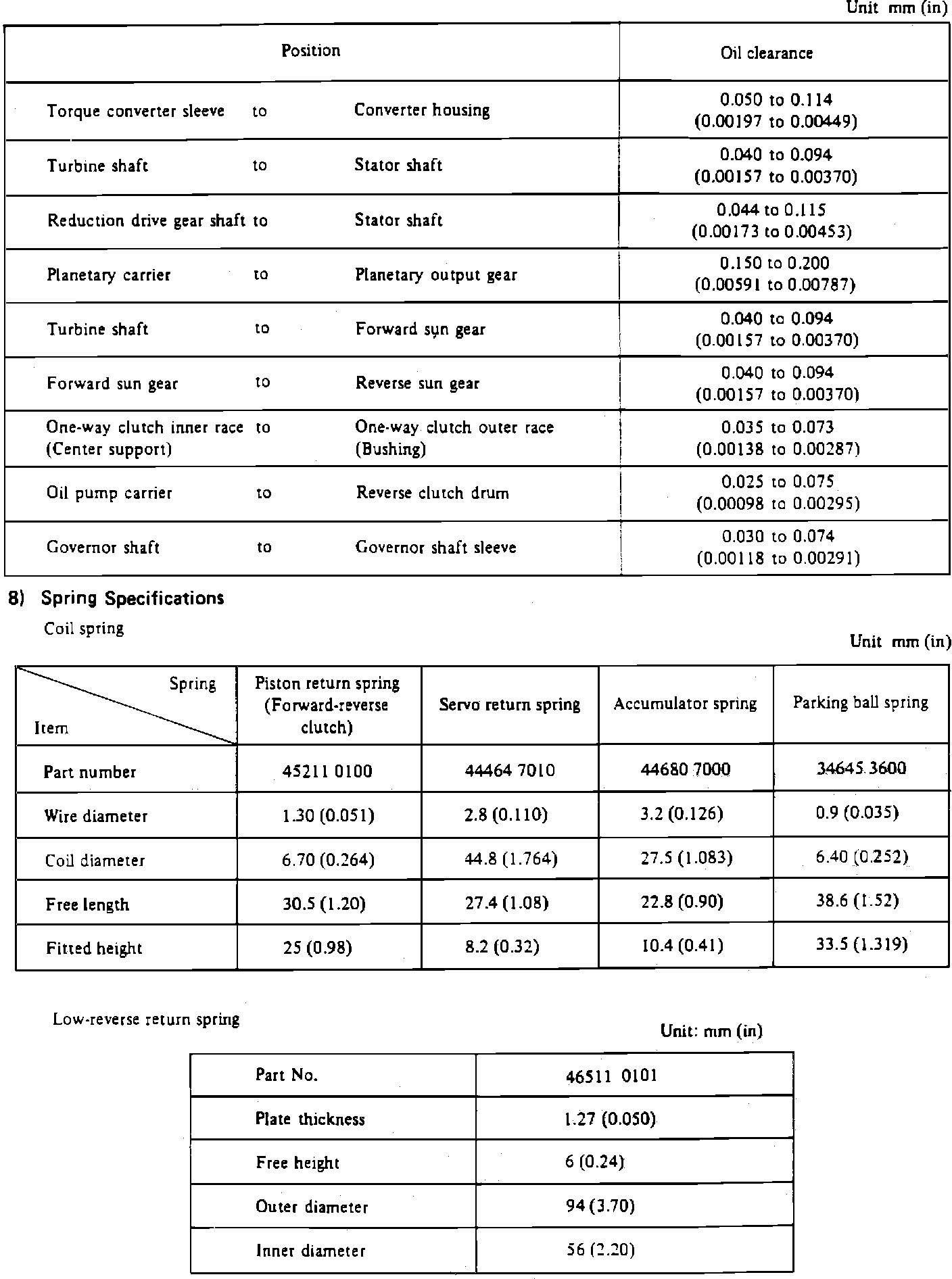

Automatic Transmission Service Data (Part 2 Of 4):




Part 2 Of 4

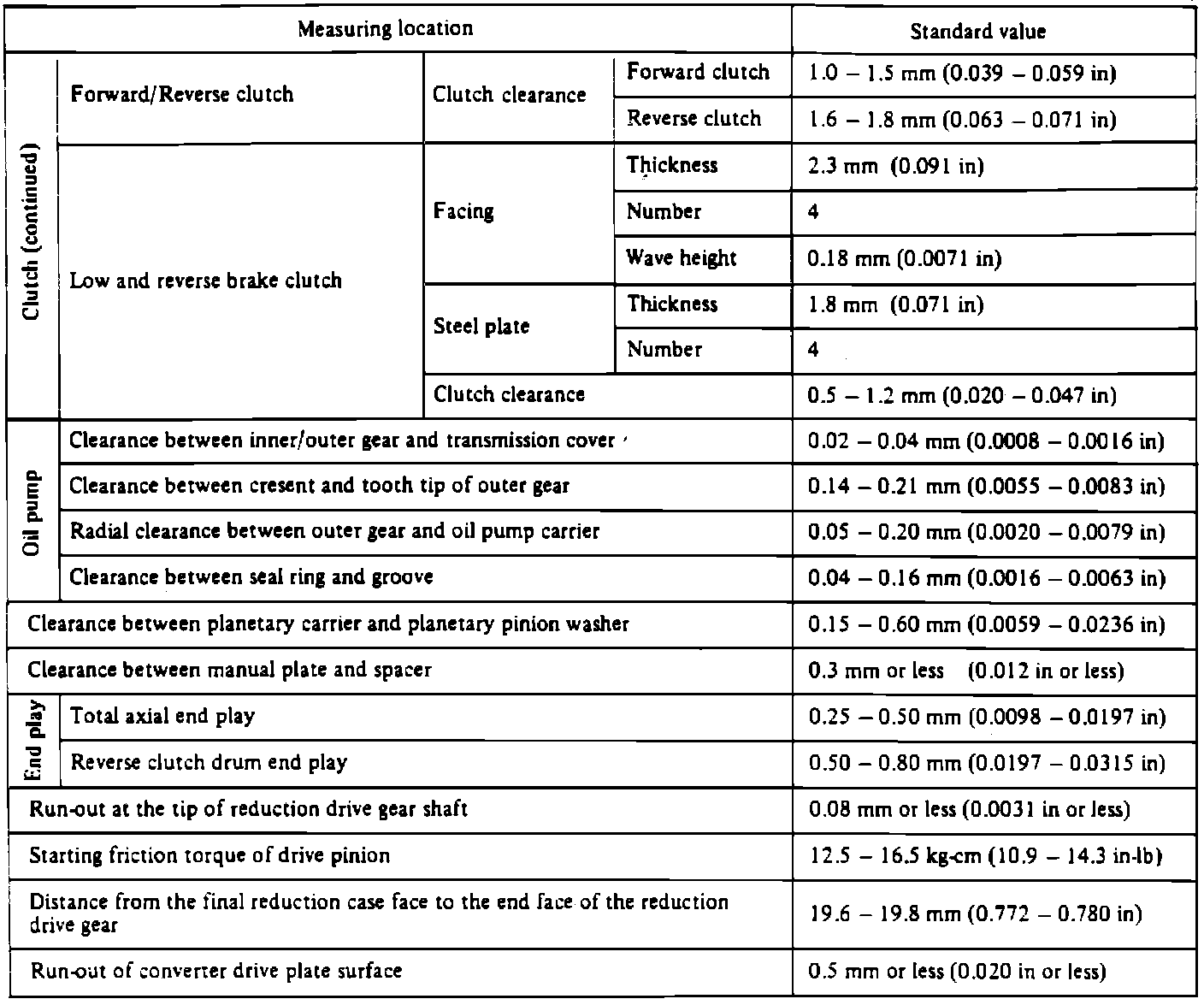

Automatic Transmission Service Data (Part 3 Of 4):




Part 3 Of 4

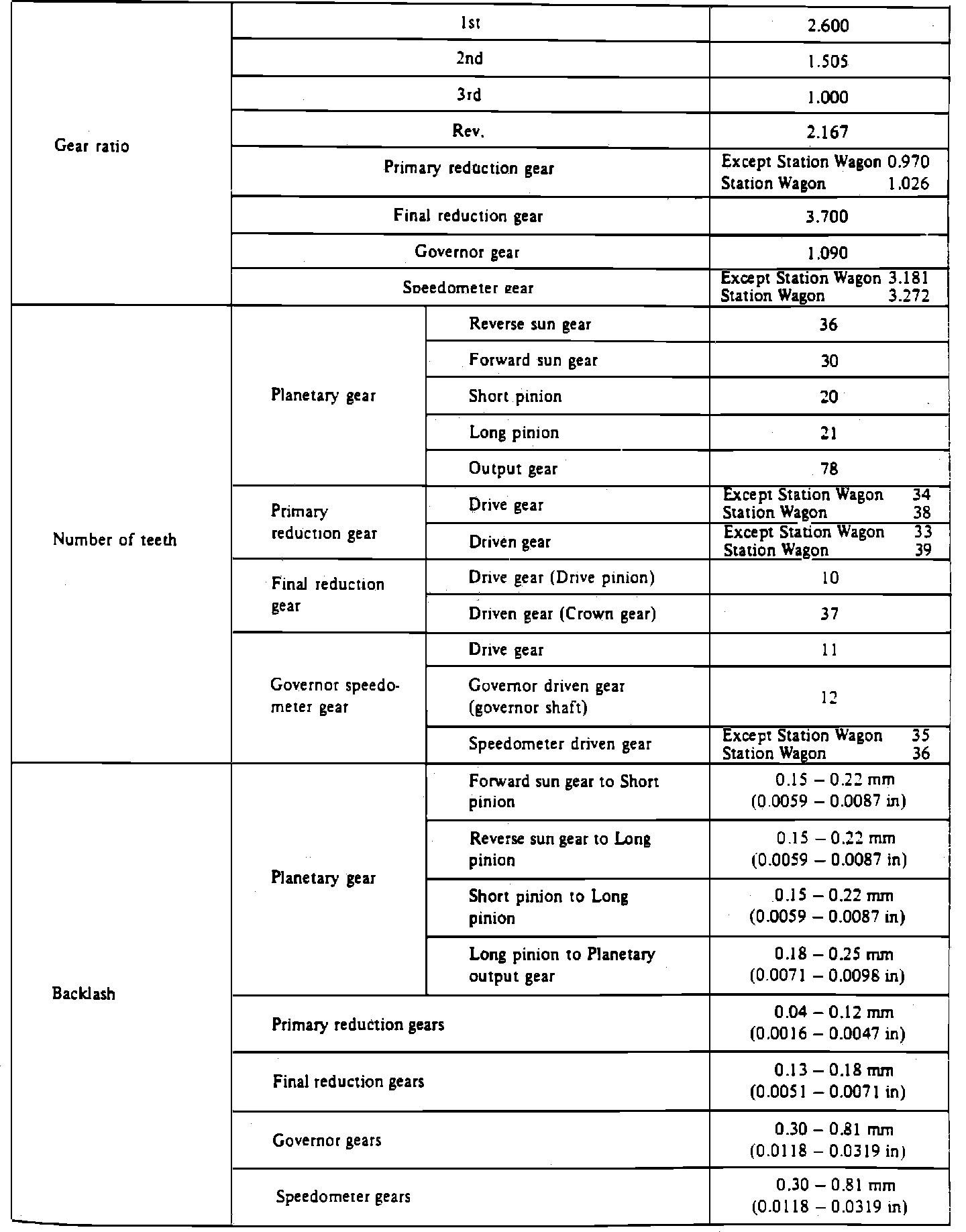

Automatic Transmission Service Data (Part 4 Of 4):




Part 4 Of 4
