Manual Transmission/Transaxle

MANUAL TRANSMISSION SPECIFICATIONS

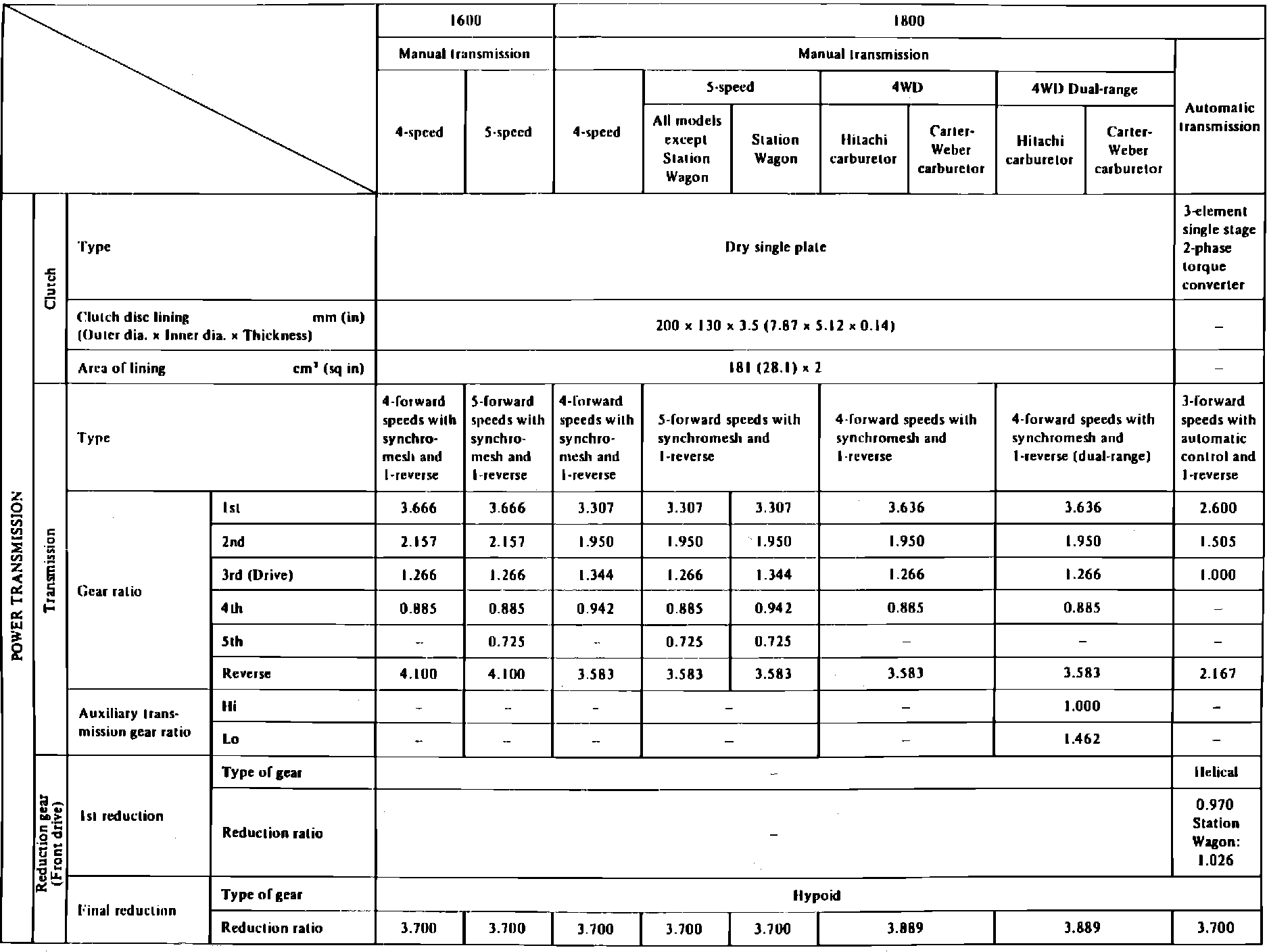

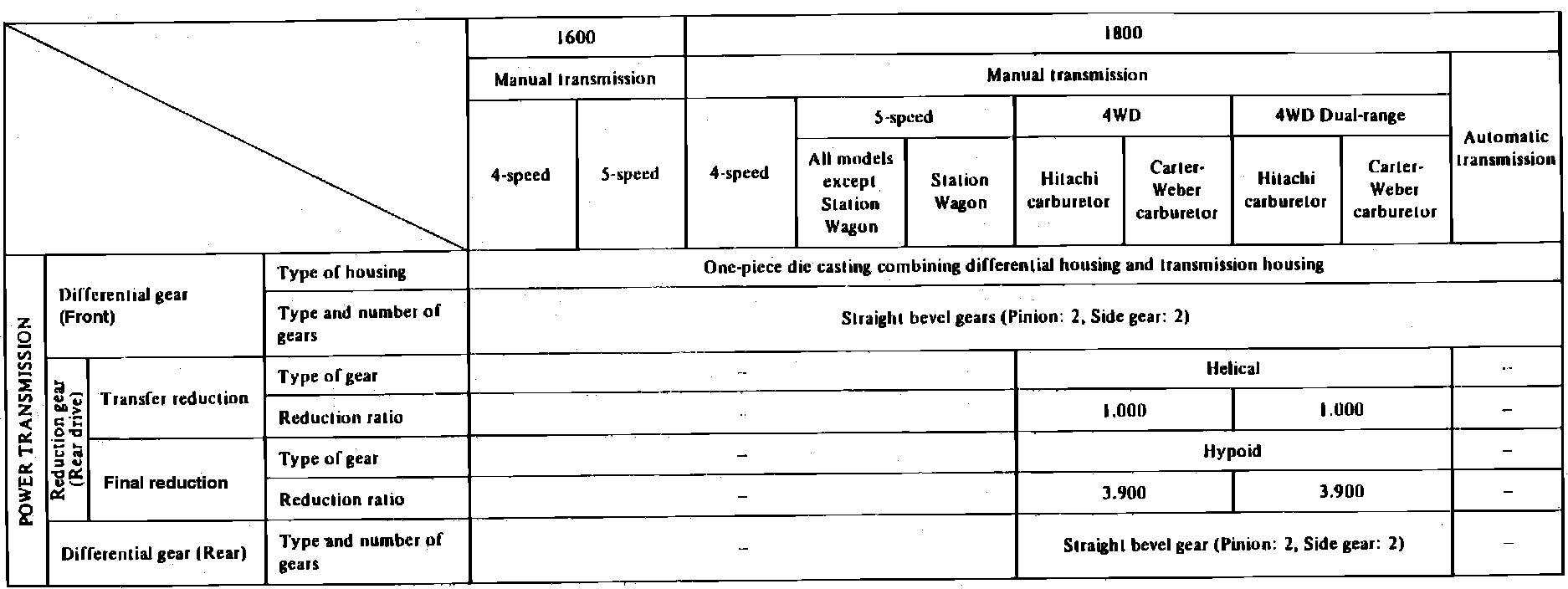

Specifications Manual Transmission:

SERVICE DATA

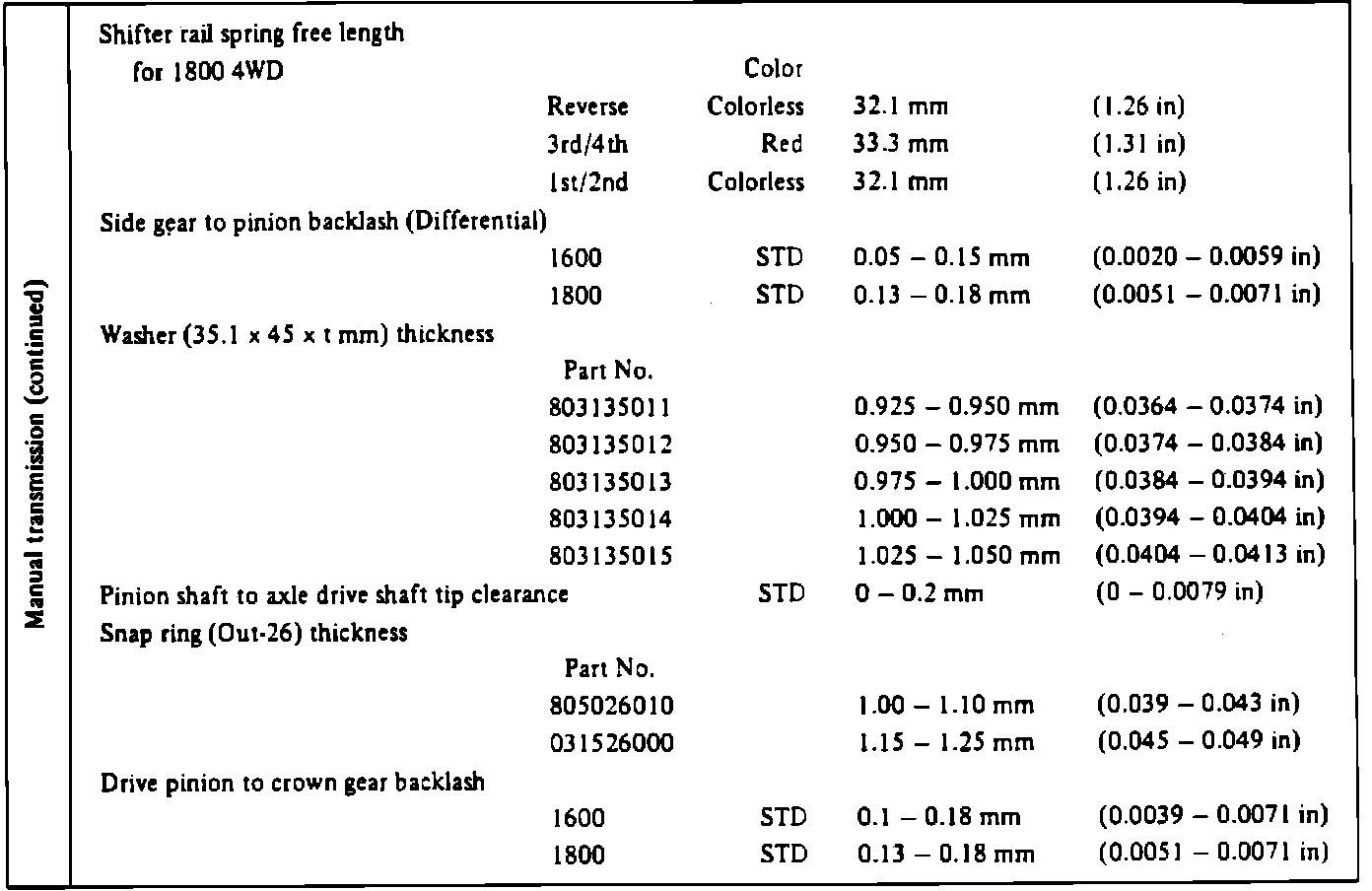

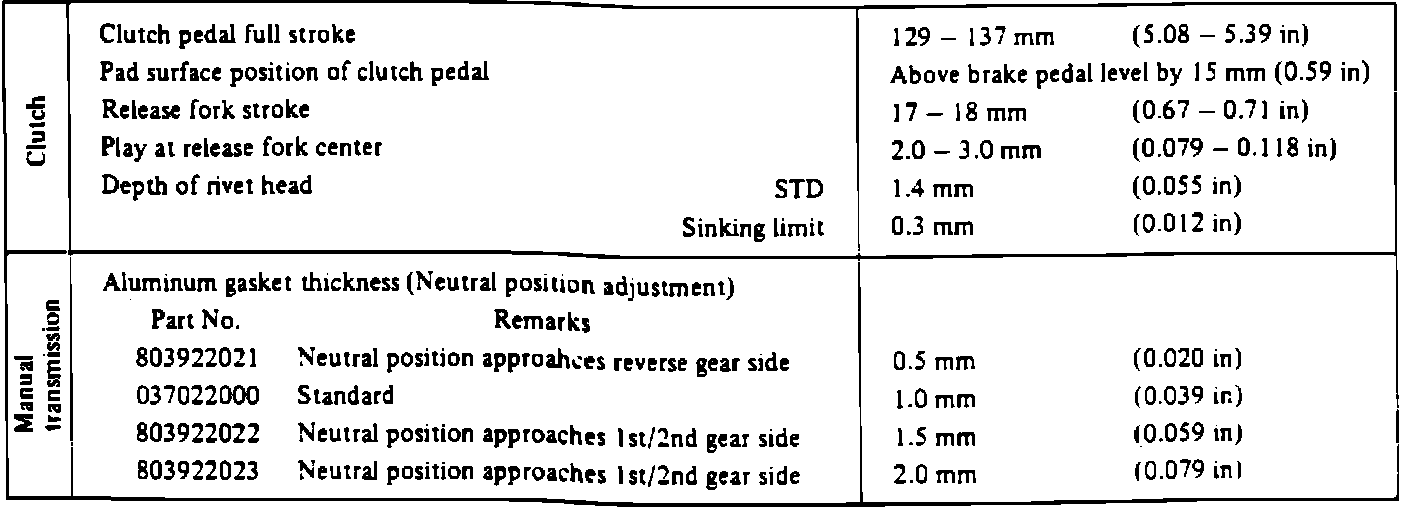

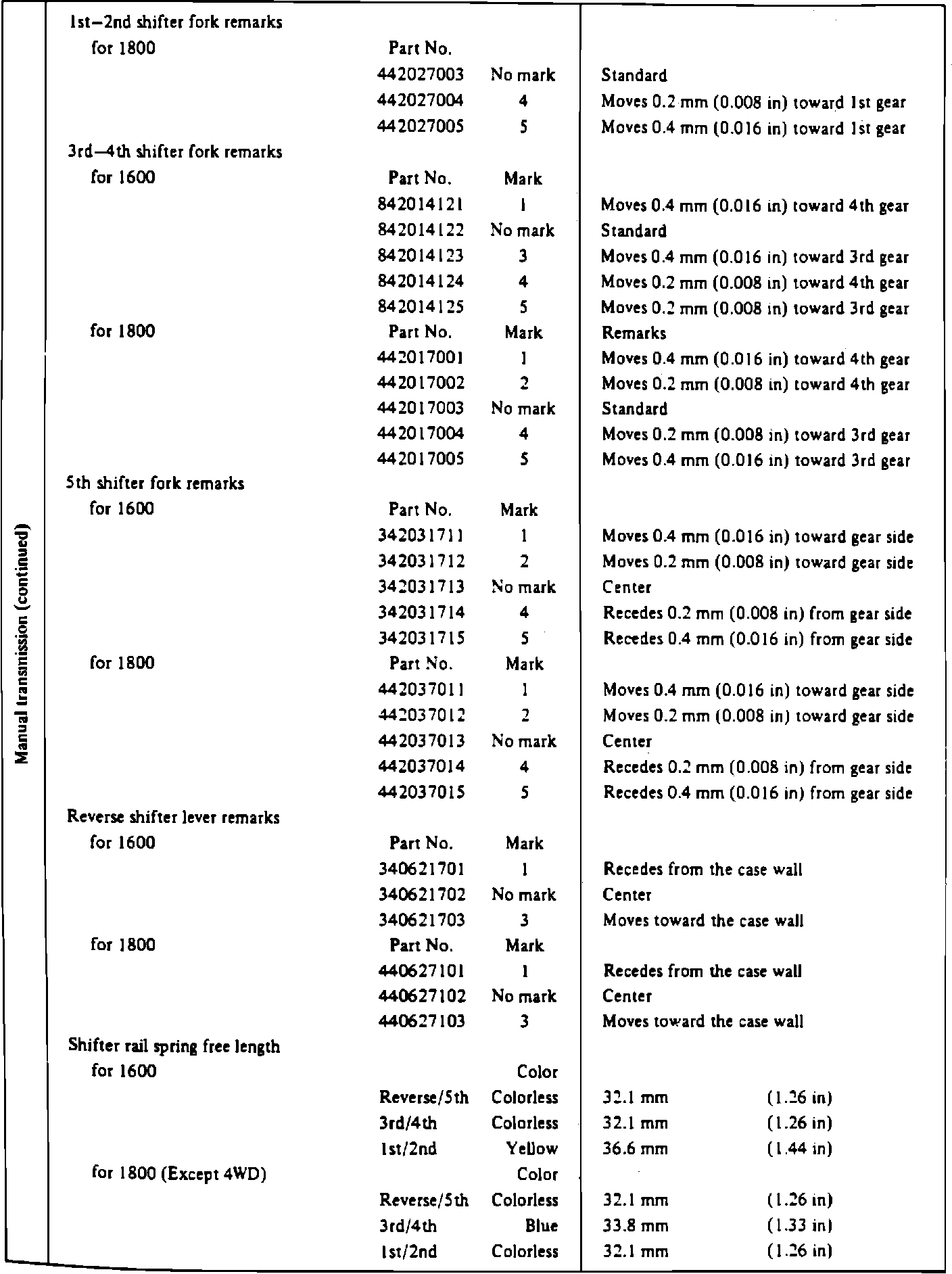

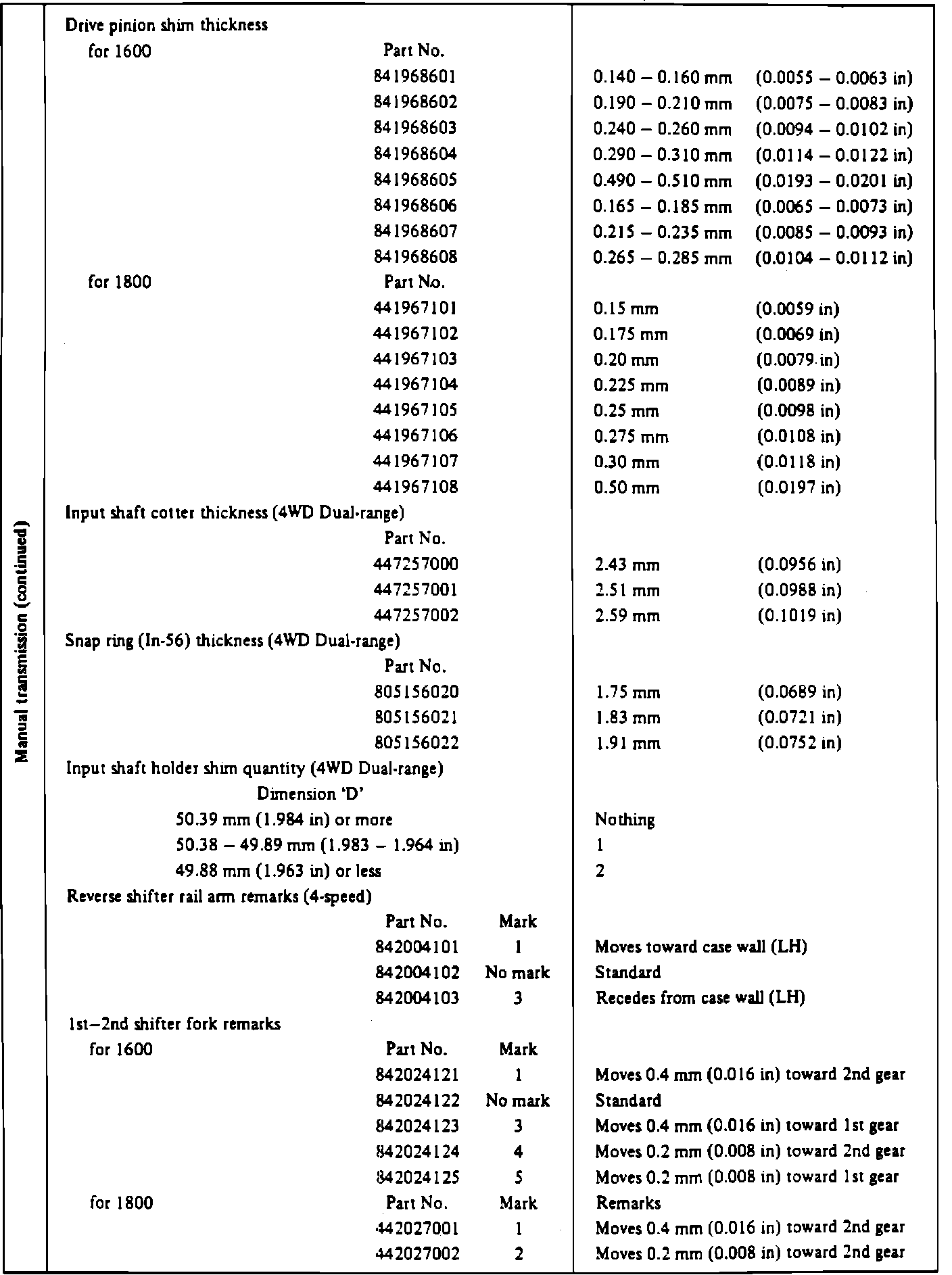

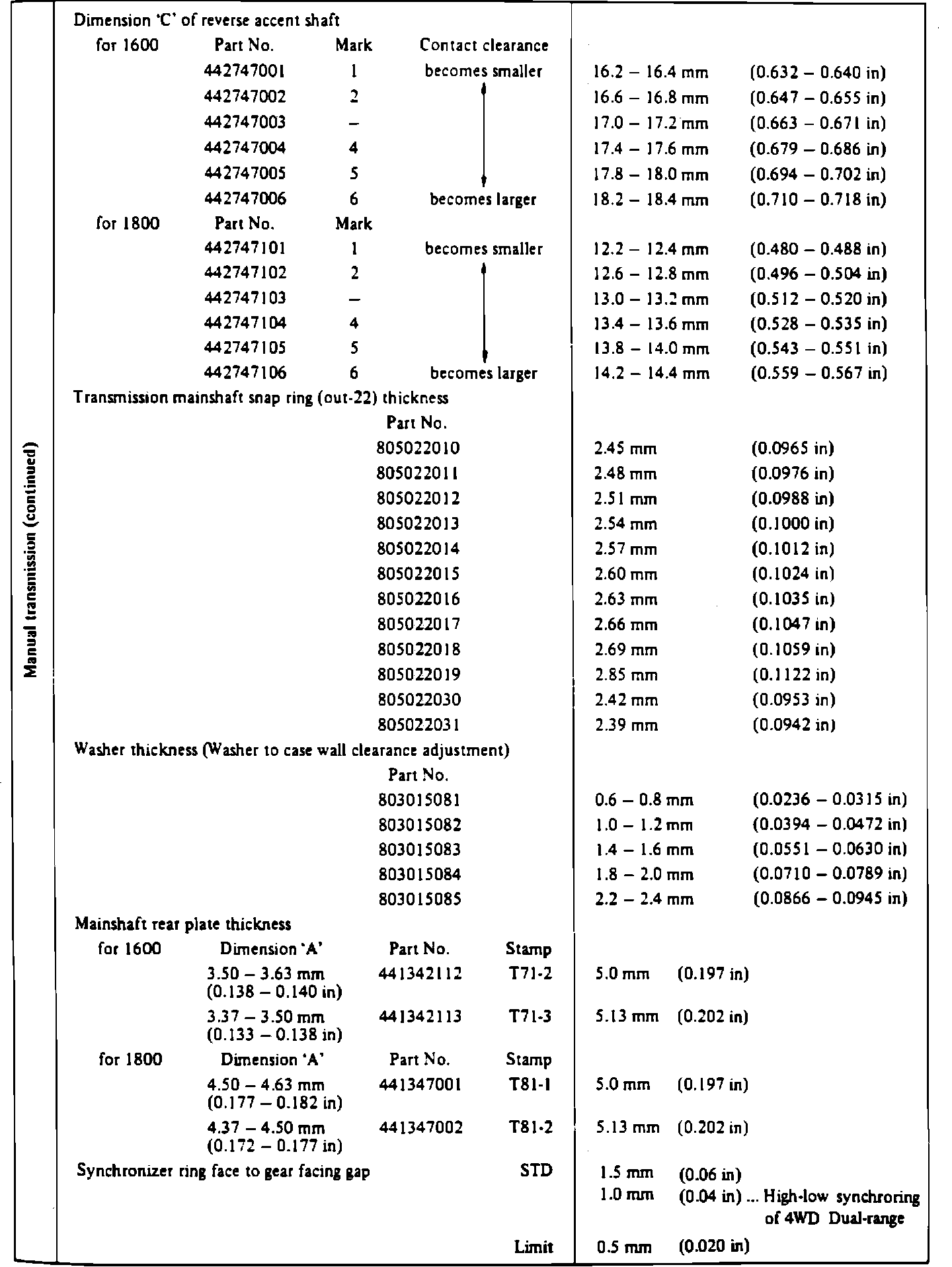

Manual Transmission Service Data (1 Of 5):

Part 1 Of 5

Manual Transmission Service Data (2 Of 5):

Part 2 Of 5

Manual Transmission Service Data (3 Of 5):

Part 3 Of 5

Manual Transmission Service Data (4 Of 5):

Part 4 Of 5

Manual Transmission Service Data (5 Of 5):

Part 5 Of 5
