Differential Technical Data

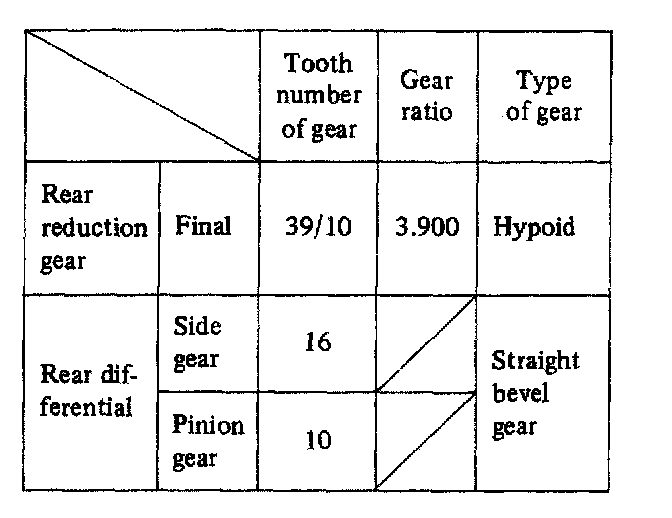

Rear Wheel Drive System (4WD):

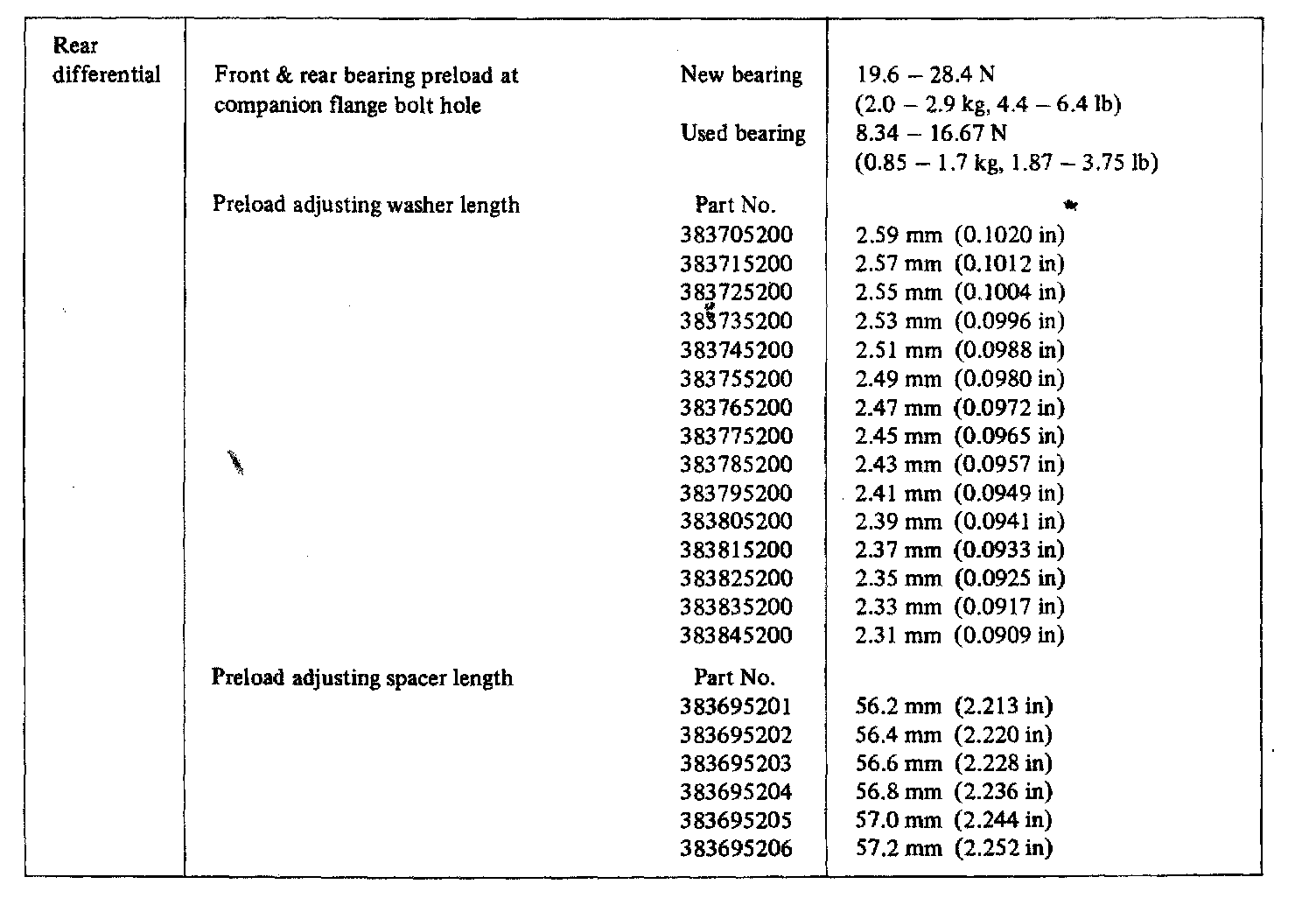

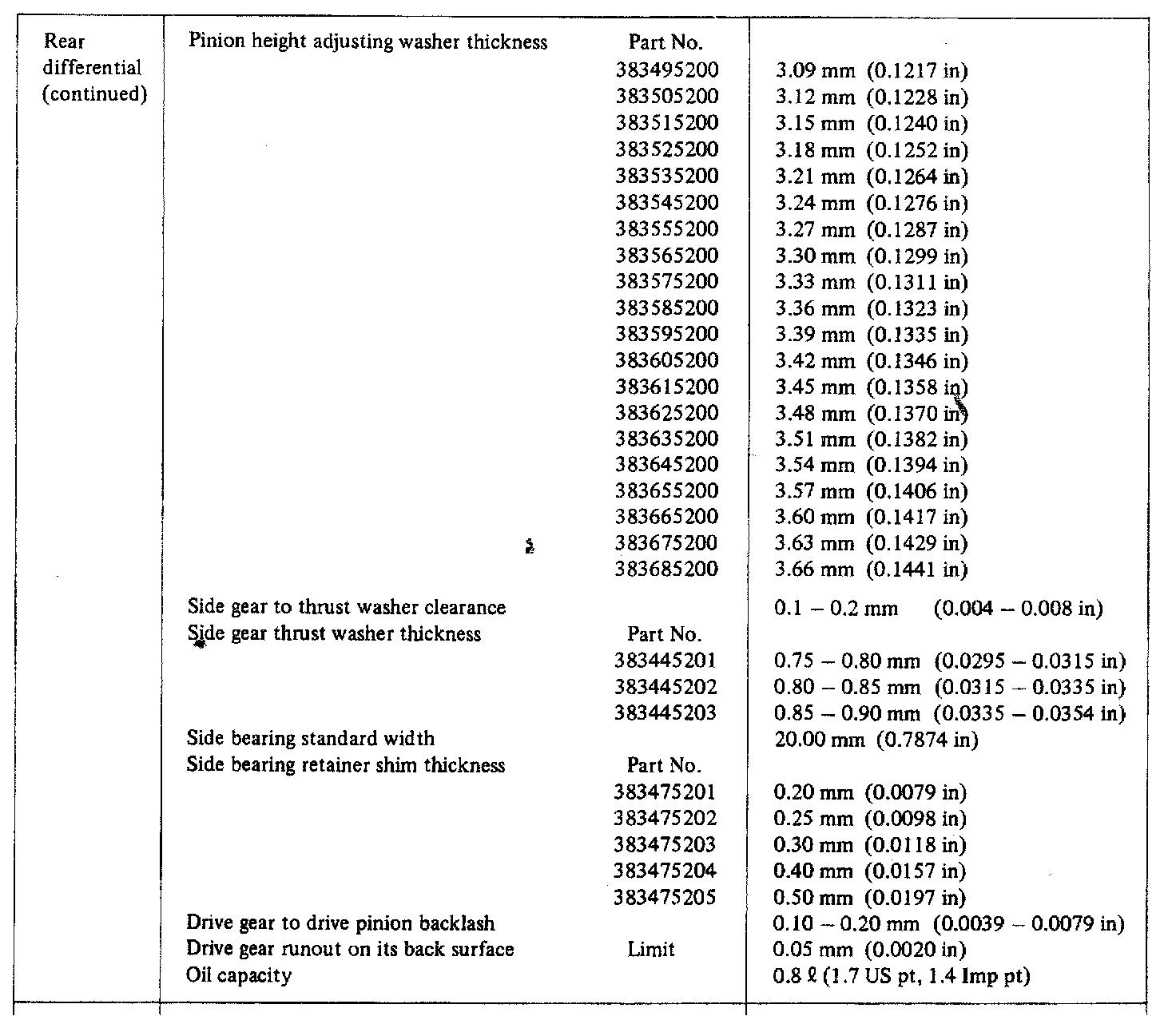

Rear Wheel Drive Differential:
Rear Wheel Drive Differential:
