1.8L Turbo Engine

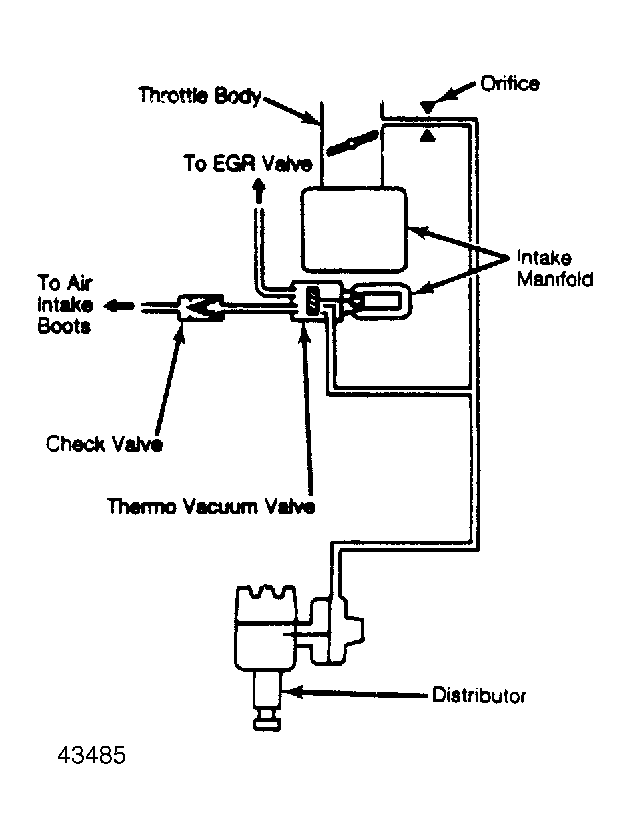

When intake manifold temperature is 59-122°F (15-50°C), thermo vacuum valve I vents distributor vacuum line to atmosphere so no vacuum advance is applied. When engine is below or above these temperatures, vacuum is obtained from a throttle port above throttle valve and is applied to vacuum advance unit. See Fig 1 .
