Shift-Up Control System

The shift-up control system is provided on automatic transmission vehicles only and is used to reduce CO emission due to rapid warm-up. If the engine is started while coolant is in the preset temperature range, ECM keeps the automatic transmission in a kick-down state for a certain duration of time. See Fig 1 .

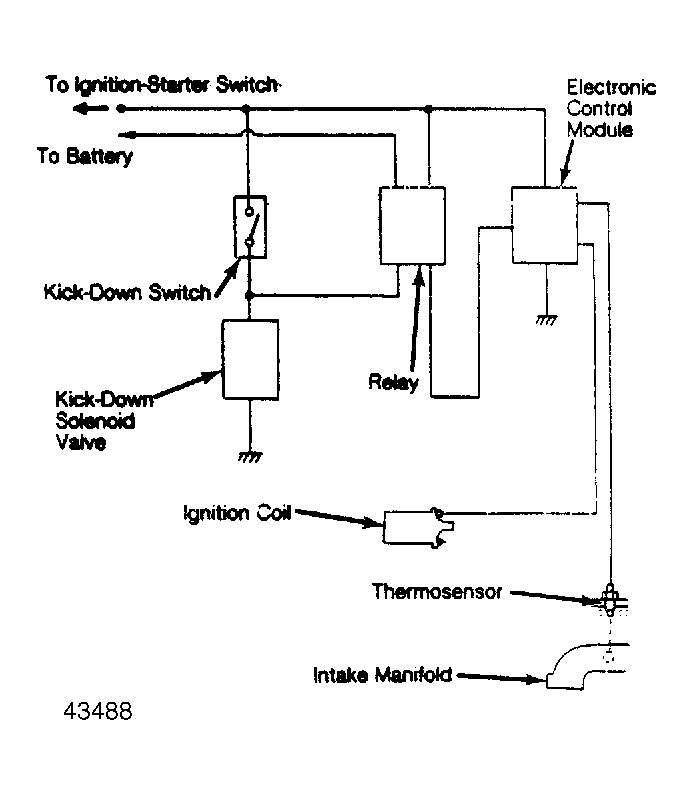

Fig 1: Shift-Up Control System
G43488
