Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C-Heater Blower Motor Resistor | On side of heater case. | |
| Brake/Stoplight Checker | ||
| Brat | Behind right seat. | |
| Hatchback | In left rear quarter panel. | |
| Wagon | In right rear quarter panel. | |
| All Others | On right taillight assembly. | |

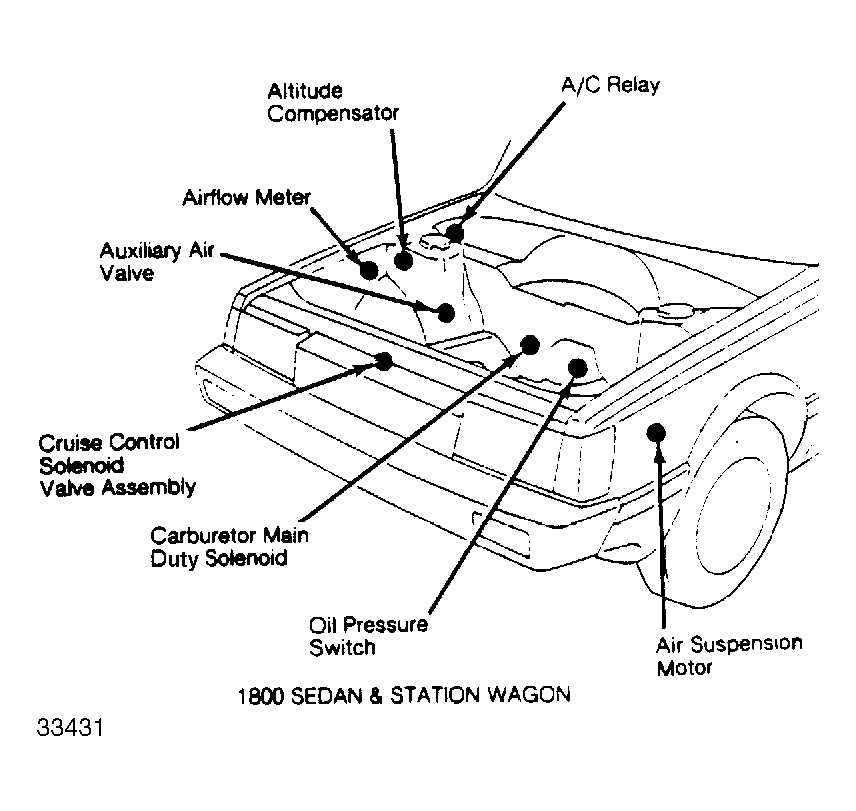

| Airflow Meter | On right wheel apron. See Figure . | |
| Altitude Compensator | Attached to right strut tower. See Figure . | |
| Fuse Block | On bottom left side of instrument panel. | |

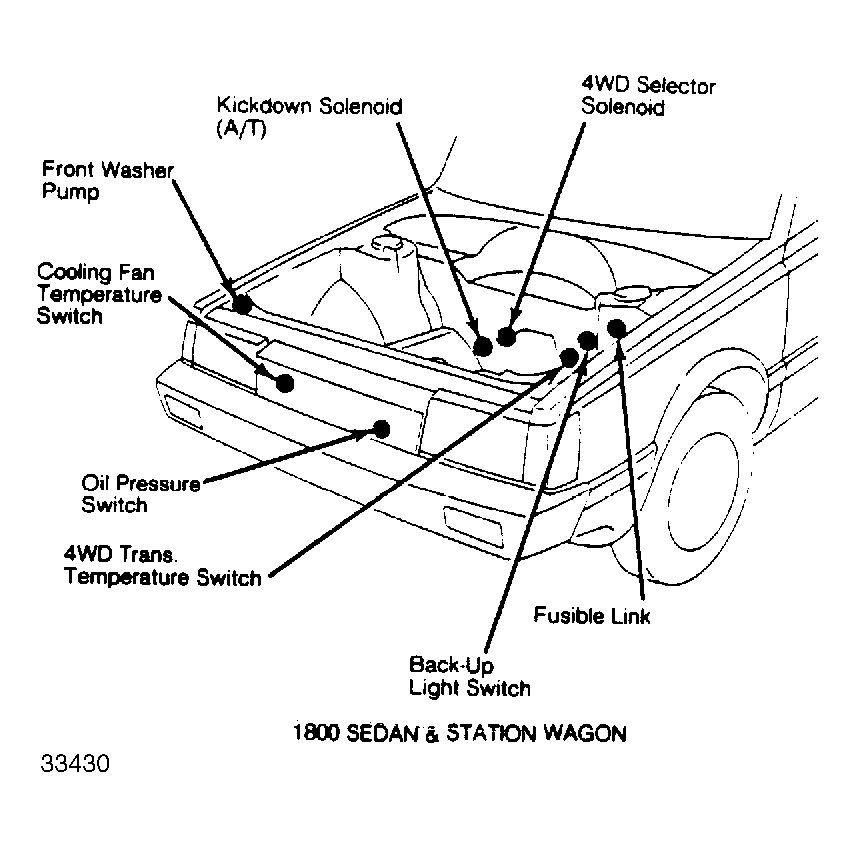

| Fusible Link | In front of left strut tower. See Figure . | |
| Pulse Amplifier | Under center of instrument panel. See Figure . | |
| Radio Noise Condenser | Under center of instrument panel. See Figure . | |
