Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

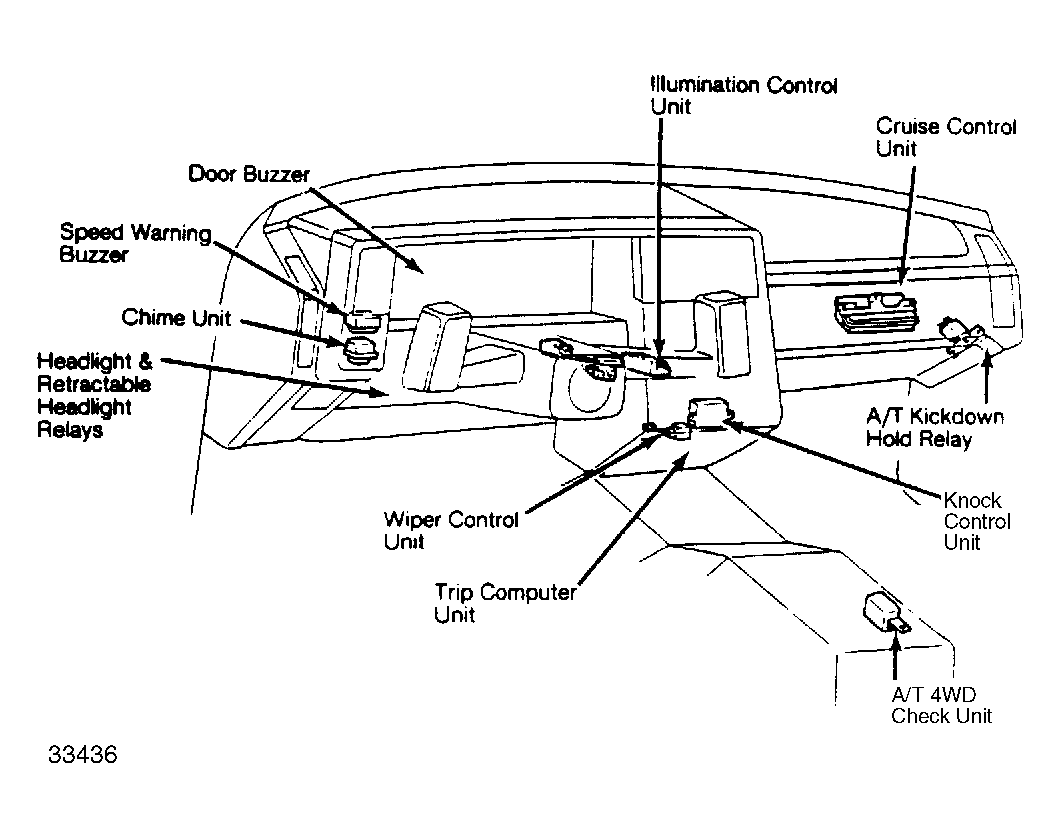

| Cruise Control Unit | Under dash on right side. See Figure . |

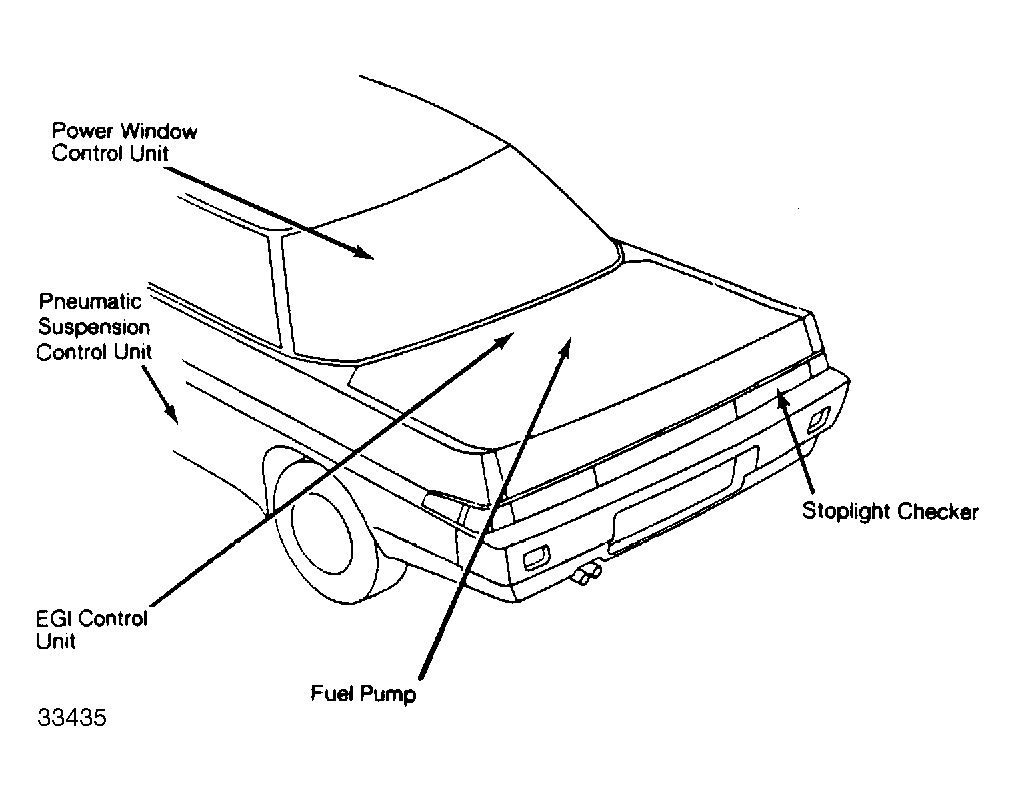

| EGI Control Unit | In trunk on right side. See Figure . |
| Illumination Control Unit | Incorporated in control wing. See Figure . |
| Knock Control Unit | In forward portion of center console. See Figure . |
| MPFI Inj. Control Unit | In forward portion of trunk. |
| Pneumatic Susp. Control Unit | Under driver's seat. See Figure . |
| Power Window Control Unit | Under front passenger's seat. See Figure . |
| Wiper Control Unit | In center console. See Figure . |
