Checking Fuel Pump Circuit

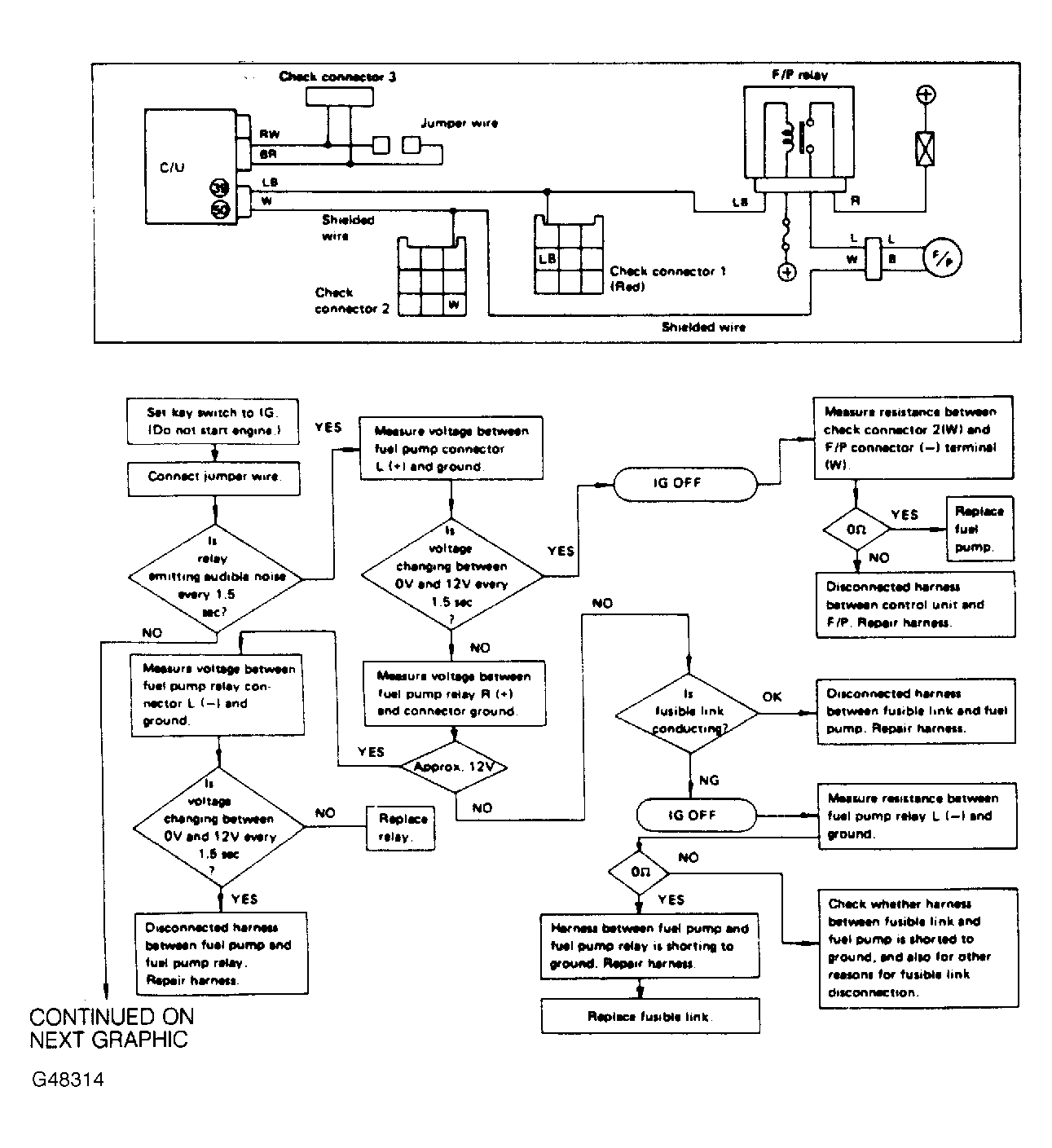

Fig 1: Checking Fuel Pump Circuit (Part 1 of 2)

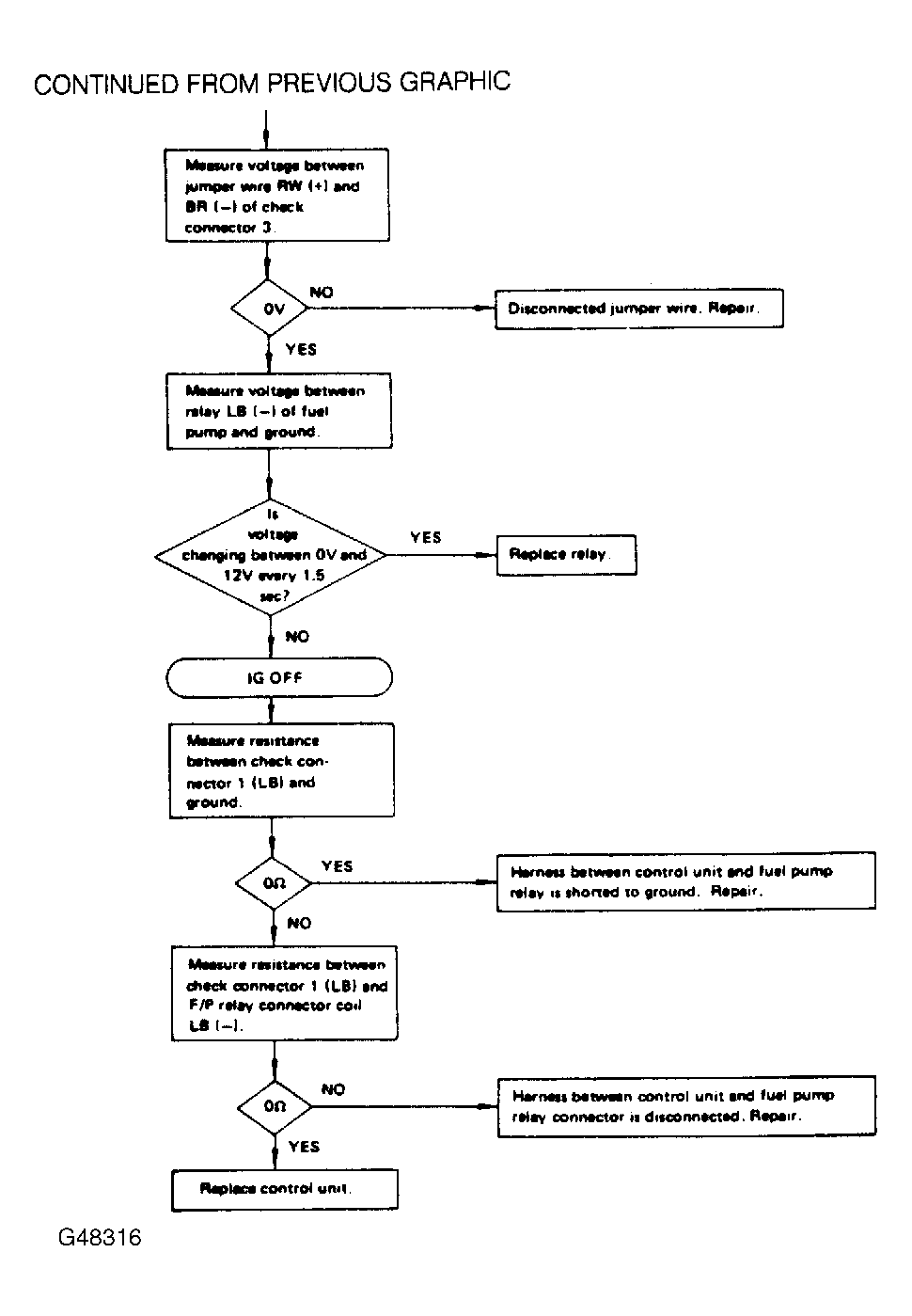

Fig 2: Checking Fuel Pump Circuit (Part 2 of 2)
