Fuel Injection System - BOSCH AFC: Wiring Diagram

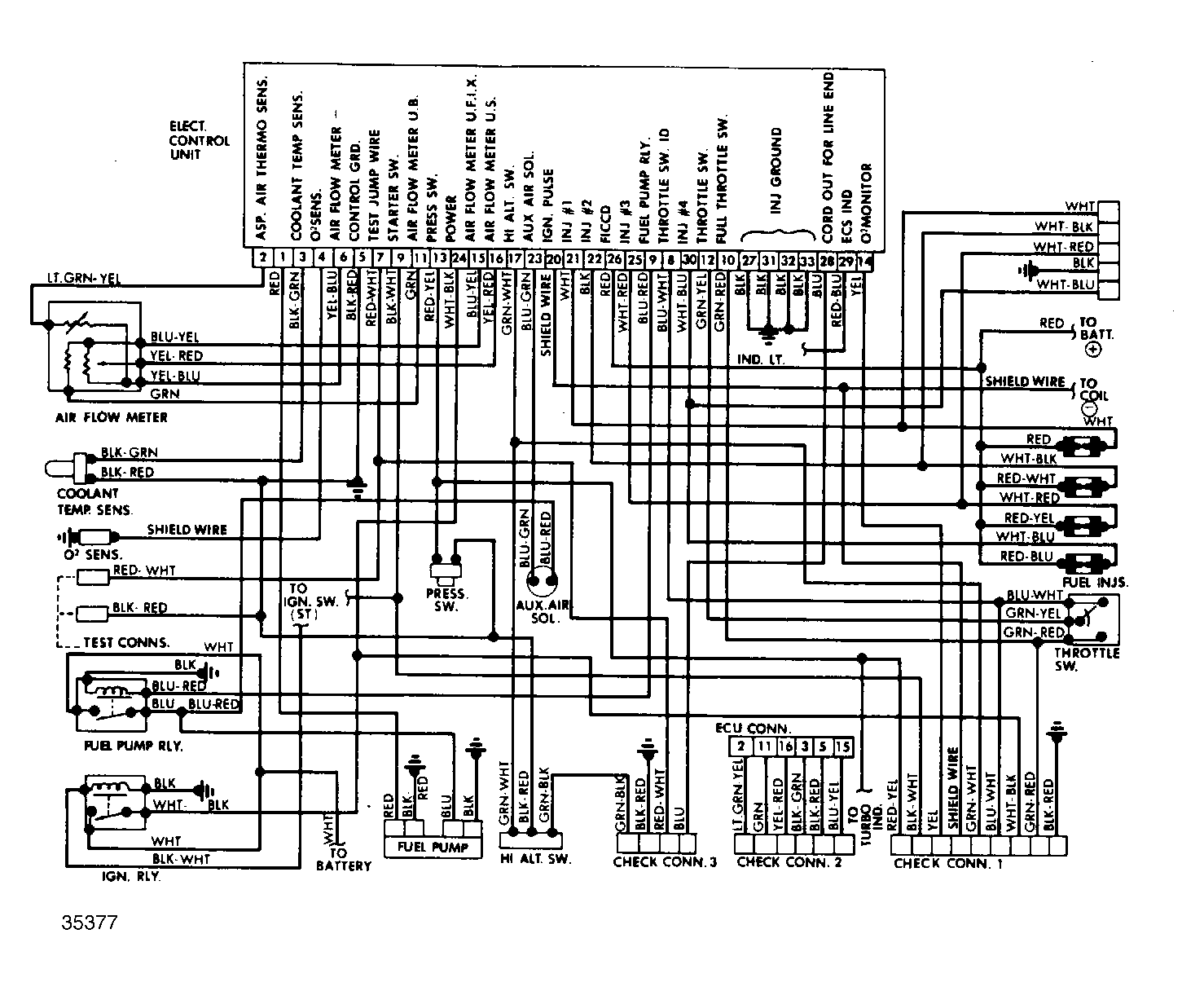

Fig 1: Fuel Injection Wiring Diagram (1.8L Turbo)

G35377
