Toe-In (XT)

  1. Loosen outer mounting bolts. See Fig 1 . When toe-in (or side slip) is excessive, tighten outer arm mounting bolts while pulling end of spindle towards rear of vehicle. This would be in direction of arrow. See Fig 2 .
  2. When toe-out (or side slip) is excessive, tighten outer arm mounting bolts while pushing end of spindle toward front of vehicle (in opposite direction of arrow. See Fig 2 . Adjust toe-in within specifications by repeating steps for both right and left wheels.

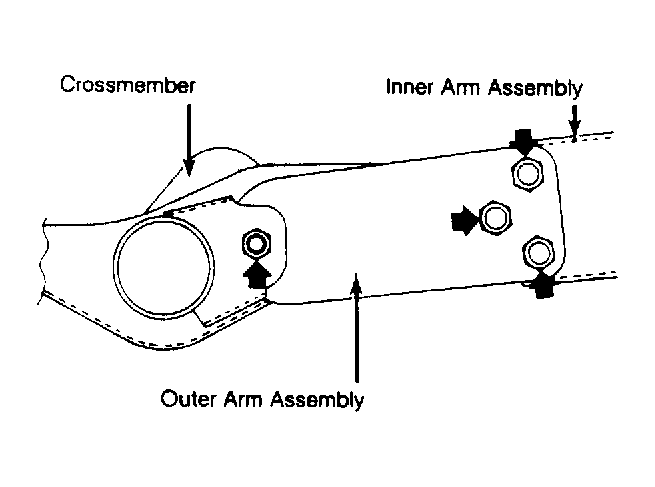

Fig 1: Toe-In Adjustment (XT)
G50864

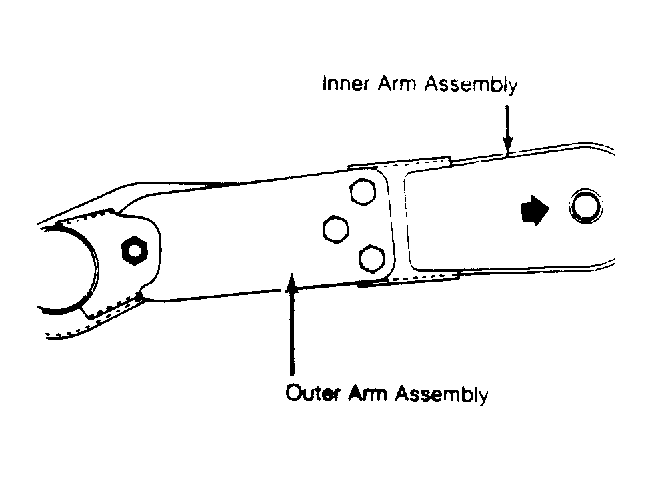

Fig 2: Toe-Out Adjustment (XT)
G50865
