PCV System: Maintenance

Every 15 months/15,000 miles, check all hoses and connections for leakage or deterioration and replace PCV valve and air cleaner.

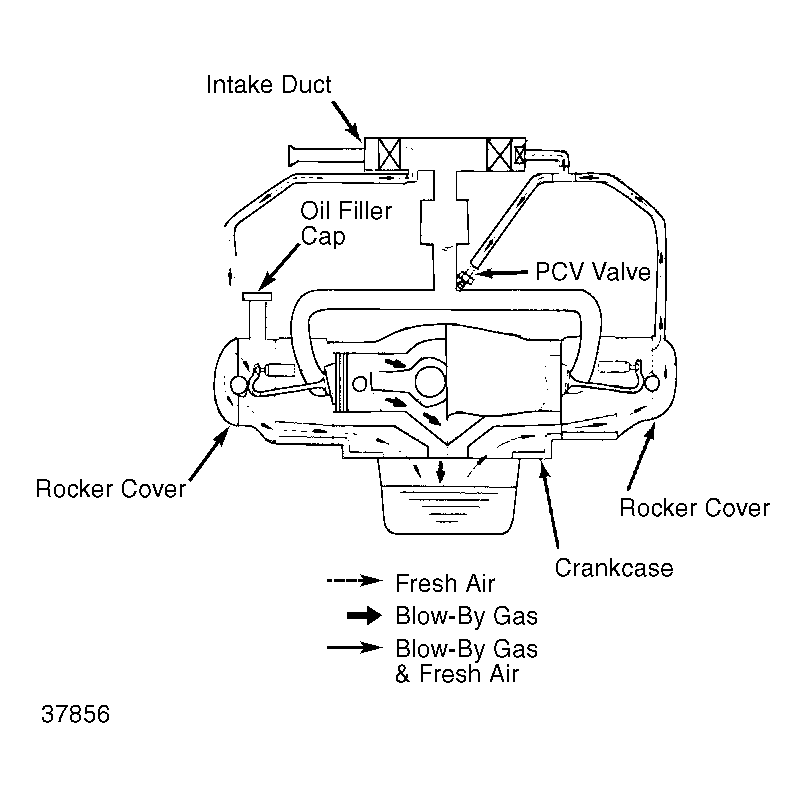

Fig 1: Crankcase Ventilation System (Non-Turbo - Carbureted)

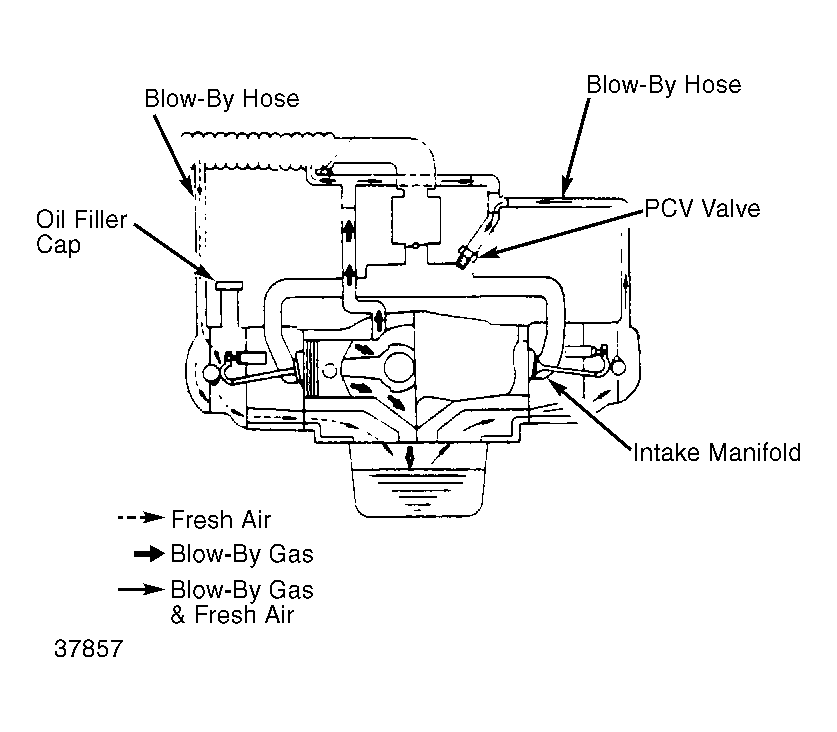

Fig 2: Crankcase Ventilation System (Fuel Injection & Turbo)
