Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | Attached to blower motor unit. |

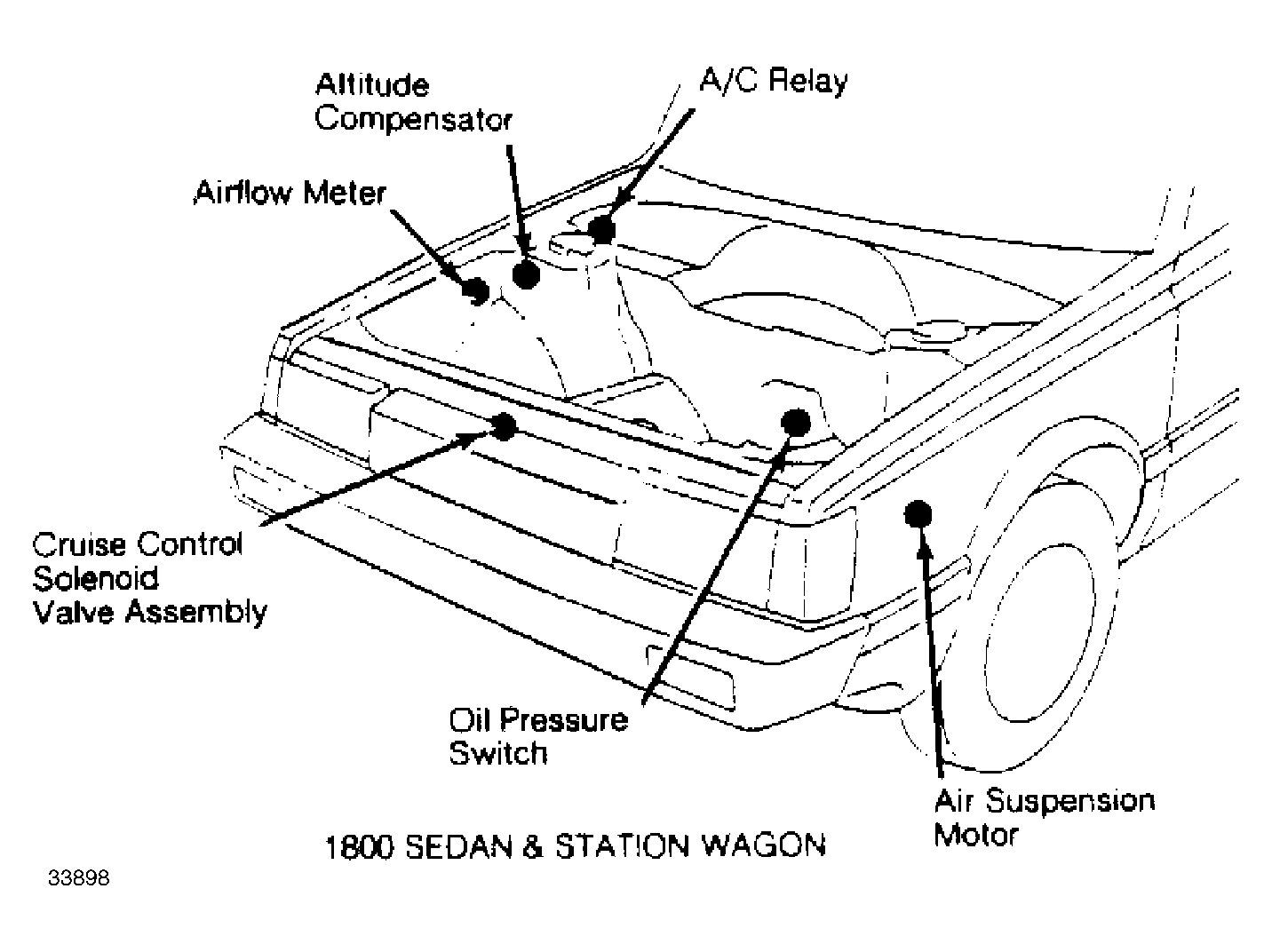

| Airflow Meter | On right wheel apron. See Figure . |
| Altitude Compensator | Attached to right strut tower. See Figure . |
| Brake/Stoplight Checker | Incorporated in rear combination light. |
| Check Connector | Rear center of engine compartment. |
| Check connector (ECC only) | Behind instrument panel near steering column. |
| Fuse Block | Under instrument panel. |

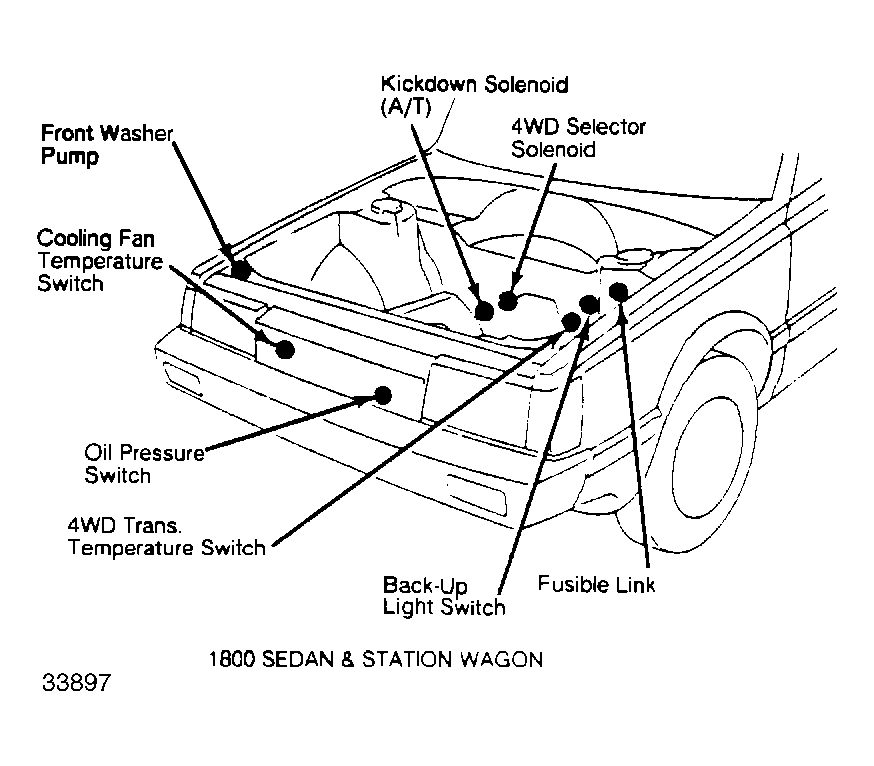

| Fusible Link | In front of left strut tower. See Figure . |

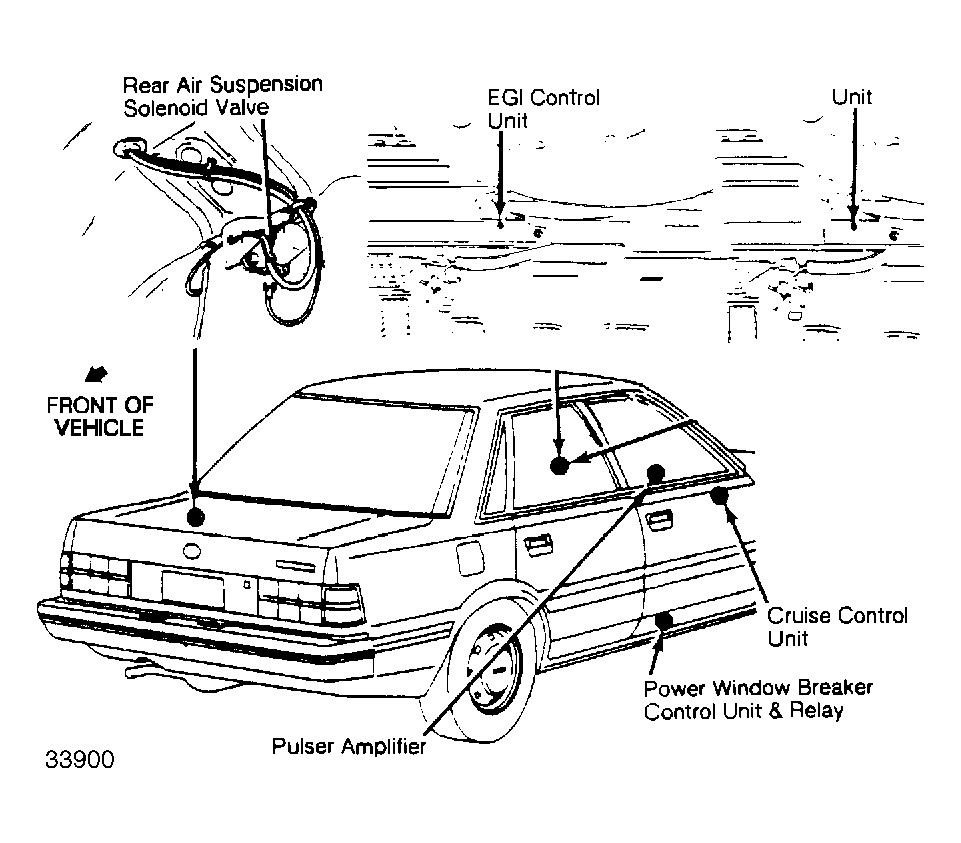

| Pulse Amplifier | Under center of instrument panel. See Figure . |
| Radio Noise Condenser | Next to ignition coil. |
