Wiring Diagrams

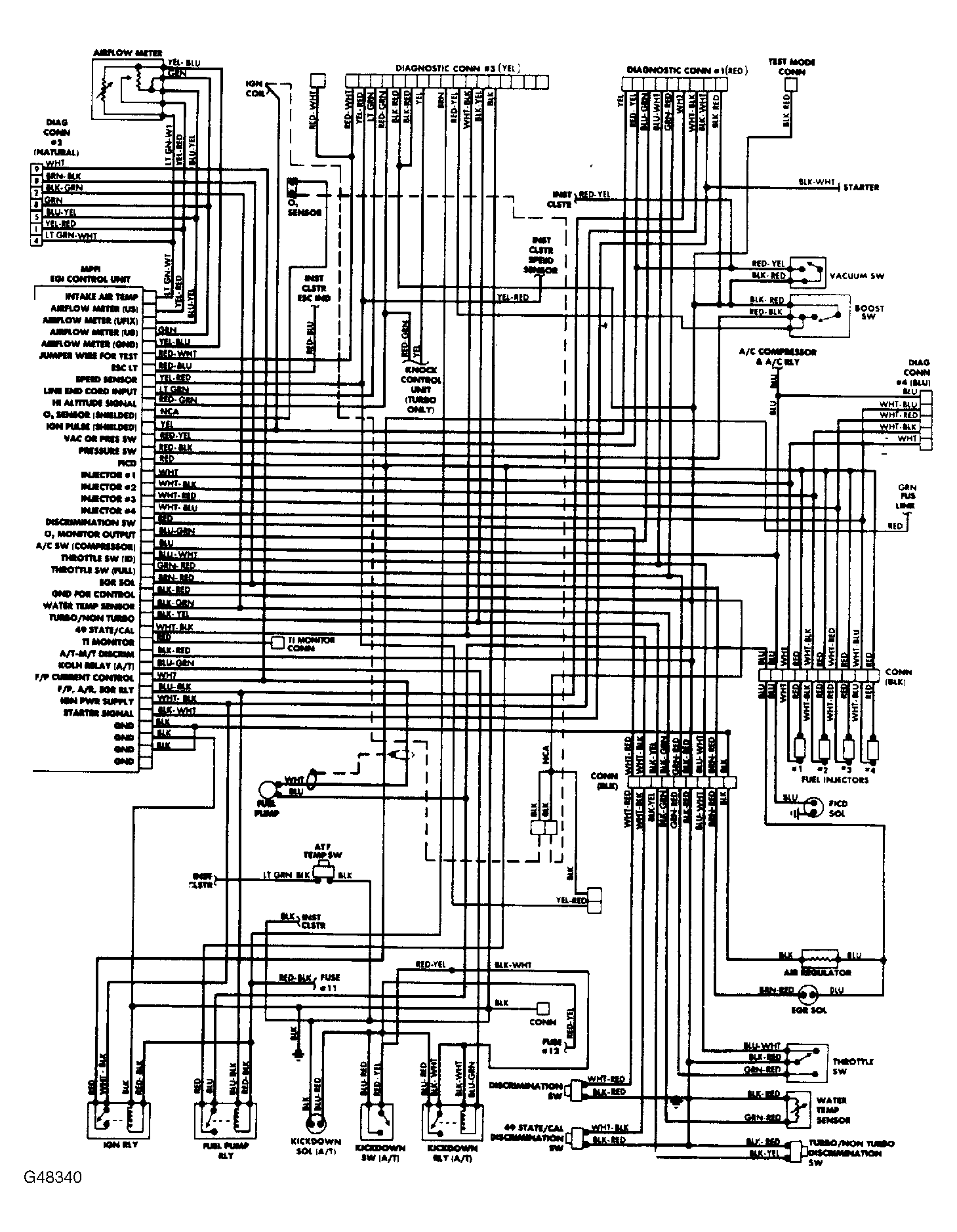

Fig 1: MPFI System Wiring Diagram (All Except XT)

G48340

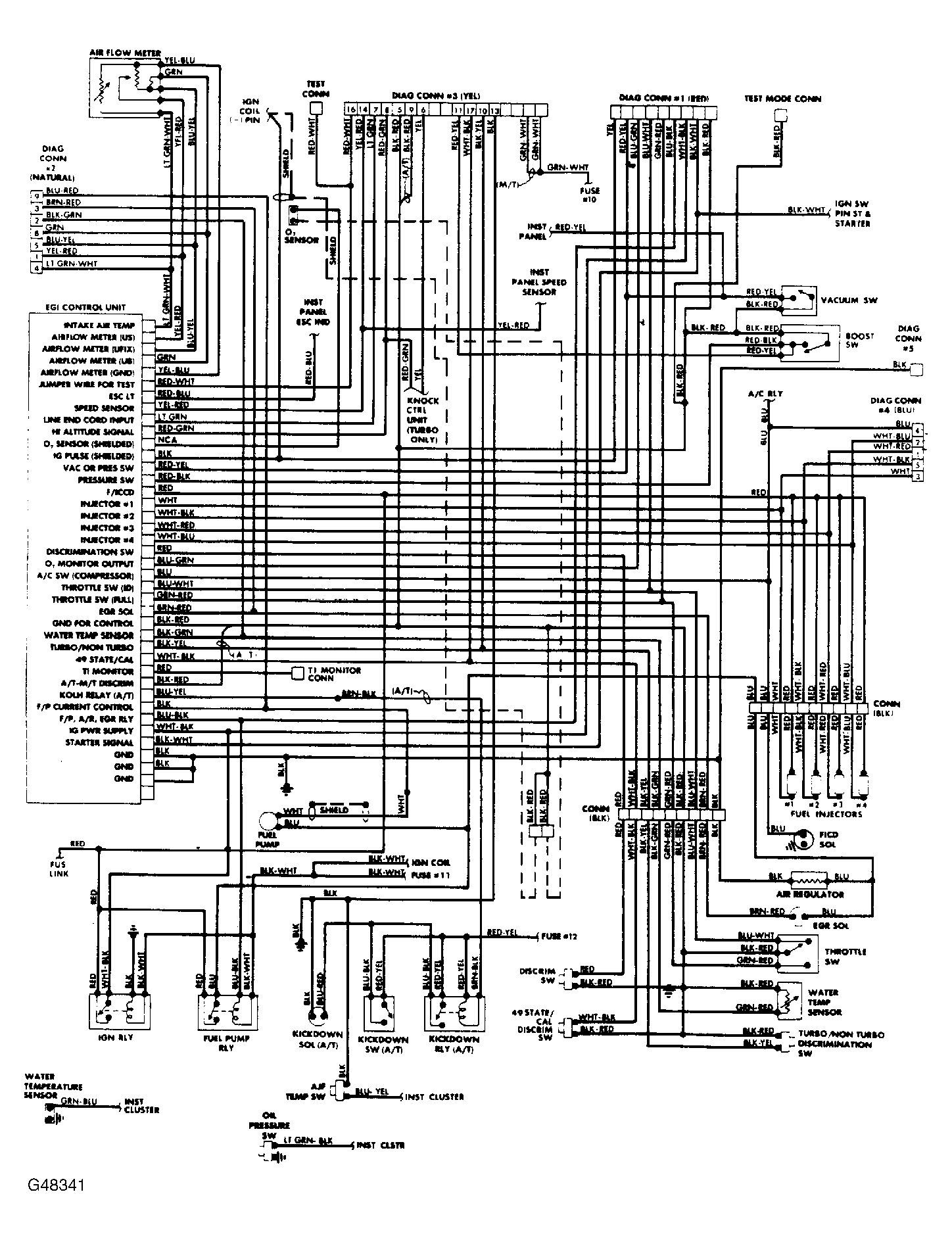

Fig 2: MPFI System Wiring Diagram (XT)

G48341
