Control Units

CONTROL UNITS LOCATION

Component Location

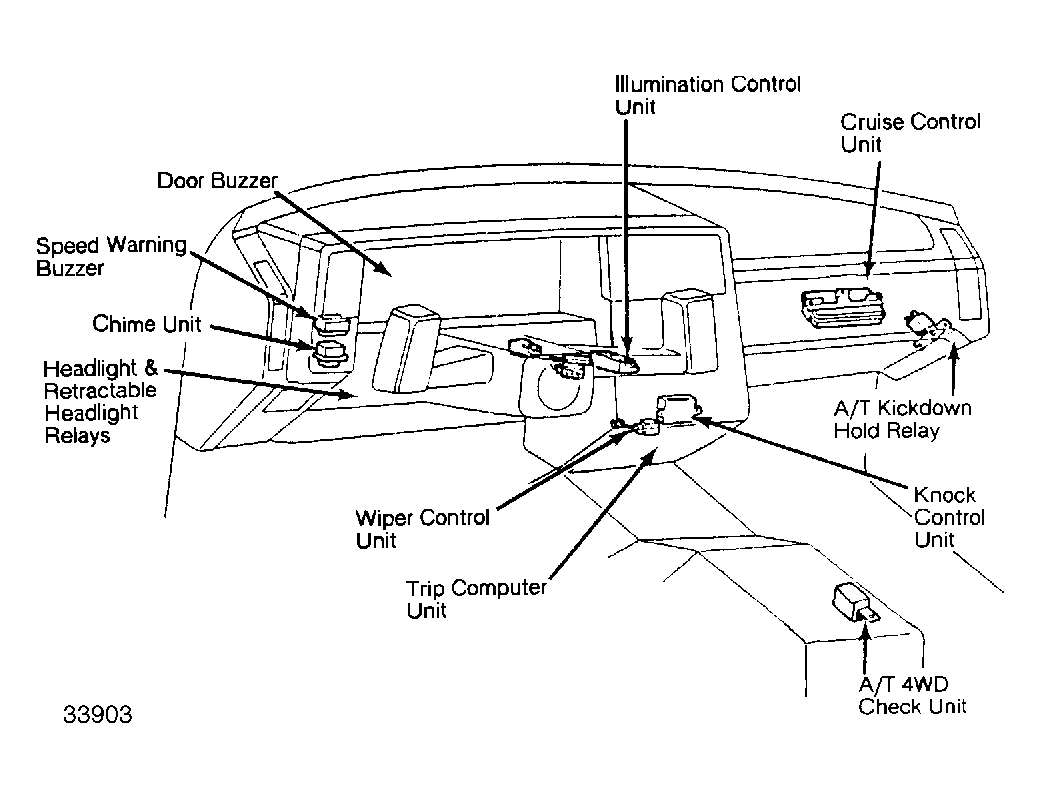

Cruise Control Unit Behind instrument panel. See Figure .
EGI Control Unit In trunk, near front center. See Figure .
Illumination Control Unit Incorporated in control wing. See Figure .
Knock Control Unit Behind instrument panel. See Figure .
MPFI Inj. Control Unit In forward portion of trunk.
Pneumatic Susp. Control Unit Under driver's seat. See Figure .
Power Window Control Unit Under front passenger's seat. See Figure .
Wiper Control Unit Behind instrument panel. See Figure .
