Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| Airflow Meter | On right wheel apron. |

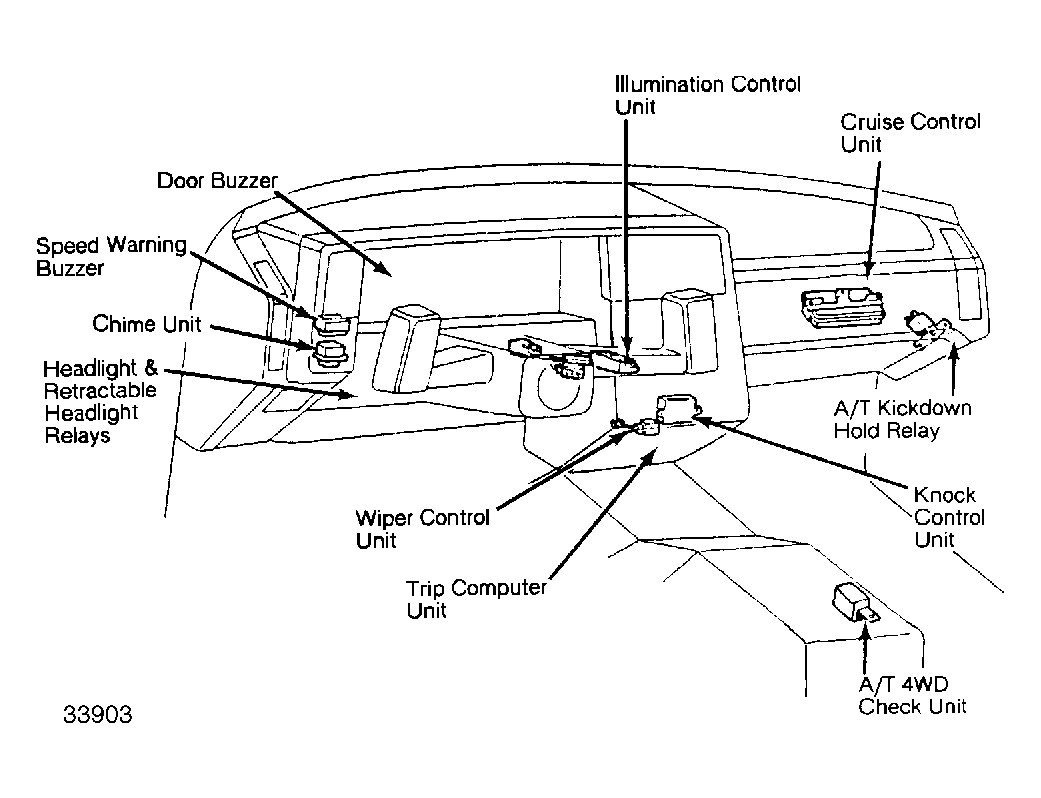

| A/T 4WD Check Unit | Inside of center console. See Figure . |
| Check Connectors | In engine compartment, near left shock tower. |

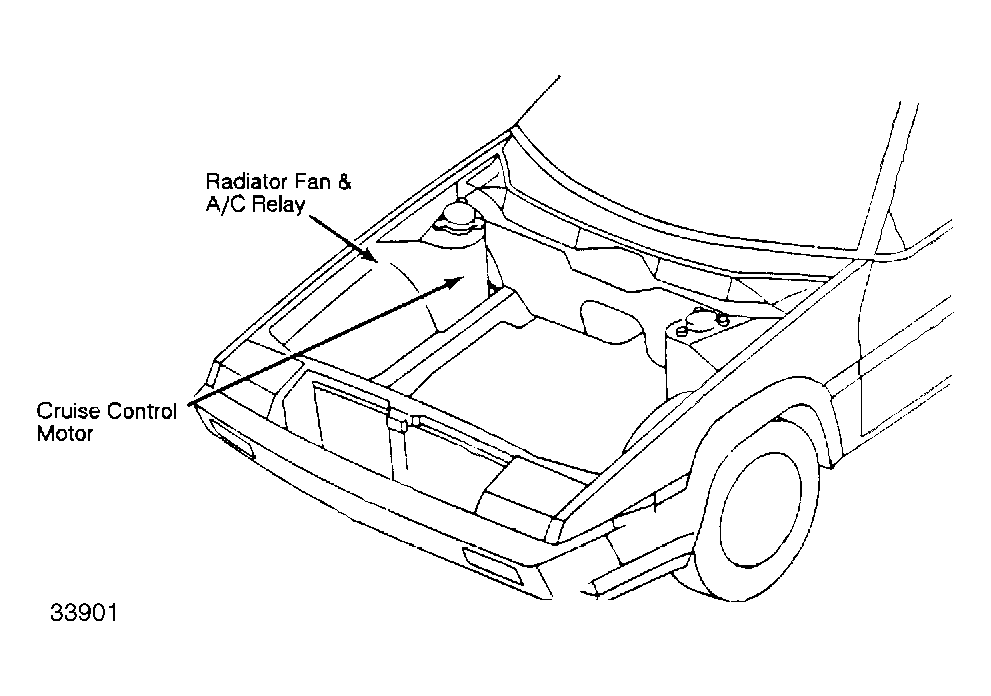

| Cruise Control Actuator | Attached to passenger's toe board. |
| Fusible Link | In front of left strut tower. See Figure . |
| Power Window Circuit Breaker | Under front passenger's seat. |
| Pulsar Amplifier | Behind instrument panel. |
| Stoplight Check Unit | In rear combination light. |
| Trip Computer Unit | Behind instrument panel. See Figure . |
