Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Unit | Next to seat, behind left rear quarter panel. |
| A/C Cut-Out Unit (Auto.Trans.) | Next to seat, behind right rear quarter panel. See Figure . |

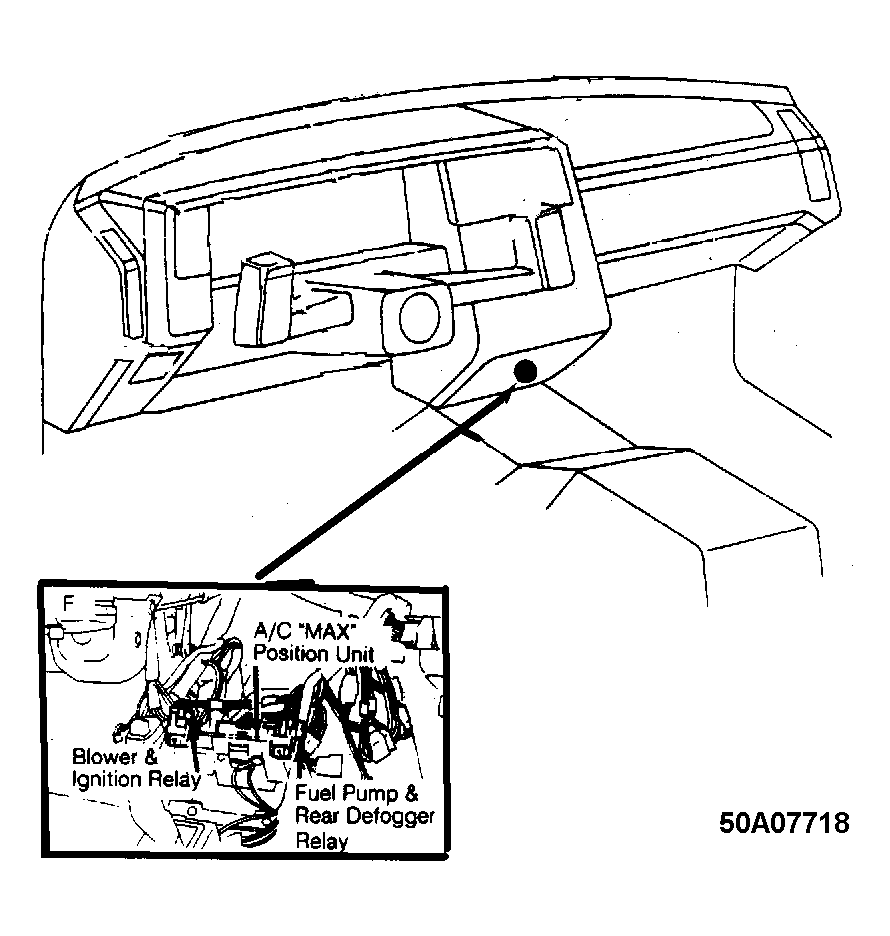

| A/C "MAX" Position Unit | On center of dash, behind center console. See Figure . |

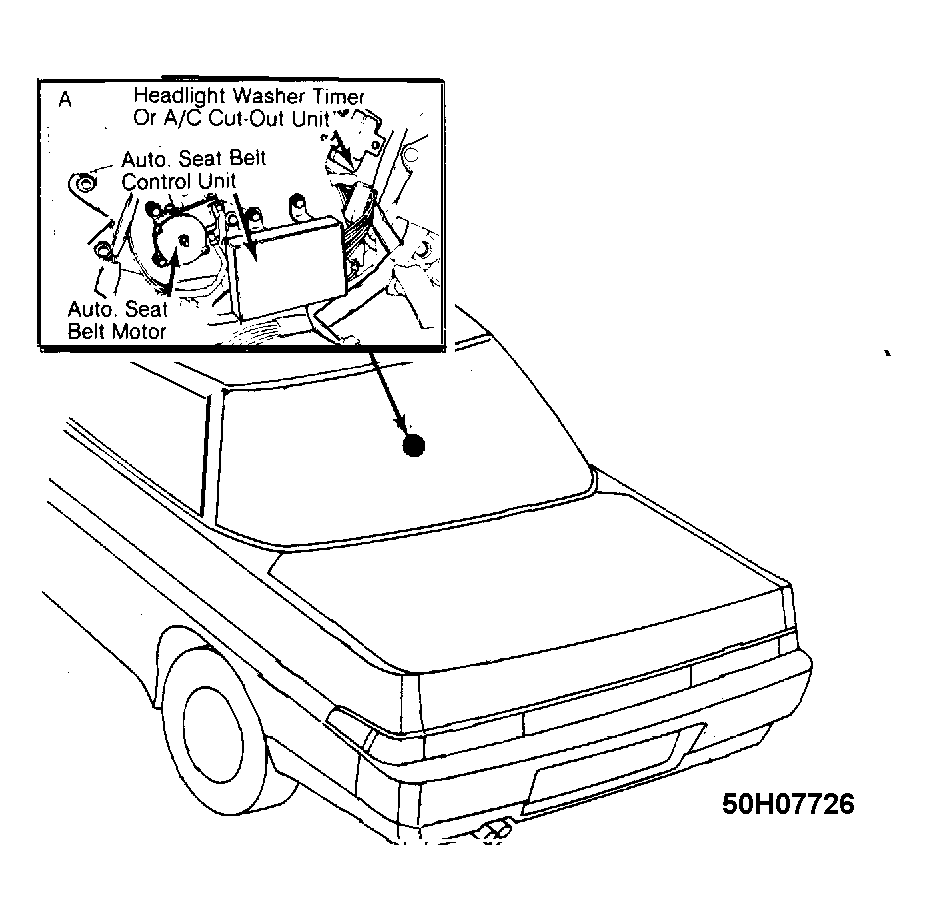

| Auto. Seat Belt Control Unit | Next to seat, behind right quarter panel. See Figure . |

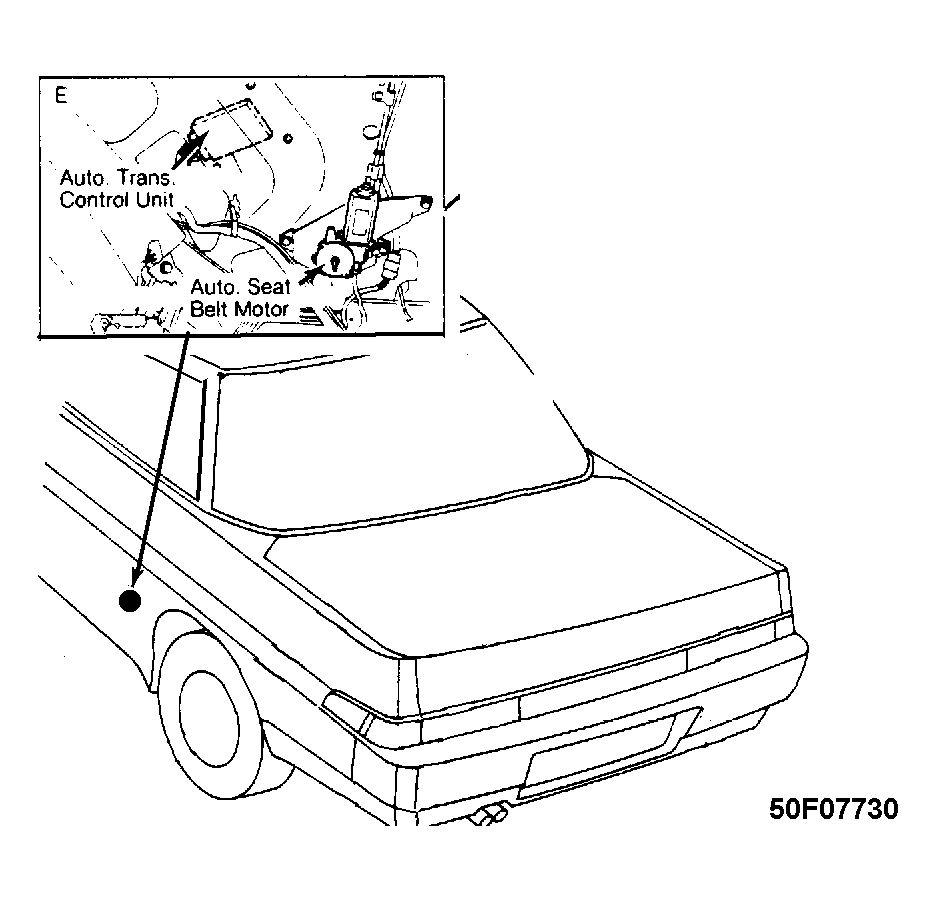

| Auto. Trans. Control Unit | Next to seat, behind left quarter panel. See Figure . |

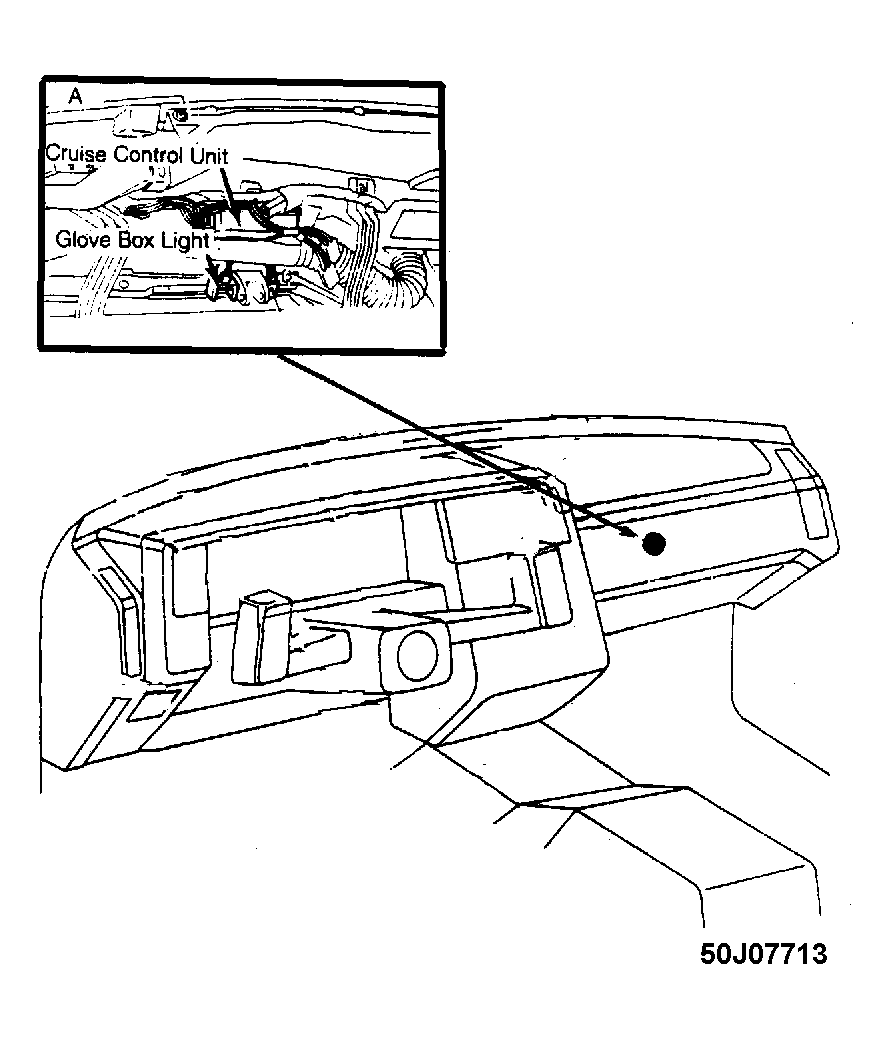

| Cruise Control Unit | Behind glove box, above glove box light. See Figure . |
| Headlight Washer Control Unit | Next to seat, behind right rear quarter panel. |

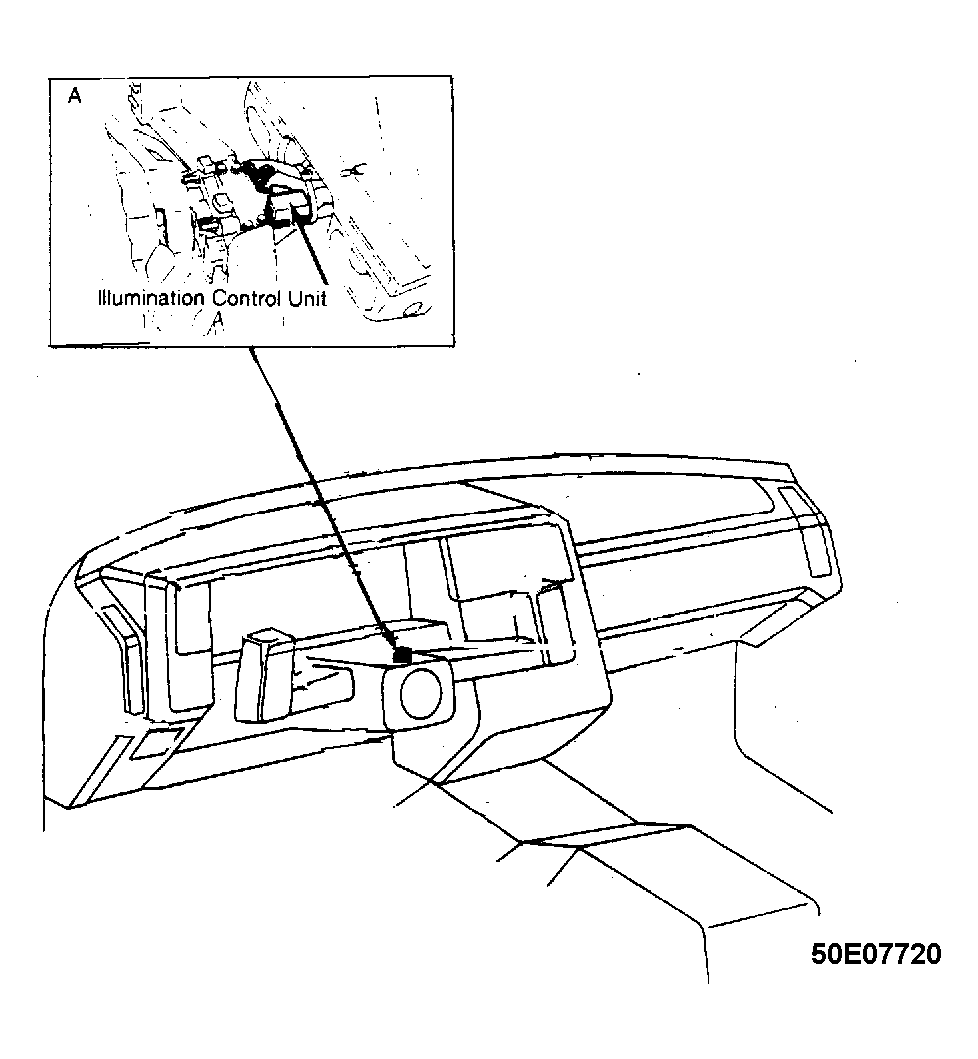

| Illumination Control Unit | Behind control wing, on steering column support. See Figure . |

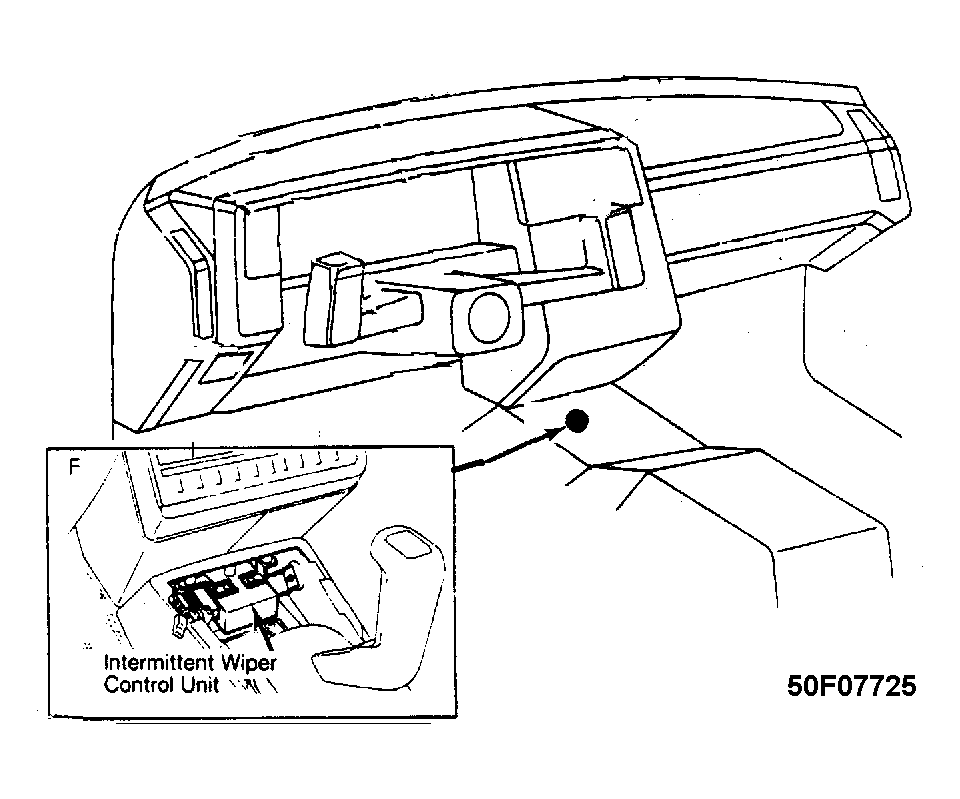

| Intermittent Wiper Control Unit | On center console, in front of shift lever. See Figure . |

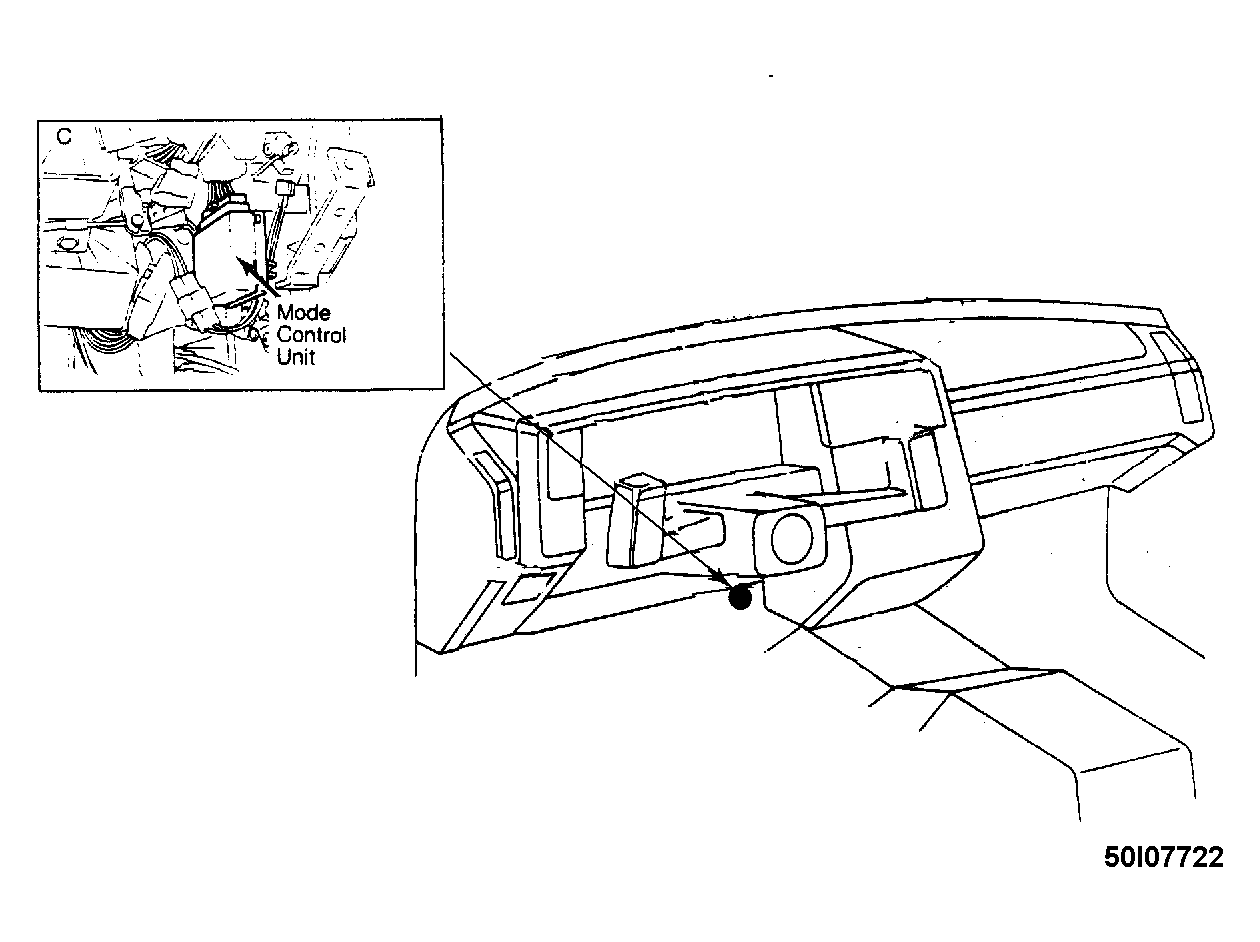

| Mode Control Unit | On left side of center console, on A/C-heater housing. See Figure . |

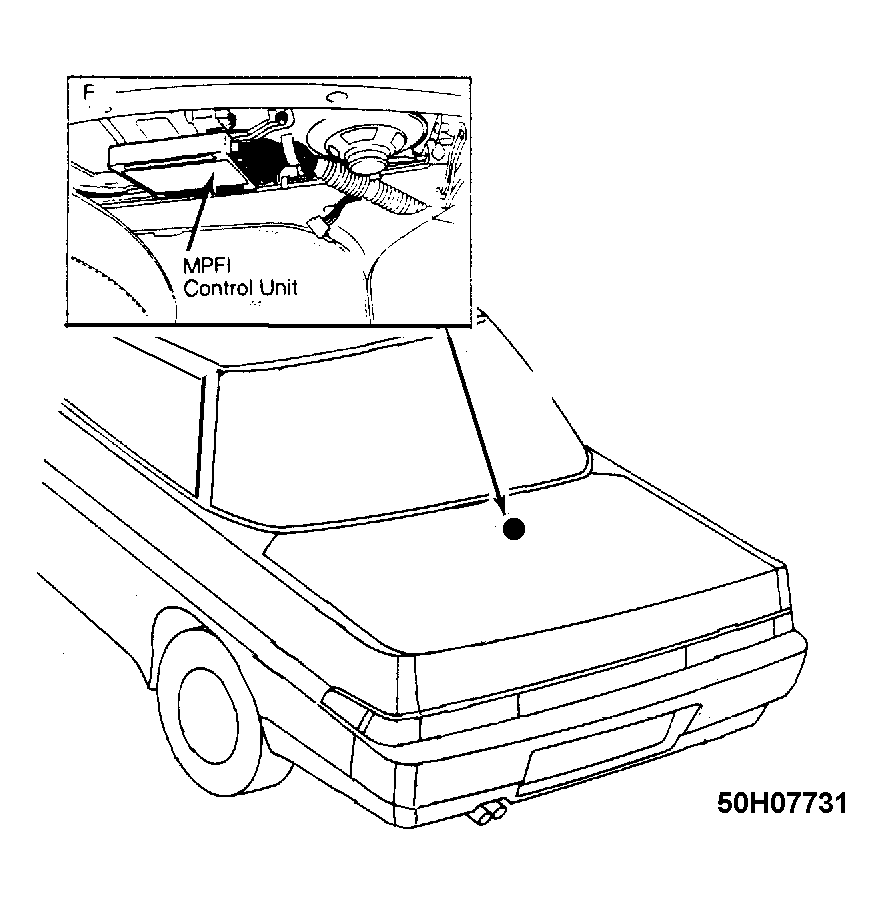

| Multi Point Fuel Injection (MPFI) Control Unit | In trunk, between rear speakers on package tray. See Figure . |

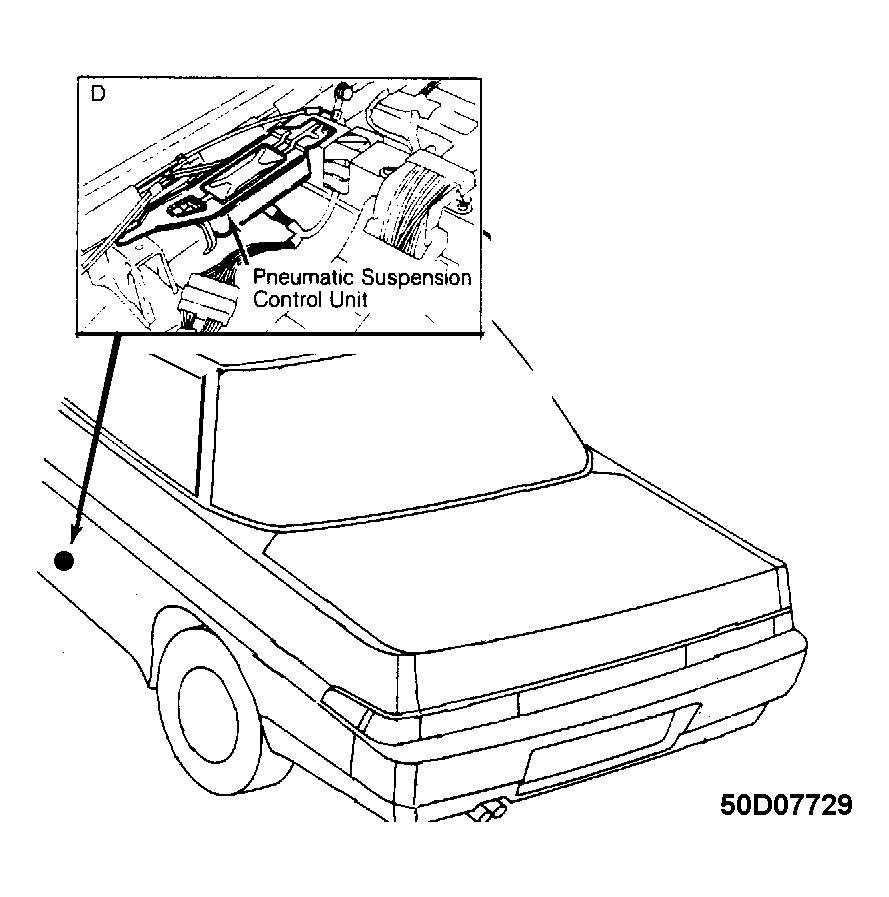

| Pneumatic Suspension Control Unit | Under driver's seat. See Figure . |

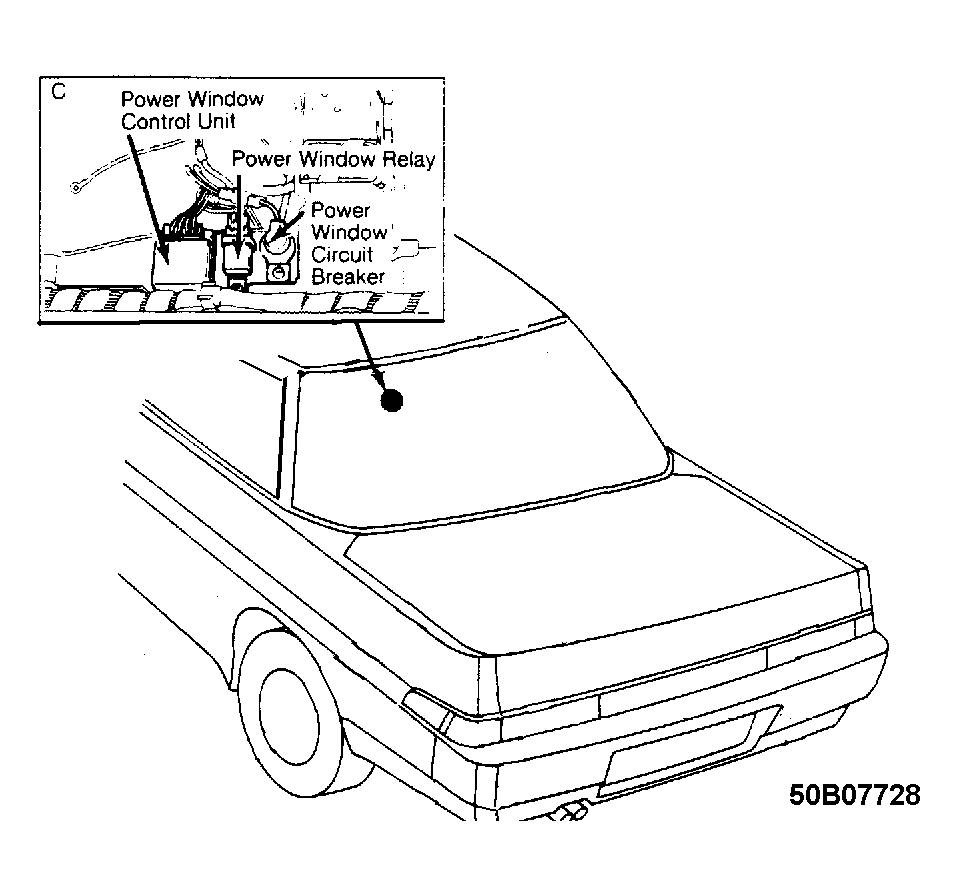

| Power Window Control Unit | Under front passenger's seat. See Figure . |

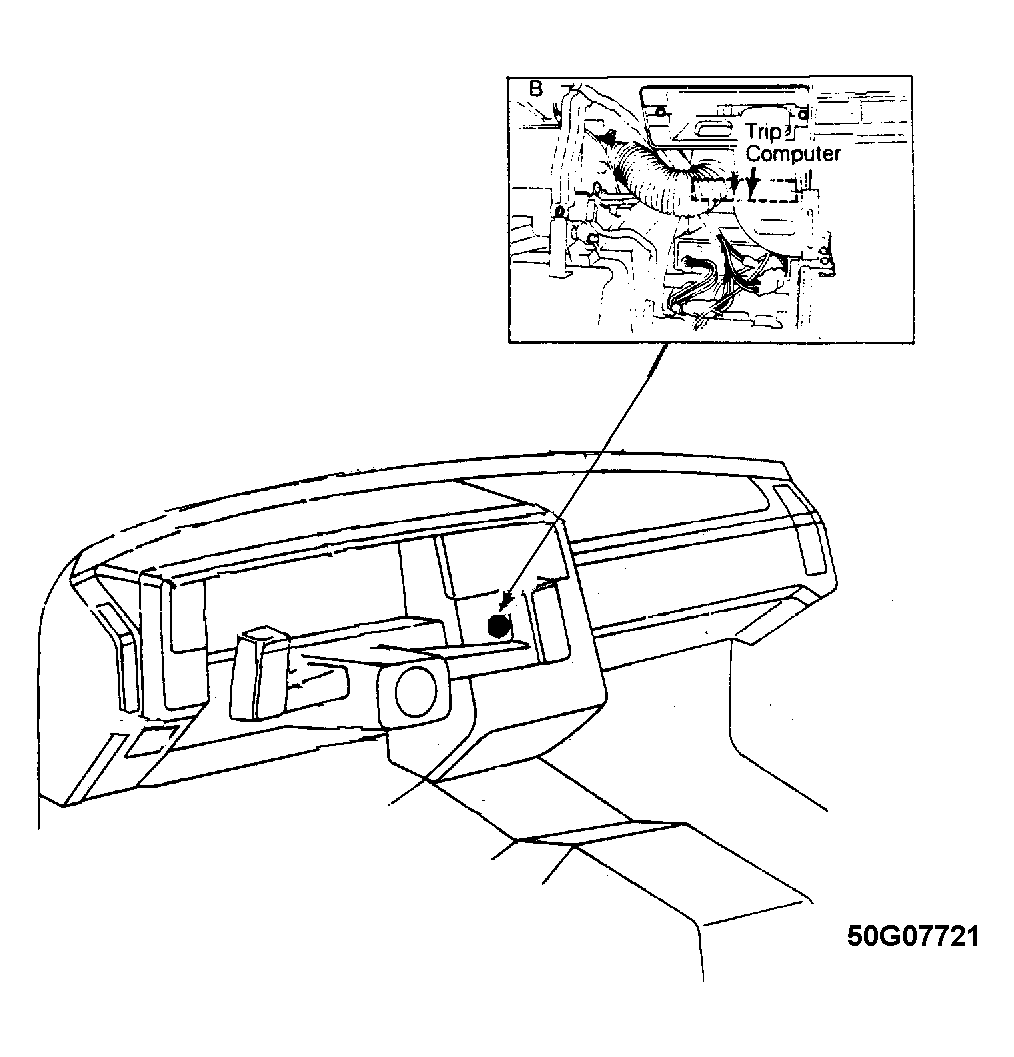

| Trip Computer | On center of dash, behind center console. See Figure . |
