Trouble Code 13, Crank Angle Sensor

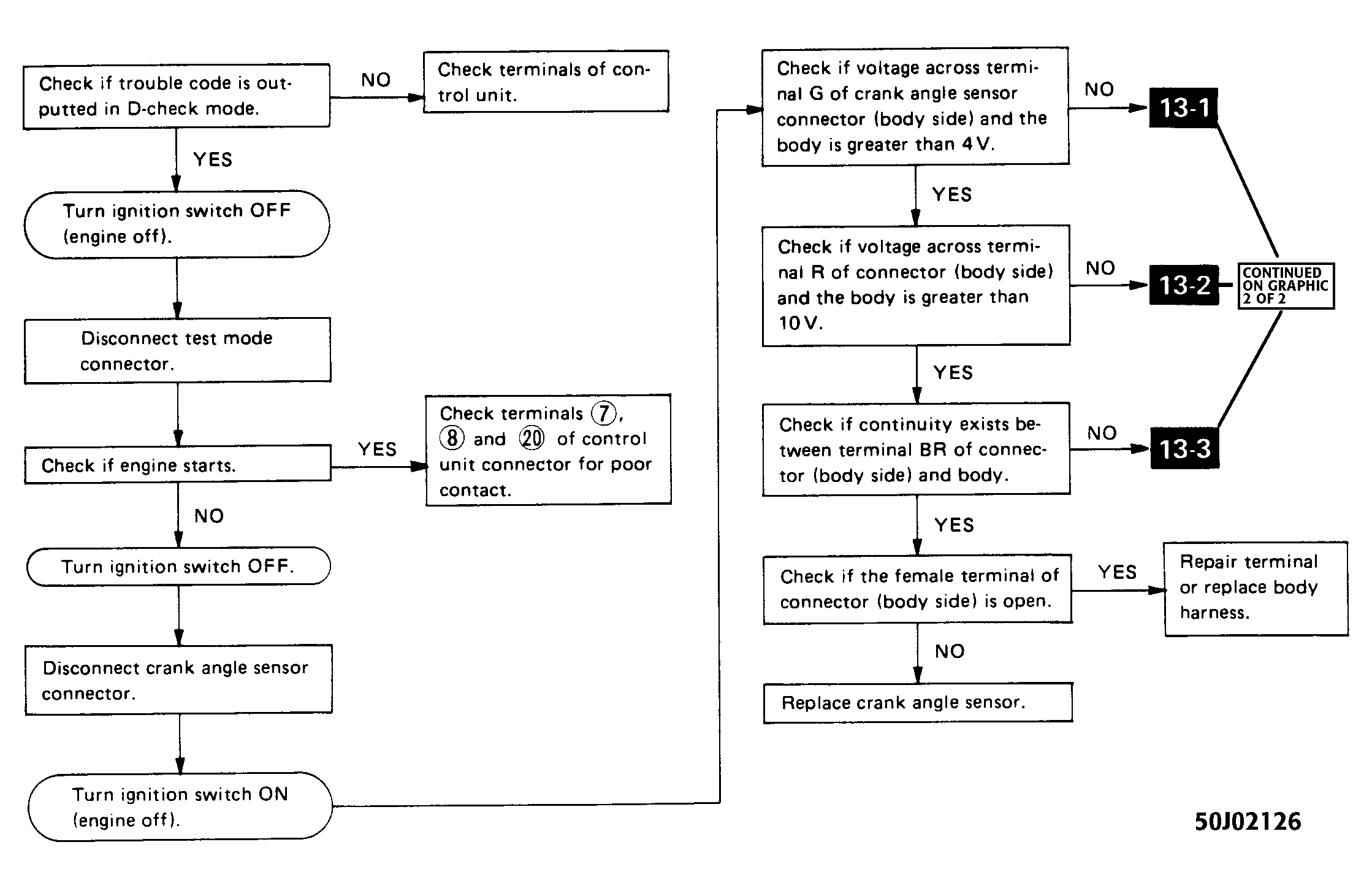

Fig 1: Trouble Code 13, Crank Angle Sensor Part 1 of 2
G50J02126

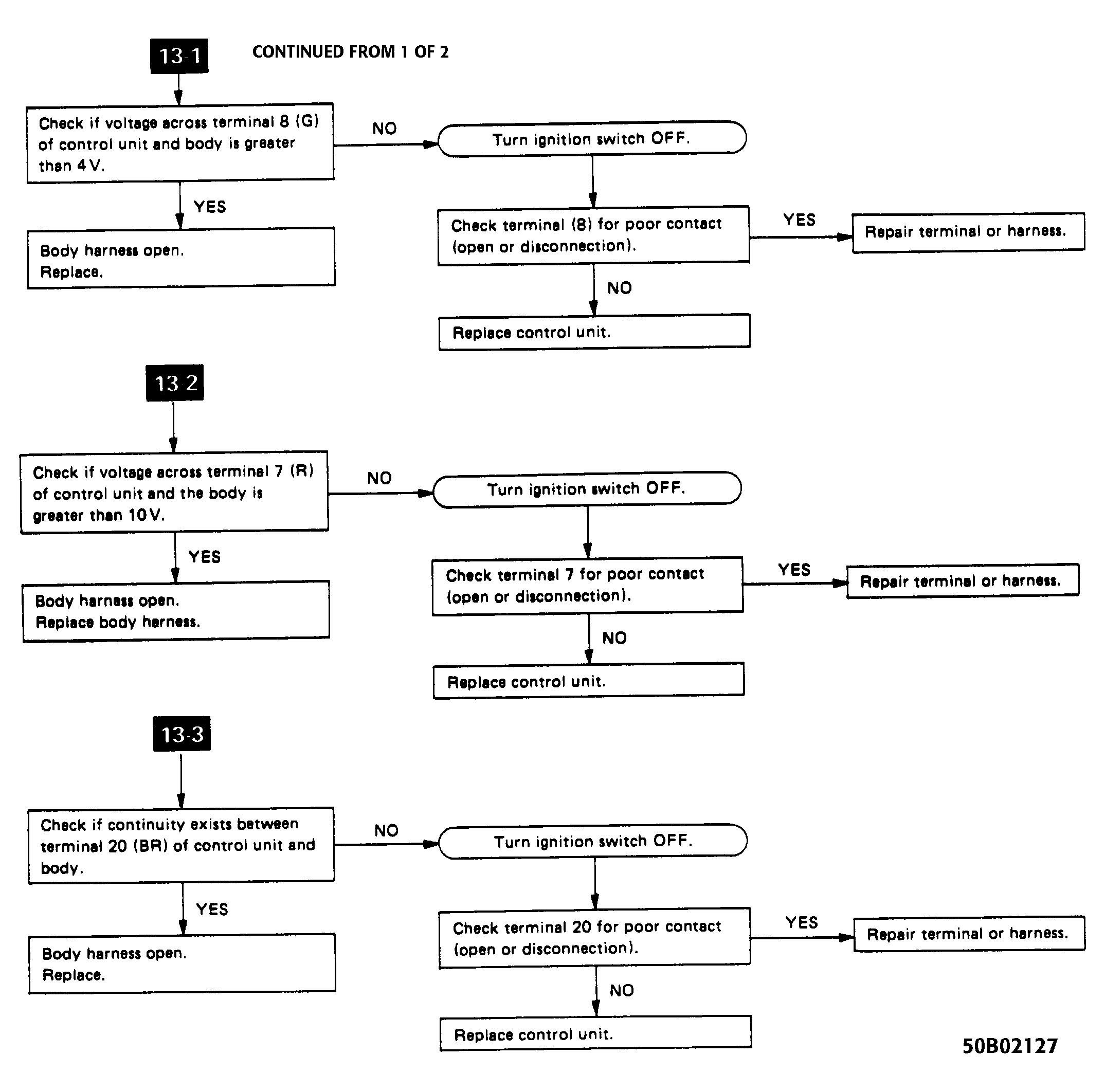

Fig 2: Trouble Code 13, Crank Angle Sensor Part 2 of 2
G50B02127
