Trouble Code 11, Crank Angle Sensor

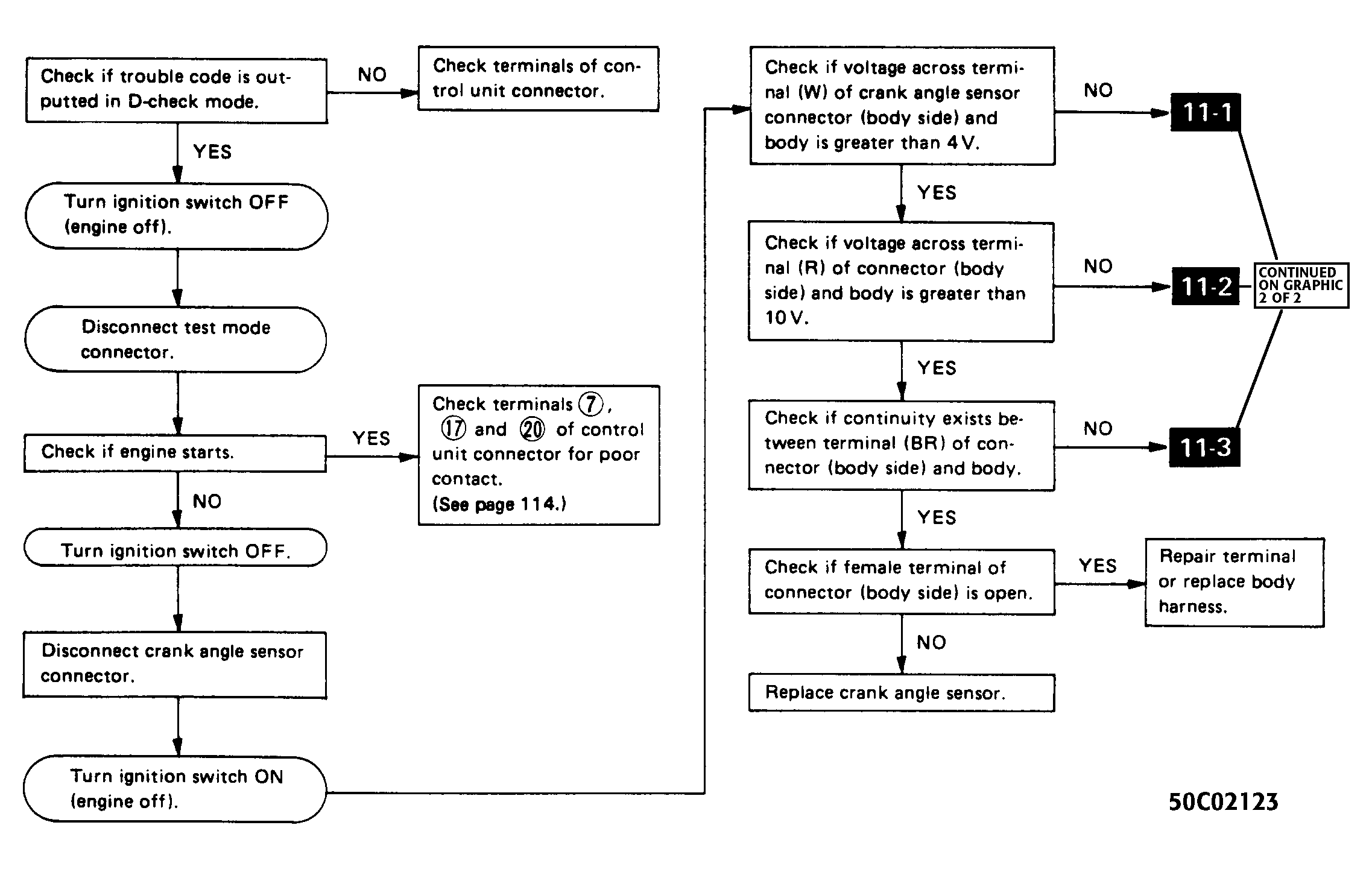

Fig 1: Trouble Code 11, Crank Angle Sensor (1 of 2)
G50C02123

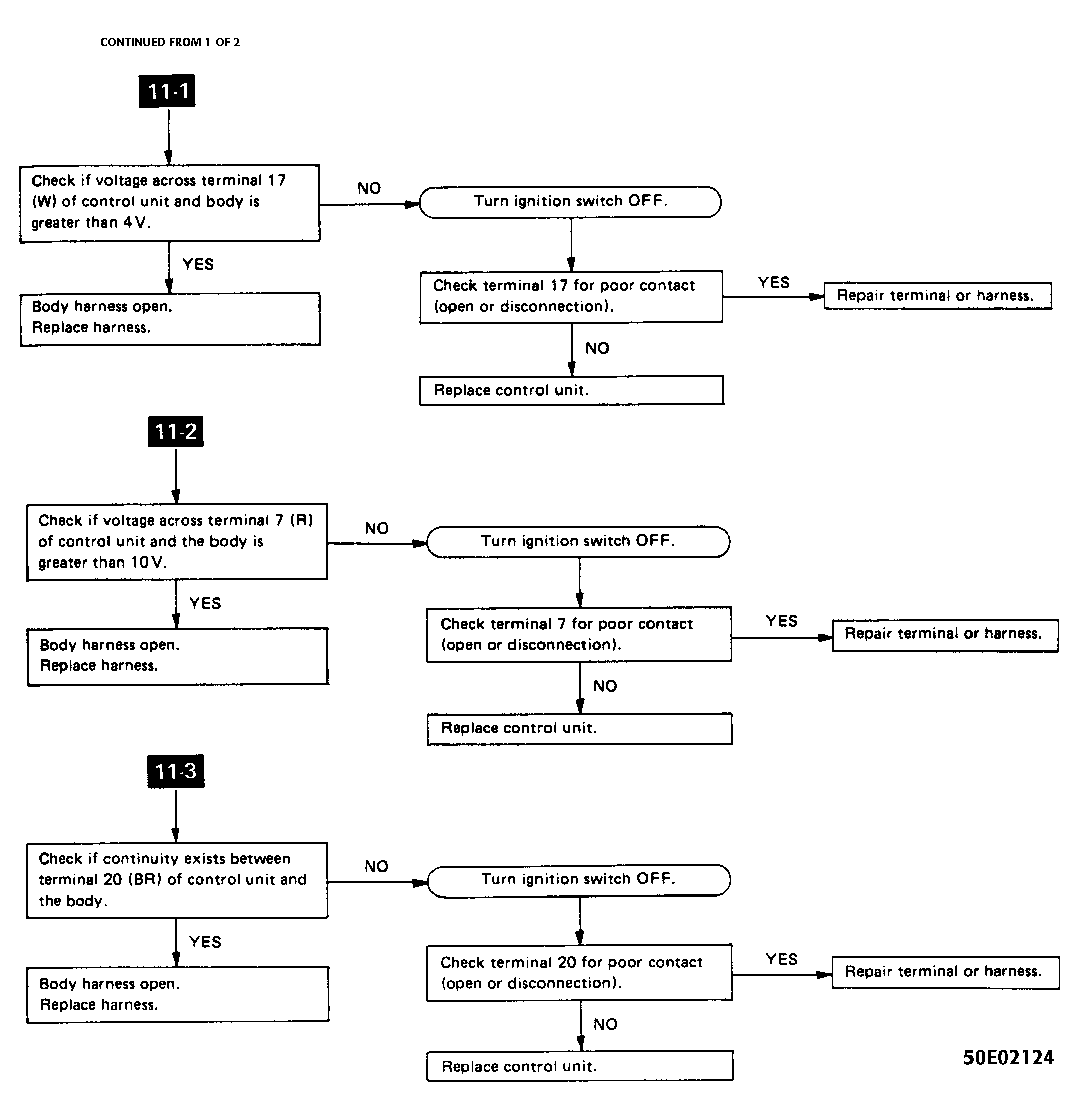

Fig 2: Trouble Code 11, Crank Angle Sensor (2 of 2)
G50E02124
