Up-Shift Control System

Control system is provided on automatic transmission equipped vehicles only and is used to reduce O emissions by providing rapid engine warm-up. If engine is started while coolant temperature is in the preset temperature range, ECM holds transmission in a kickdown state for a certain duration. See Fig 4 .

Fig 1: Ignition Control System (Carbureted)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Ignition Control System (Carbureted)

Courtesy of SUBARU OF AMERICA, INC.

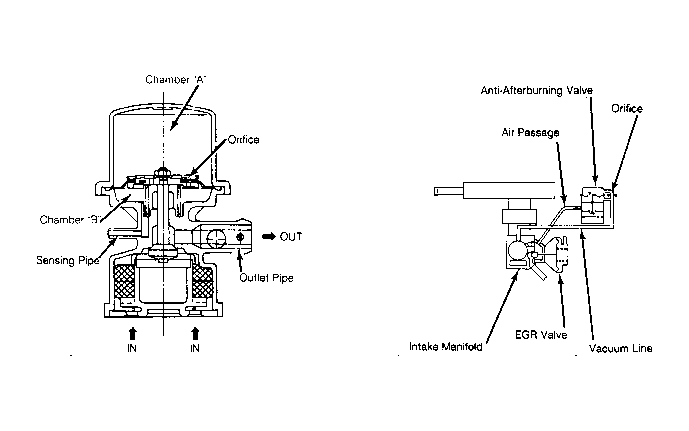

Fig 3: Anti-Afterburning System (Carbureted - Except Justy)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Up-Shift Control System

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Ignition Control System (SPFI)

Courtesy of SUBARU OF AMERICA, INC.
