Trouble Shooting For Engine Starting Failure: Notes

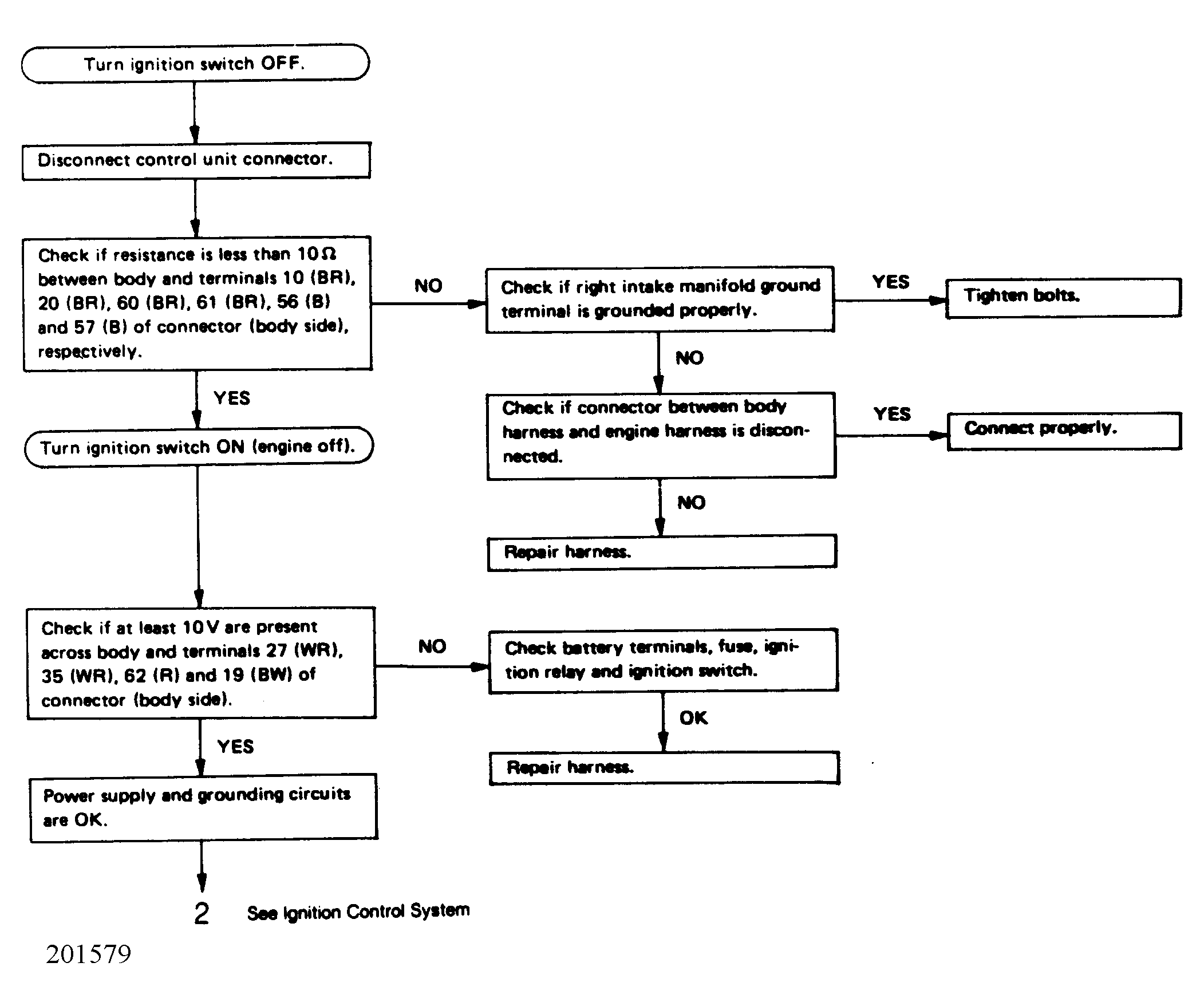

Fig 1: Ground & Control Unit Power Supply

G201579

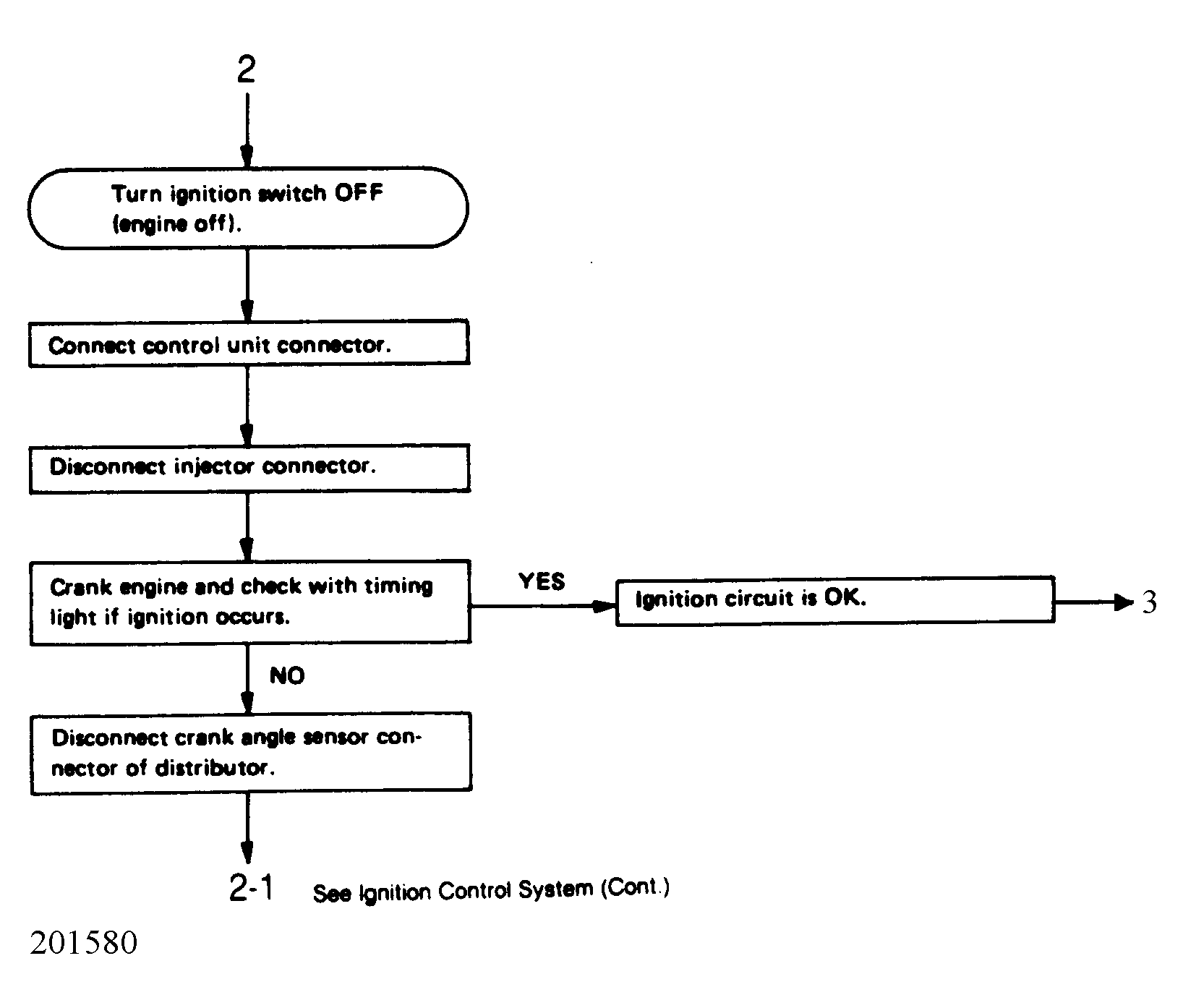

Fig 2: Ignition Control System (1 of 2)

G201580

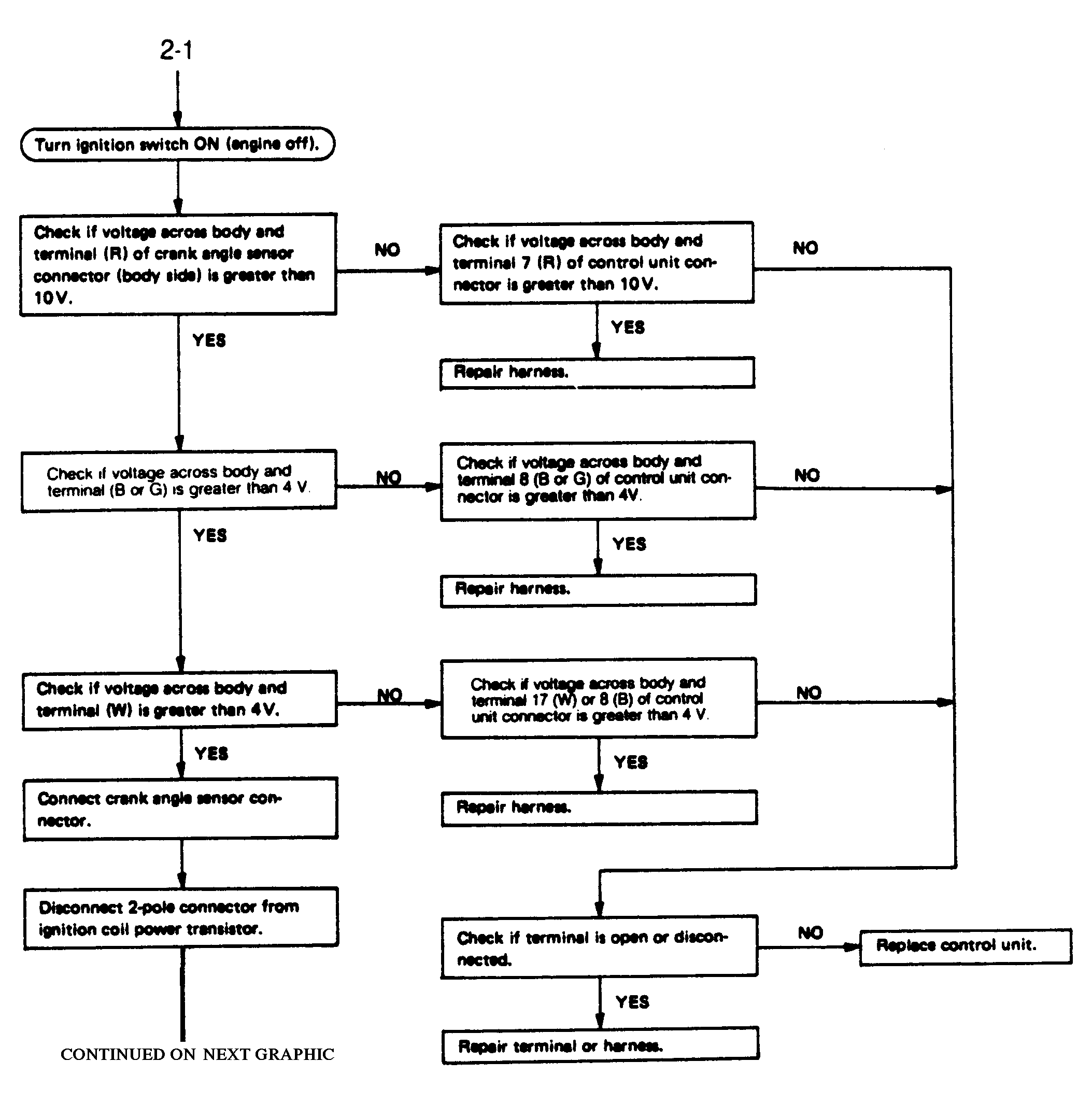

Fig 3: Ignition Control System (2 of 2)

G201581

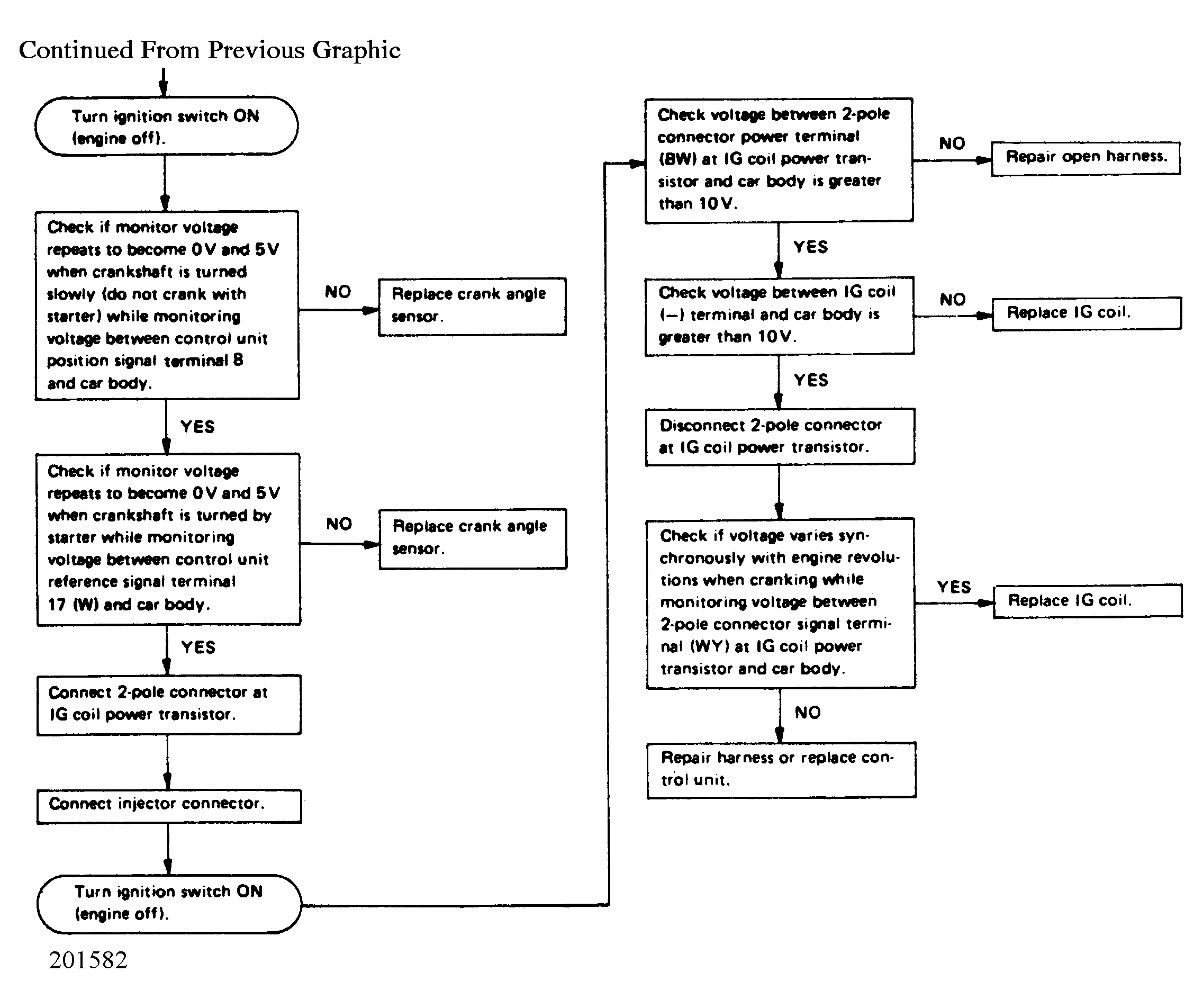

Fig 4: Ignition Control System (2 of 2)

G201582

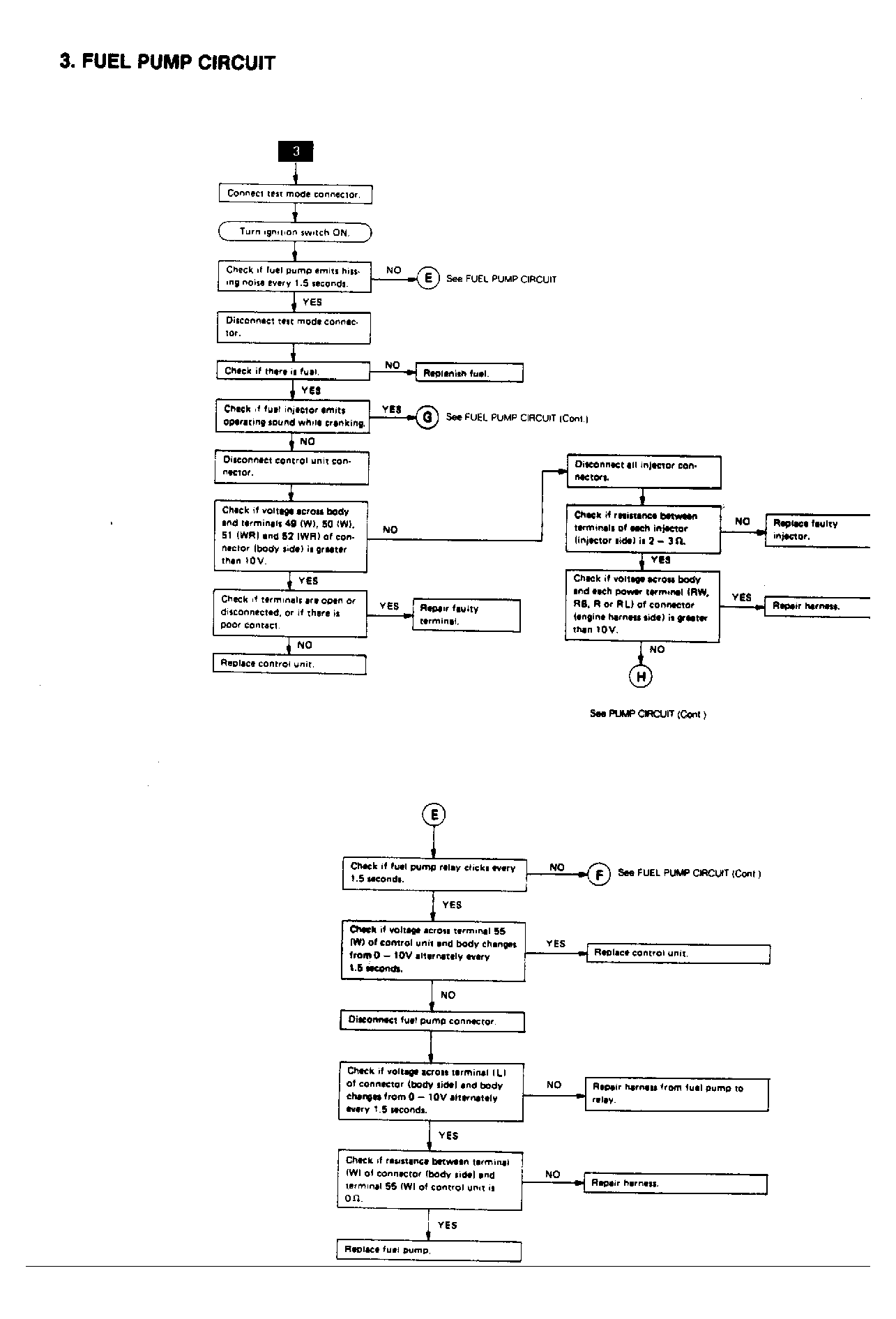

Fig 5: Fuel Pump Circuit (Exc. XT Model) (1 of 2)

G61865

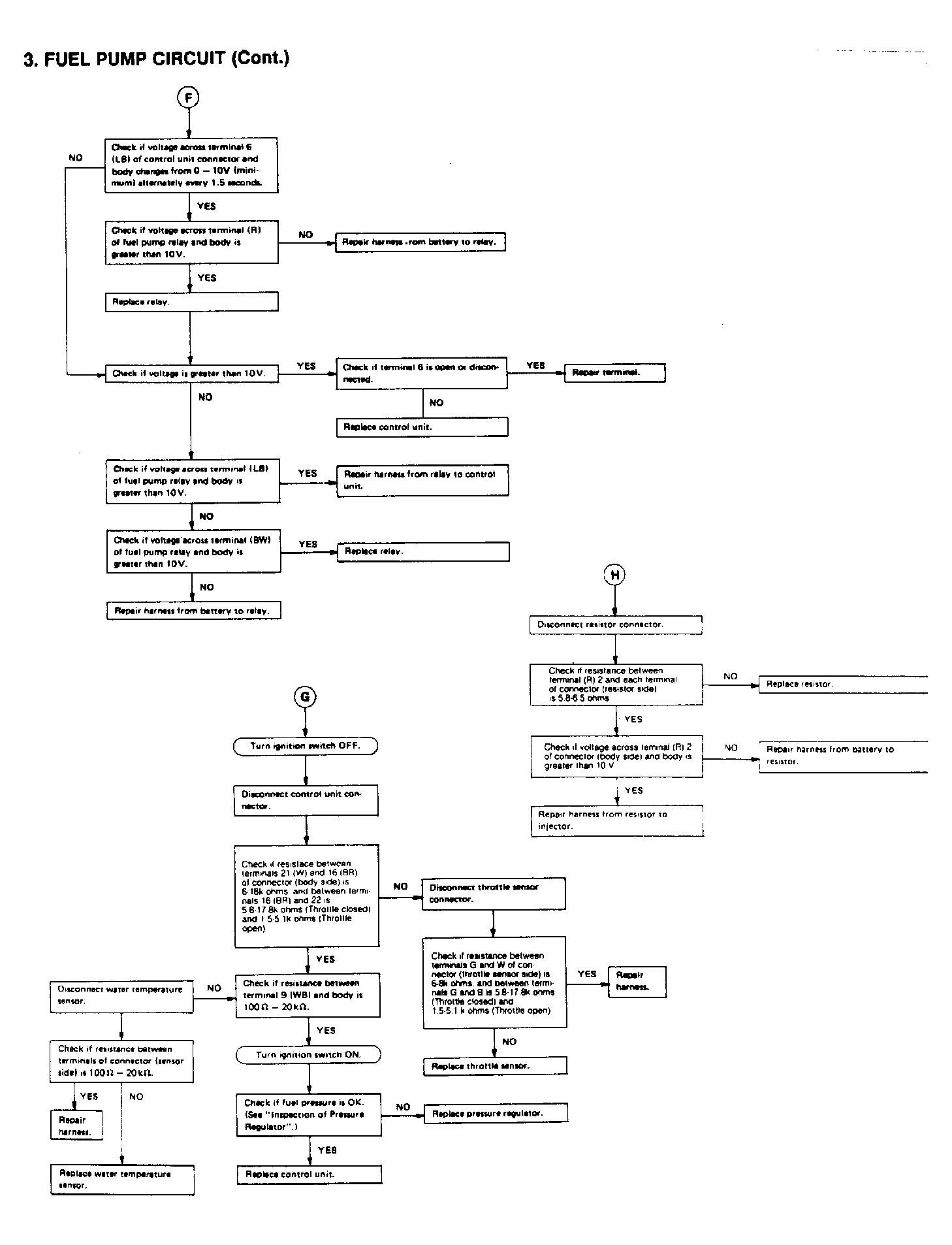

Fig 6: Fuel Pump Circuit (Exc. XT Model) (2 of 2)

G61866

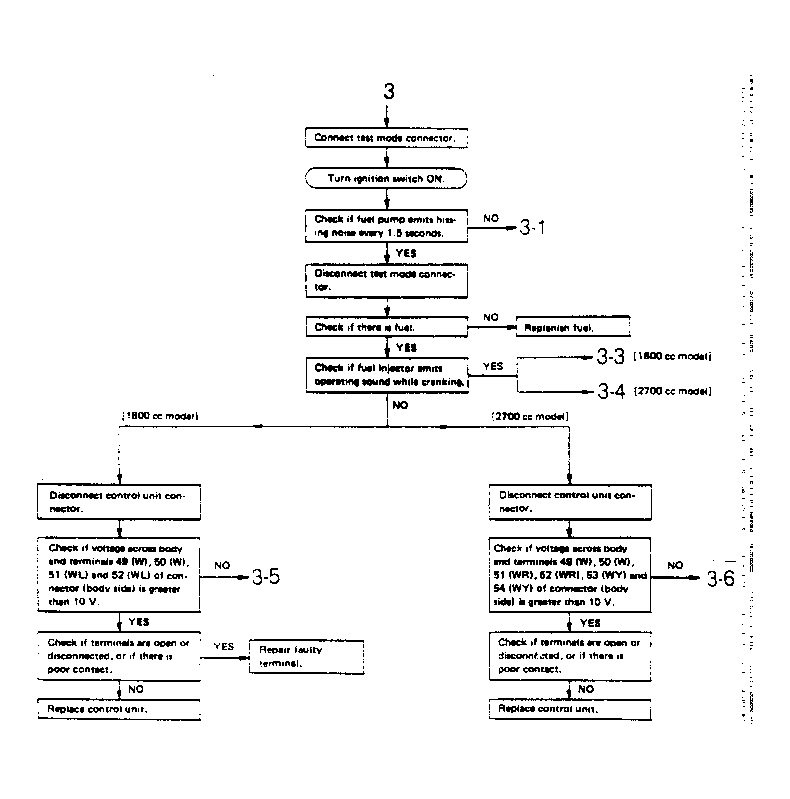

Fig 7: Fuel Pump Circuit (XT Model) (1 of 7)

G95112

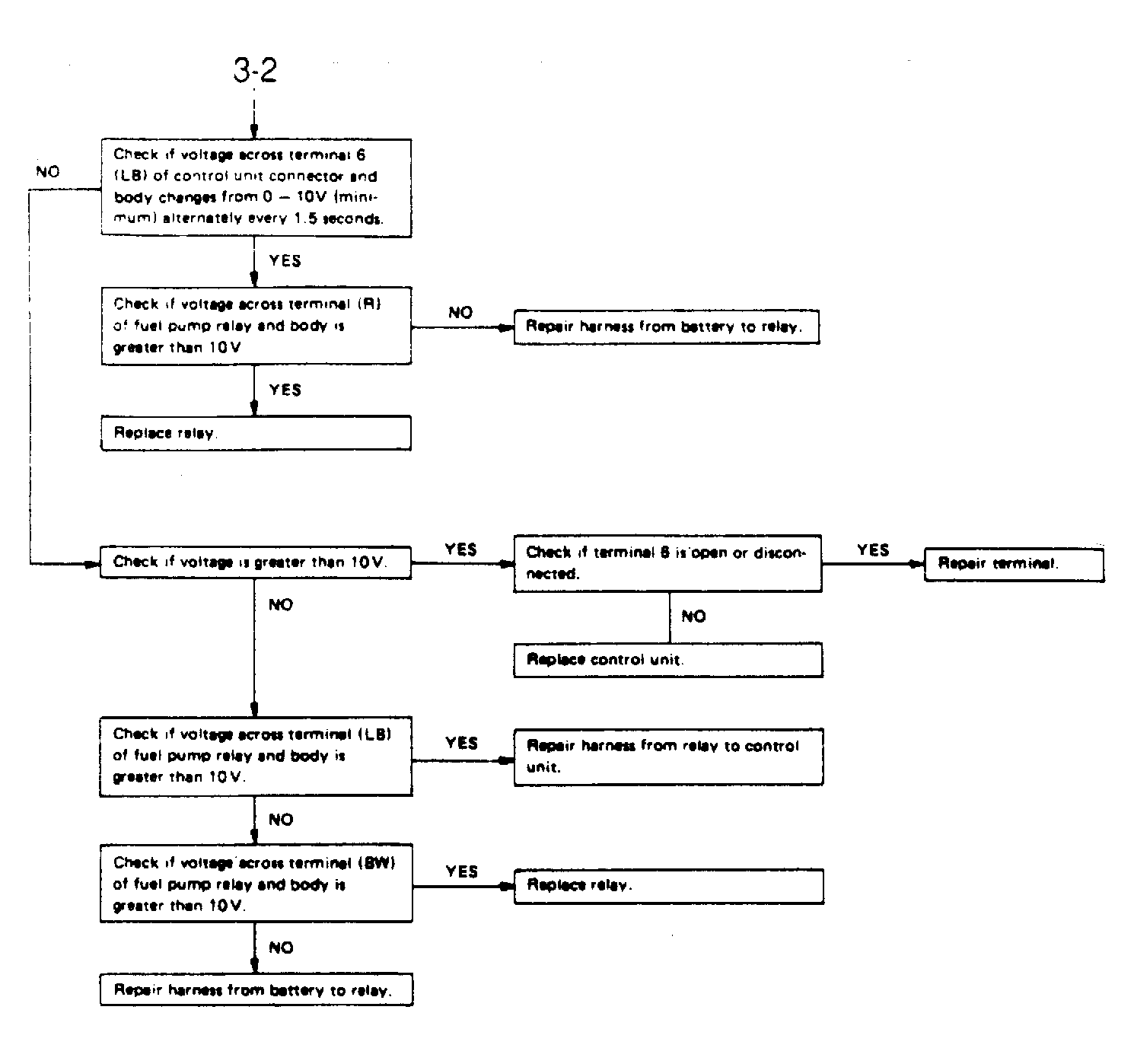

Fig 8: Fuel Pump Circuit (XT Model) (2 of 7)

G95674

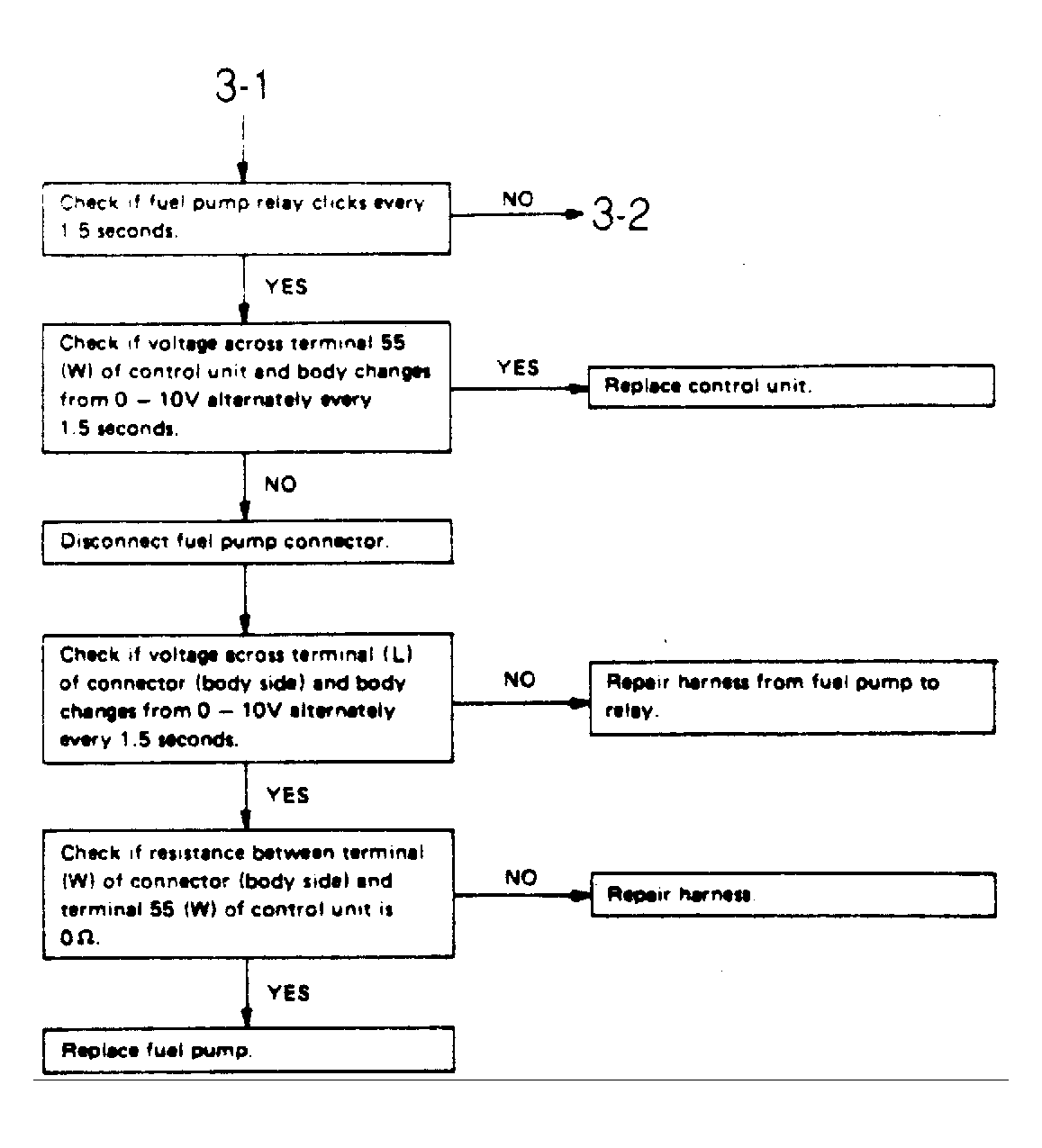

Fig 9: Fuel Pump Circuit (XT Model) (3 of 7)

G95673

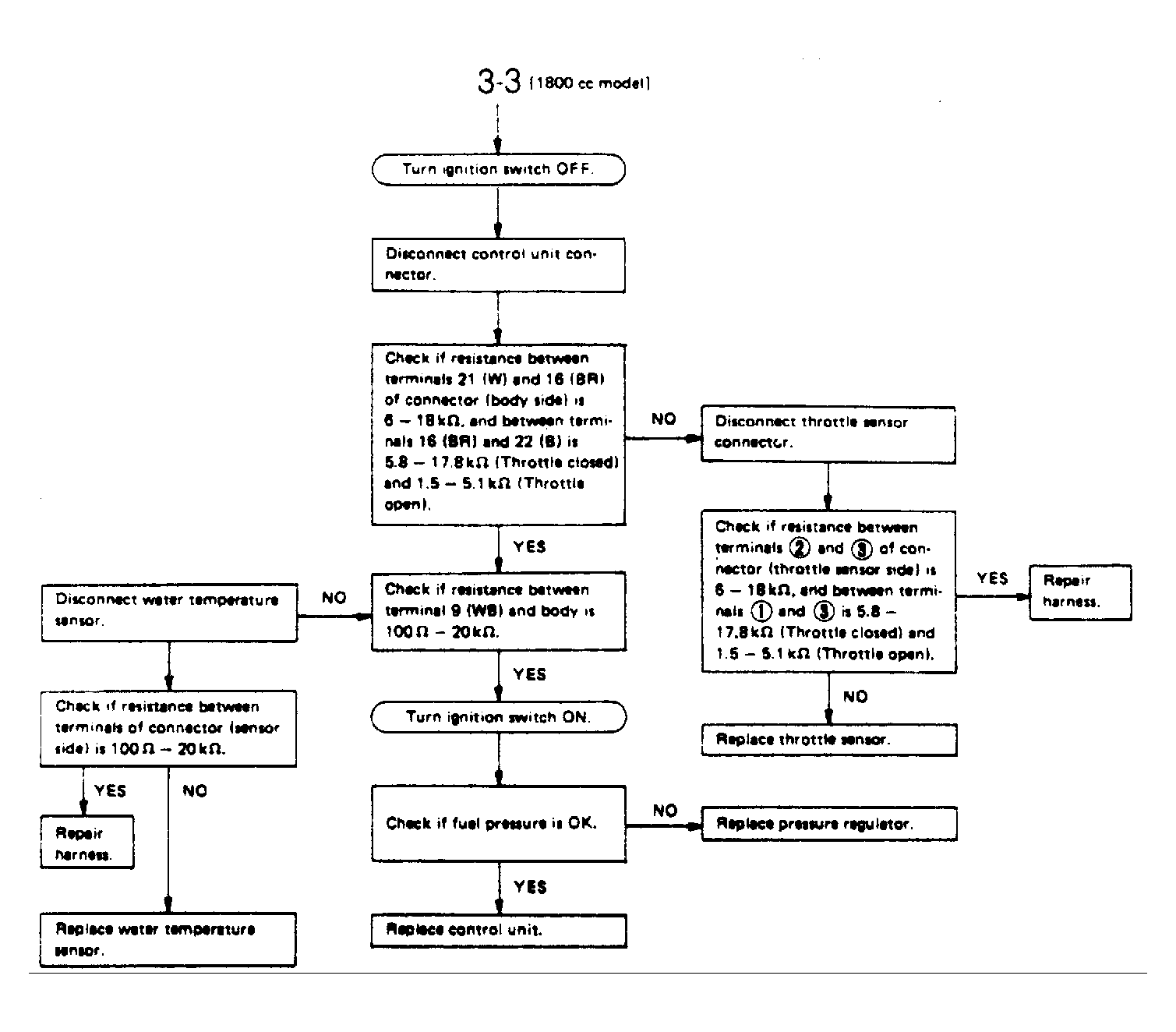

Fig 10: Fuel Pump Circuit (XT Model) (4 of 7)

G95675

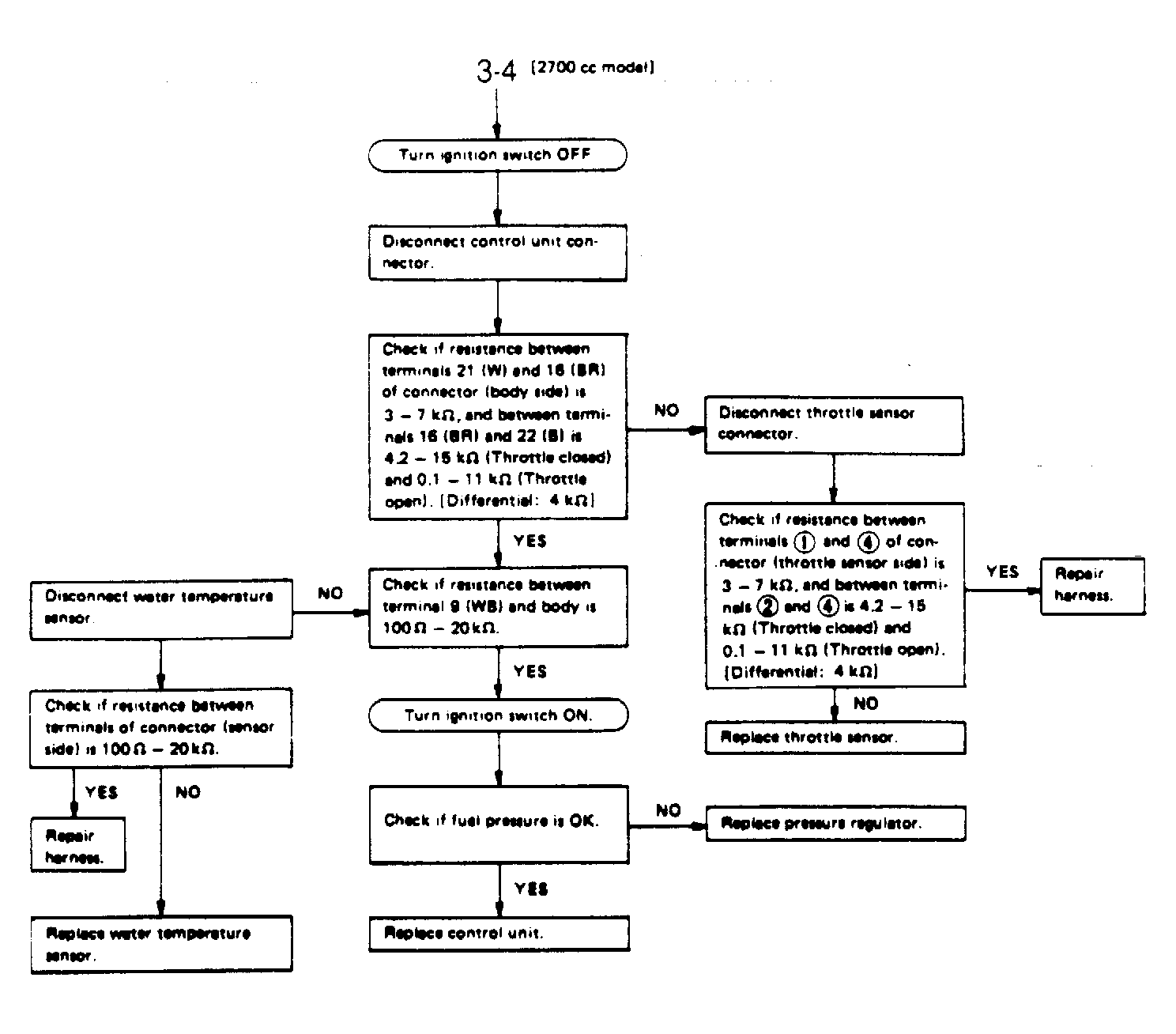

Fig 11: Fuel Pump Circuit (XT Model) (5 of 7)

G95113

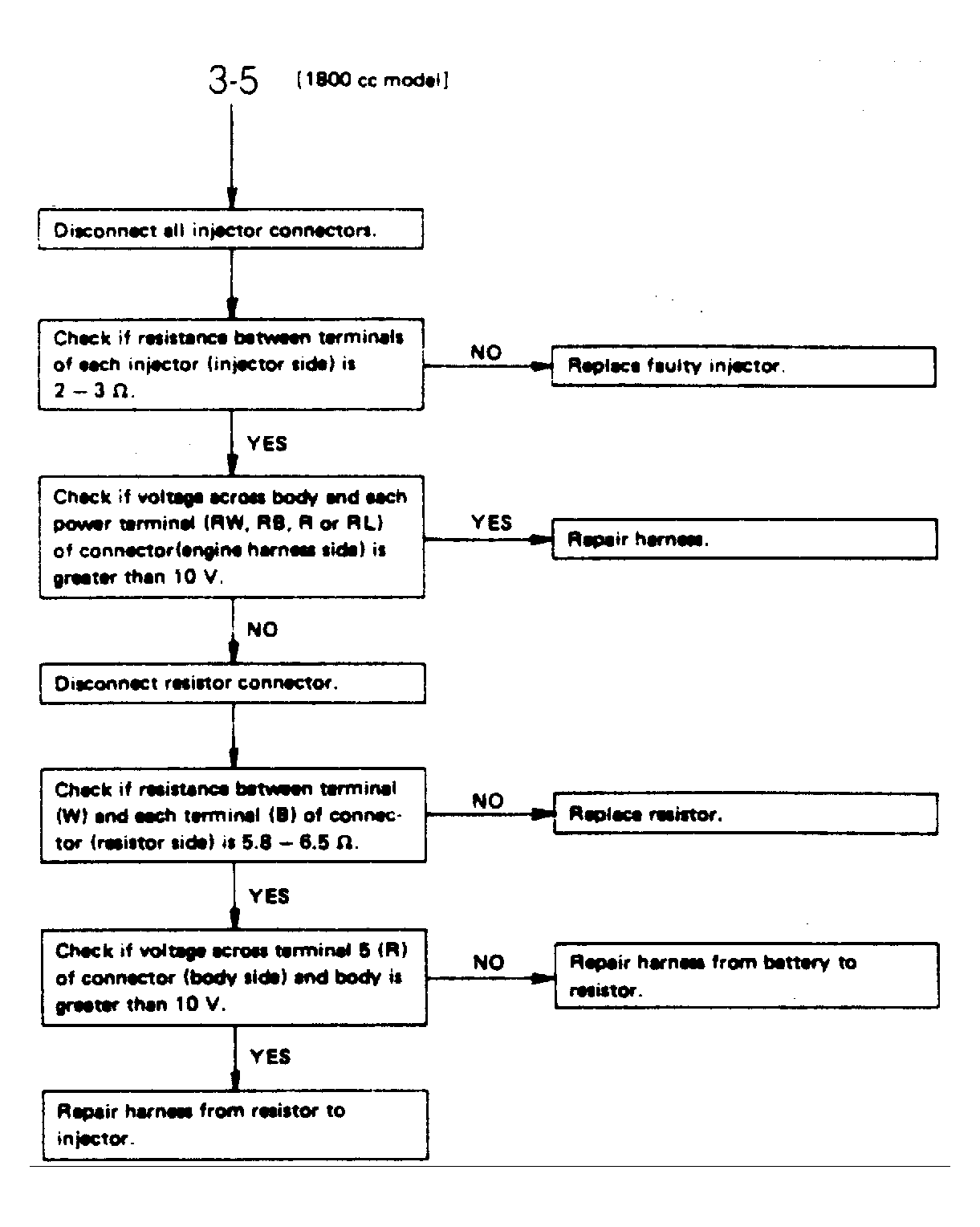

Fig 12: Fuel Pump Circuit (XT Model) (6 of 7)

G95676

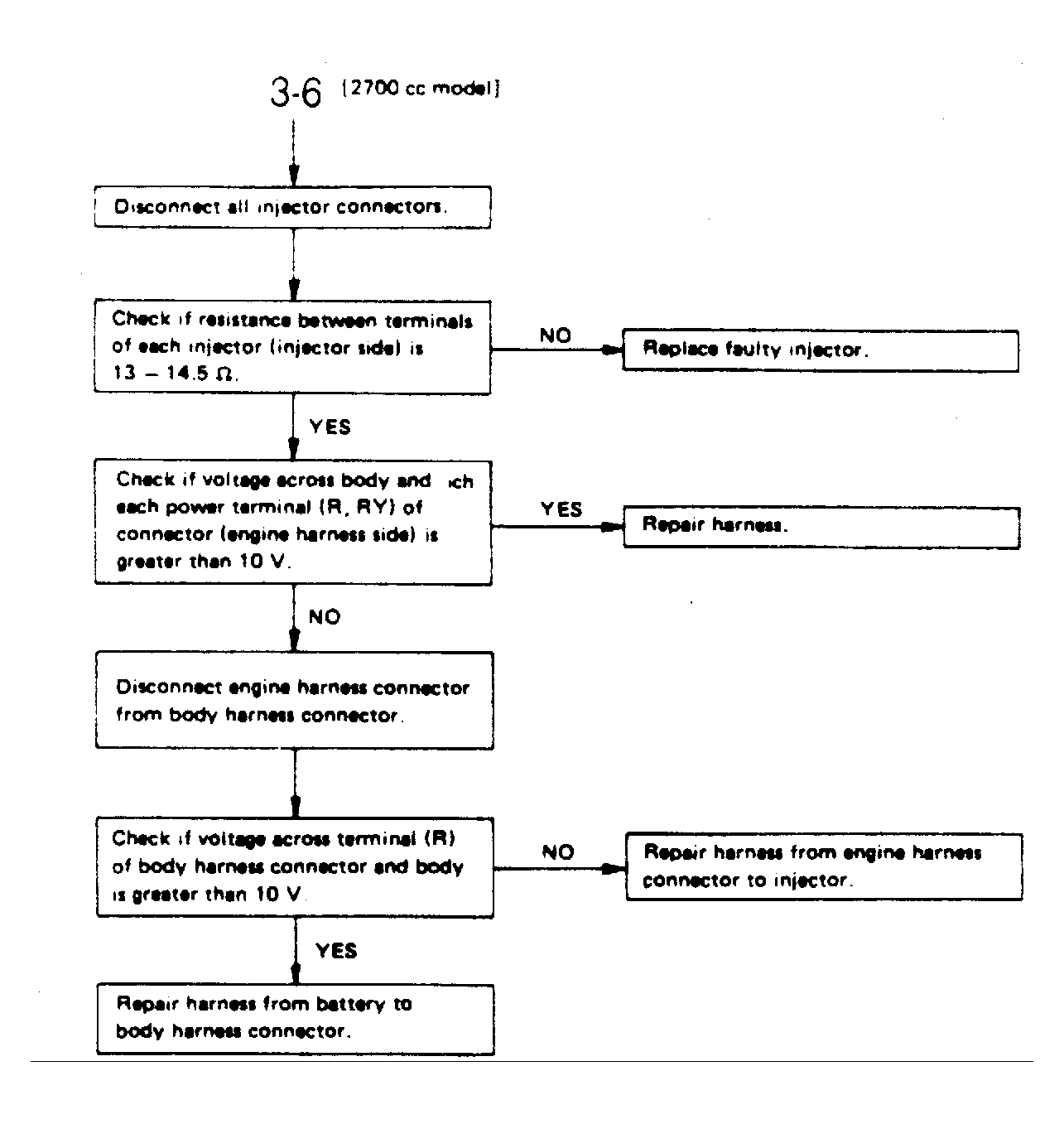

Fig 13: Fuel Pump Circuit (XT Model) (7 of 7)

G95677
